ZVG10L-GHXGB (2021)
Toyota Corolla Cross

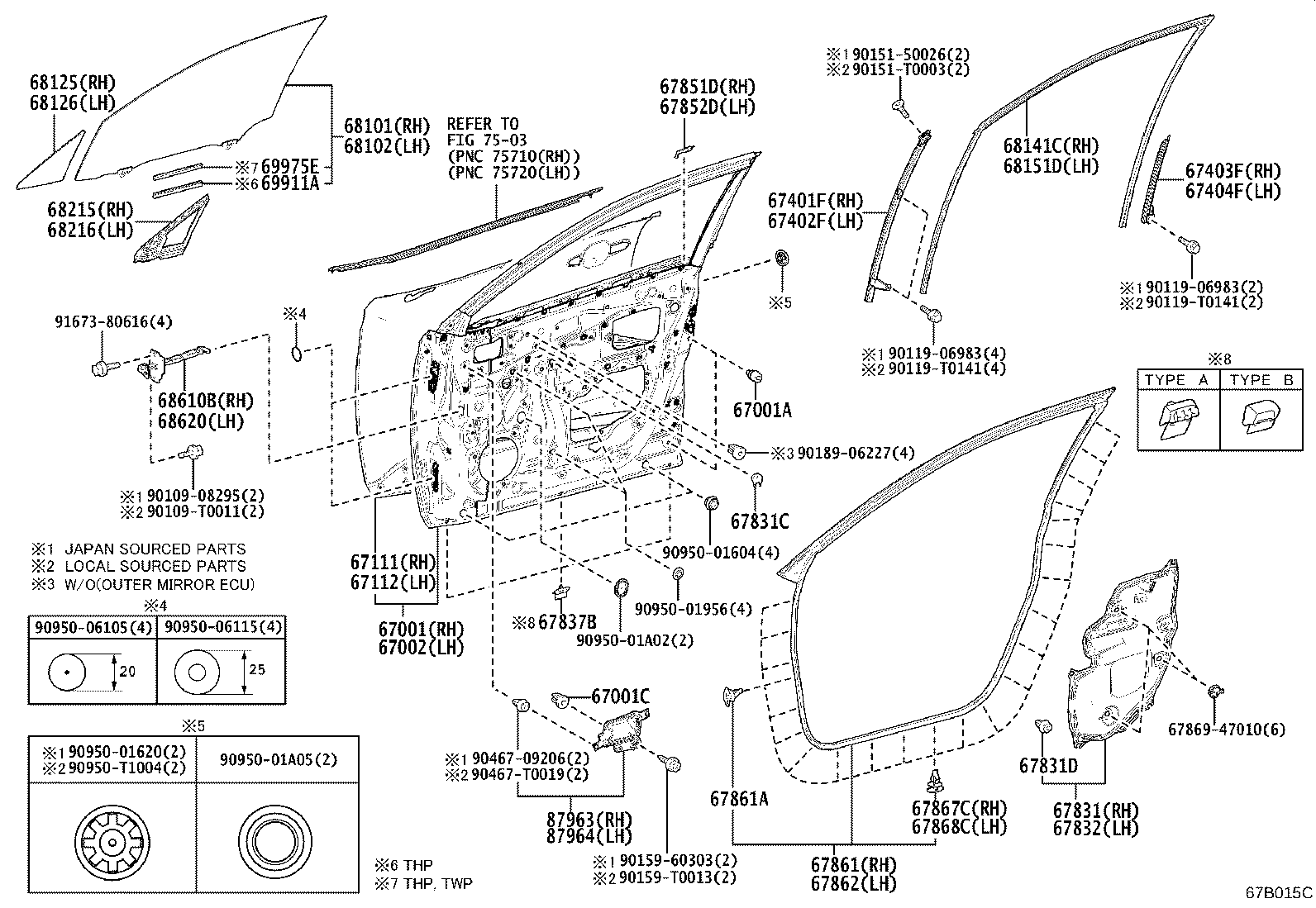

ILLUST NO. 1 OF 2(2007- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-K1010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 67001C - GROMMET(FOR FRONT DOOR PANEL) | ||||
| 90189-06197 |
MXGA10,ZVG10..BZP |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-K1010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-0A020 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-0A020 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 67831C - COVER, FRONT DOOR SERVICE HOLE | ||||
| 67833-47010 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-09206 |
MXGA10,ZSG10,ZVG10 |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-0K092 |
MXGA10,ZVG10..BZP |
6 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-0A010 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-0A010 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-52040 |
MXGA10,ZVG10..BZP |
2 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-0A020 |
MXGA10,ZVG10..BZP |
22 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-0A030 |
MXGA10,ZVG10..BZP |
22 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| Common parts | ||||
| 67869-47010 | ||||
| 90109-08295 | ||||
| 90109-T0011 | ||||
| 90119-06983 | ||||
| 90119-T0141 | ||||
| 90151-50026 | ||||
| 90151-T0003 | ||||
| 90159-60303 | ||||
| 90159-T0013 | ||||
| 90189-06227 | ||||
| 90467-09206 | ||||
| 90467-T0019 | ||||
| 90950-01604 | ||||
| 90950-01620 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 90950-01A05 | ||||
| 90950-06105 | ||||
| 90950-06115 | ||||
| 90950-T1004 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(2007- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0A310C2 |
ZVG10..BZP..E BLACK/FROMAGE,TRIM0# |
1 | ||
| 67610-0A290C2 |
MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) BLACK/FROMAGE,TRIM0# |
1 | ||
| 67610-0A290C3 |
MXGA10;ZVG10..BZP..G BLACK/BLACK,TRIM2# |
1 | ||
| 67610-0A310C3 |
ZVG10..BZP..E BLACK/BLACK,TRIM2# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0A310C2 |
ZVG10..BZP..E BLACK/FROMAGE,TRIM0# |
1 | ||
| 67620-0A290C2 |
MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) BLACK/FROMAGE,TRIM0# |
1 | ||
| 67620-0A290C3 |
MXGA10;ZVG10..BZP..G BLACK/BLACK,TRIM2# |
1 | ||
| 67620-0A310C3 |
ZVG10..BZP..E BLACK/BLACK,TRIM2# |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-0A010 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-0A010 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68193-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-0A010 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-0A010 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 69283D - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 74037-02030C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 74037-02080C0 |
MXGA10,ZVG10..BZP BLACK,TRIM2# |
1 | ||
| 74037-02080A0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) FROMAGE,TRIM0# |
1 | ||
| 69284F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 74038-02030C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 74038-02080A0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) FROMAGE,TRIM0# |
1 | ||
| 74038-02080C0 |
MXGA10,ZVG10..BZP BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90159-T0039 | ||||
| 90189-06248 | ||||
