ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

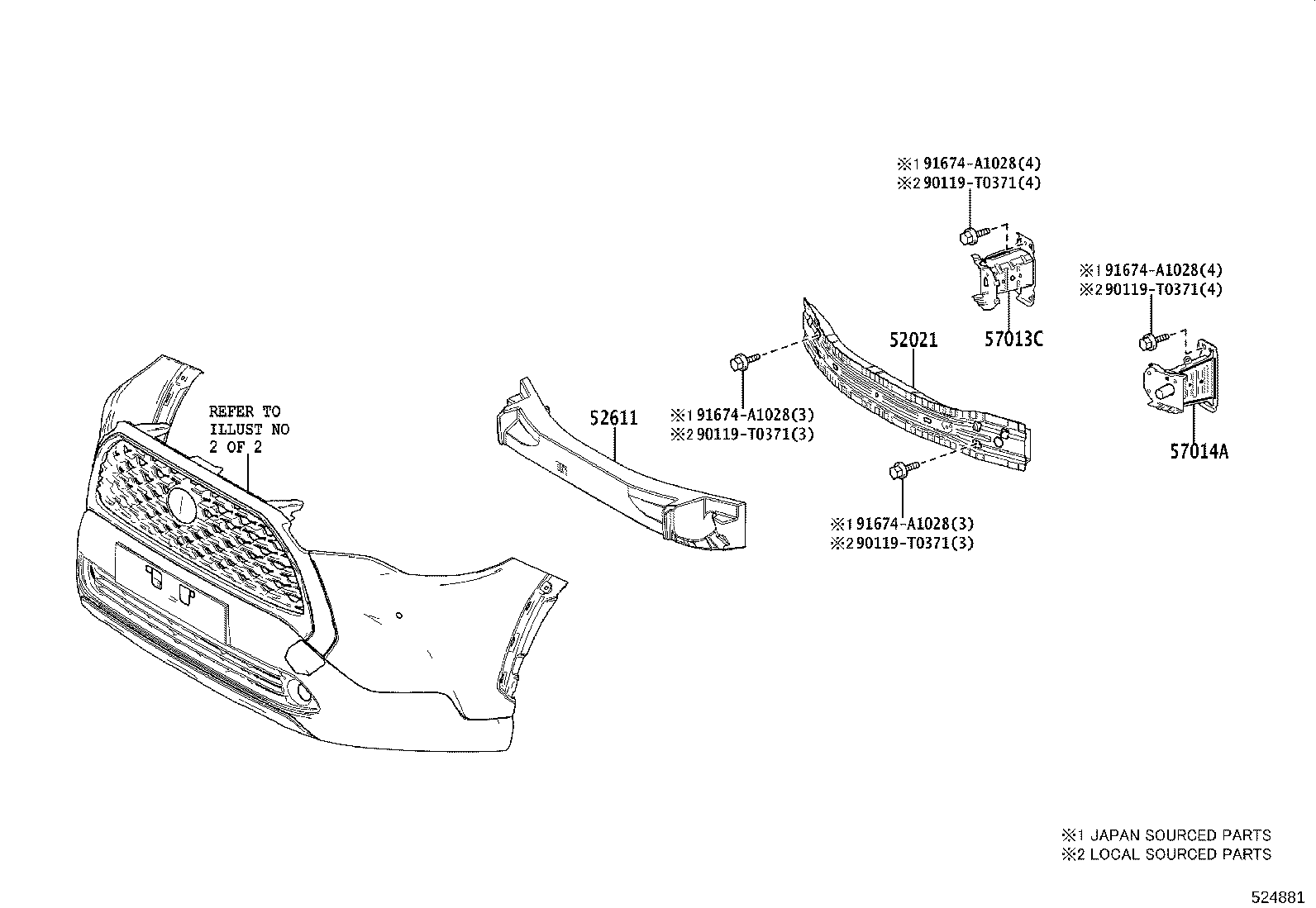

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

diagram 52021 52611 57013C 57014A 90119T0371 90119T0371 90119T0371 90119T0371 91674A1028 91674A1028 91674A1028 91674A1028
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02260

MXGA10,ZVG10..BZP

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-YY020

ZSG10,ZVG10..L,M

 1
52611-0A030

MXGA10,ZVG10..BZP

 1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-02240

MXGA10,ZVG10..BZP

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-02240

MXGA10,ZVG10..BZP

 1
Common parts
90119-T0371
91674-A1028

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

diagram 5102 5102 52111E 52112D 52113D 52129B 52535 52535 52535F 52535F 52536 52536 5302 53121E 53121E 53128E 75392K 75392K 75392K 75392K 76851G 76851G 81481E 81482C 9015950311 9015950311 90159T0009 90159T0009 9016750063 9016750063 9016750063 9017906349 9018305050 9018305050
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-0A902

MXGA10,ZVG10..BZP

PAINT REQ.

 1
52111-YY020

ZSG10,ZVG10..L,M

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-0A903

ZVG10..BZP..GEN

PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT

 1
52112-0A900

ZVG10..IDN,TH;ZVG10..N..GEN;ZSG10..LHD..THP..(G,N);ZSG10..RHD..(GEN,IDN,TH)

PAINT REQ.

 1
52112-0A903

ZVG10..BZP..GEN

PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
52112-0A903

ZVG10..BZP..GEN

PAINT REQ.,CHILE SPEC&ACTIVE SAFETY PACKAGE-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
52112-0A904

ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

PAINT REQ.

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-0A903

ZVG10..BZP..GEN

PAINT REQ.,CHILE SPEC&ACTIVE SAFETY PACKAGE-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
52113-0A900

ZVG10..IDN,TH;ZVG10..N..GEN;ZSG10..LHD..THP..(G,N);ZSG10..RHD..(GEN,IDN,TH)

PAINT REQ.

 1
52113-0A903

ZVG10..BZP..GEN

PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
52113-0A904

ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

PAINT REQ.

 1
52113-0A903

ZVG10..BZP..GEN

PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-0A030

MXGA10,ZVG10..BZP

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0A030

MXGA10,ZVG10..BZP

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0A030

MXGA10,ZVG10..BZP

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0A030

MXGA10,ZVG10..BZP

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0A030

MXGA10,ZVG10..BZP

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-07215

MXGA10,ZVG10..BZP

TYPE A:REFER ILLUST.

 2
90467-07220

MXGA10,ZVG10..BZP

TYPE B:REFER ILLUST.

 2
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-07215

MXGA10,ZVG10..BZP

TYPE A:REFER ILLUST.

 2
90467-07220

MXGA10,ZVG10..BZP

TYPE B:REFER ILLUST.

 2
53128E - GRILLE, RADIATOR, LOWER SIDE LH
53128-YY040B0

ZSG10,ZVG10..L,M

SILVER ME.,2KS

 1
53128-YY040D0

ZSG10,ZVG10..L,M

RED M.M.,2NU

 1
53128-0A030

MXGA10,ZVG10..BZP

 1
53128-YY040A0

ZSG10,ZVG10..L,M

SUPER WHITE 2,2NR

 1
53128-YY040B1

ZSG10,ZVG10..L,M

GRAY ME.,2MB

 1
75392K - RETAINER, OUTSIDE MOULDING, NO.2
75392-35220

ZSG10,ZVG10..L,M

 4
75392K - RETAINER, OUTSIDE MOULDING, NO.2
75392-35220

ZSG10,ZVG10..L,M

 4
75392K - RETAINER, OUTSIDE MOULDING, NO.2
75392-35220

ZSG10,ZVG10..L,M

 4
75392K - RETAINER, OUTSIDE MOULDING, NO.2
75392-35220

ZSG10,ZVG10..L,M

 4
76851G - GROMMET, SCREW, NO.1
90189-06237

MXGA10,ZSG10,ZVG10

 2
76851G - GROMMET, SCREW, NO.1
90189-06237

MXGA10,ZSG10,ZVG10

 2
81481E - COVER, FOG LAMP, RH
81481-0A020

ZVG10..N..GEN;ZVG10..THP..(E,G);ZSG10..N..(PH,VN);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
81481-0A050

MXGA10,ZVG10..BZP

 1
81482C - COVER, FOG LAMP, LH
81482-0A050

MXGA10,ZVG10..BZP

 1
81482-0A020

ZVG10..N..GEN;ZVG10..THP..(E,G);ZSG10..N..(PH,VN);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
Common parts
90159-50311
90159-T0009
90167-50063
90179-06349
90183-05050
Linked diagrams
5102
5302
