ZVG10L-GHXGB (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )ZVG10..BZP,TWP

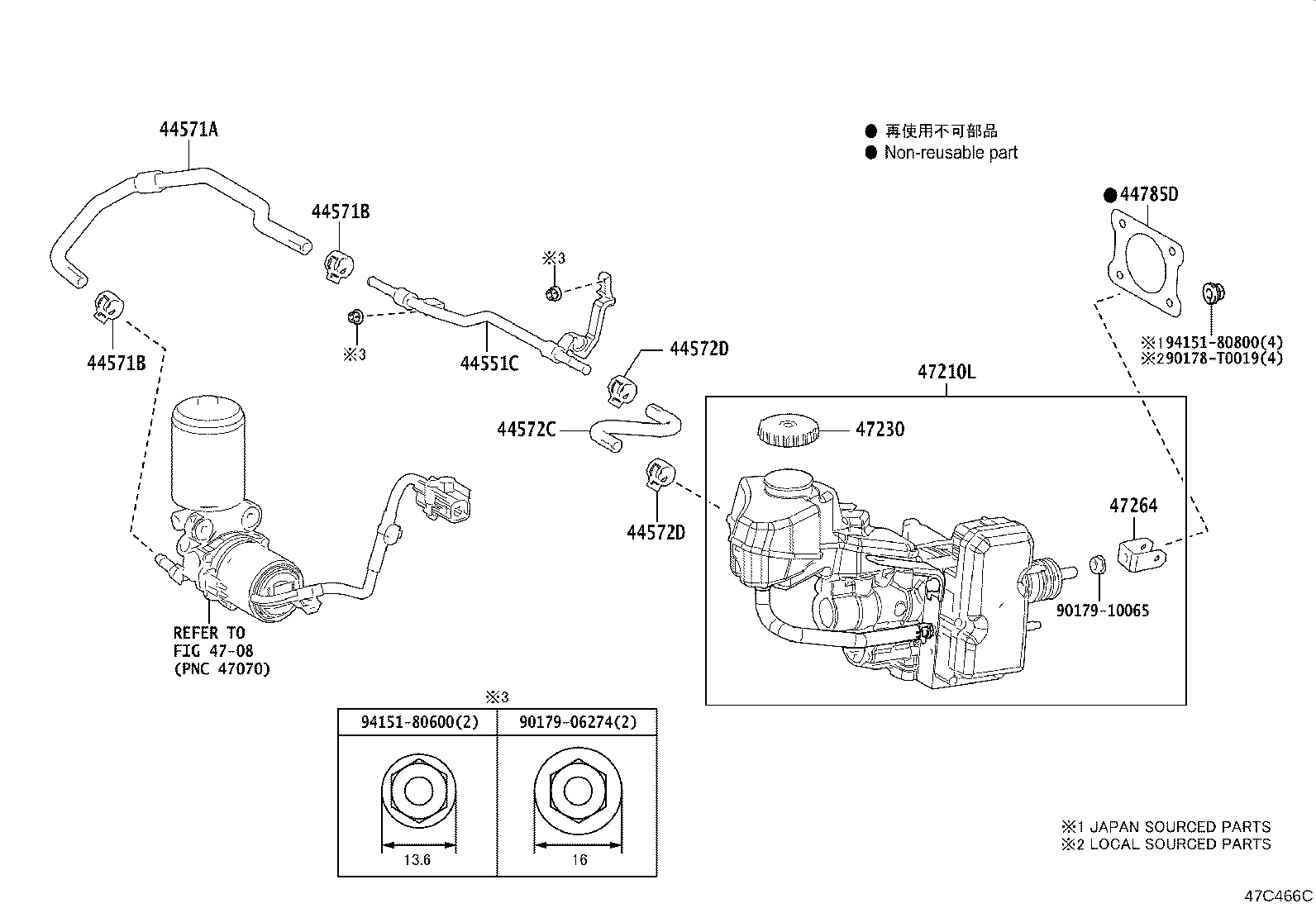

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-47050 |
ZVG10..BZP |
1 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-12040 |
ZVG10 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-16020 |
ZVG10..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
ZVG10 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
ZVG10 |
1 | ||
| Common parts | ||||
| 90178-T0019 | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
