ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )ZVG10..LHD

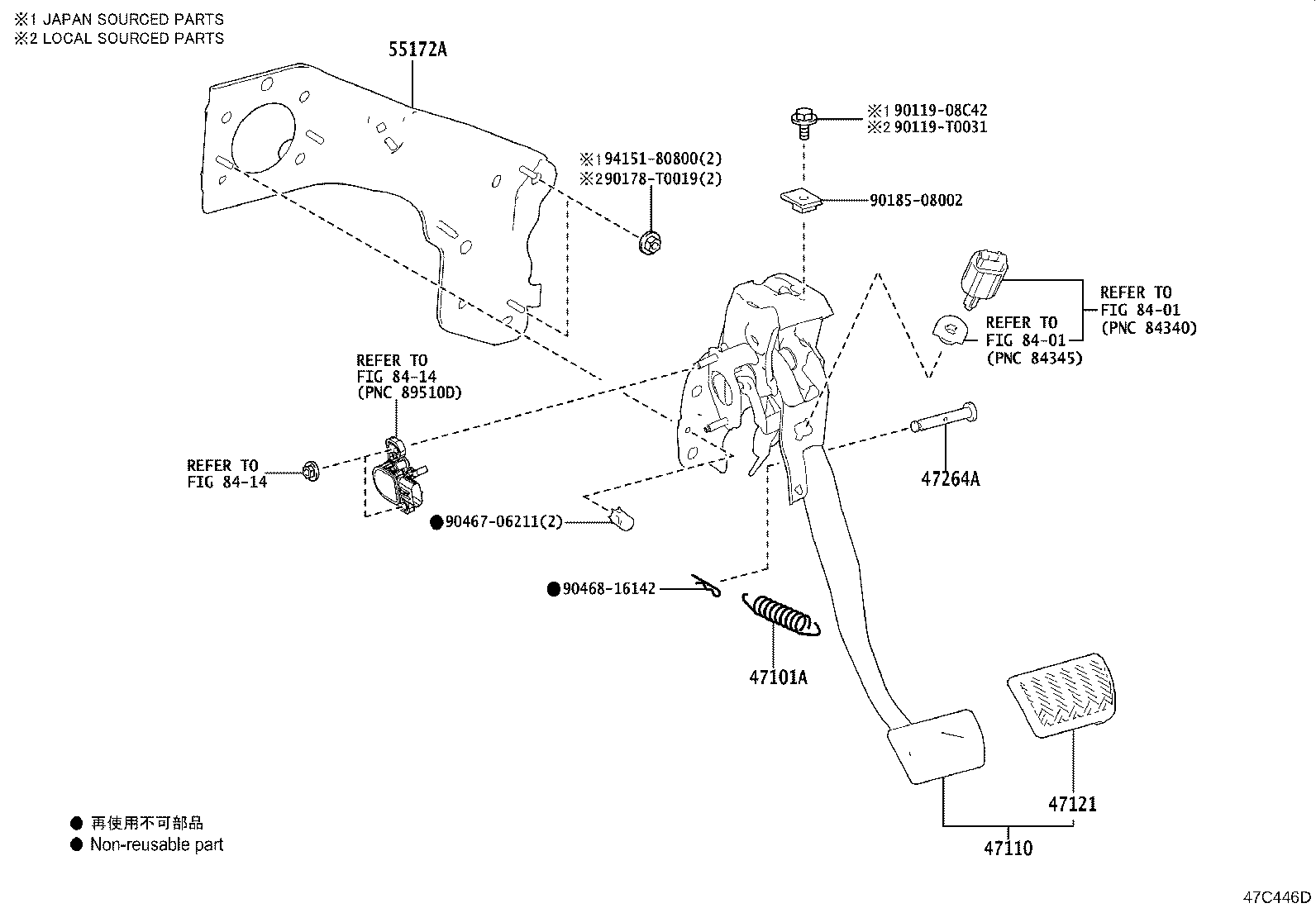

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 55172A 8401 8401 8414 8414 9011908C42 90119T0031 90178T0019 9018508002 9046706211 9046816142 9415180800
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-16030

ZVG10

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-0A080

ZVG10..LHD

 1
47121 - PAD, BRAKE PEDAL
47121-02150

ZSG10,ZVG10..LHD

 1
47264A - PIN(FOR PUSH ROD)
90249-08221

MXGA10,ZSG10,ZVG10

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-0A040

MXGA10,ZVG10..BZP

 1
Common parts
90119-08C42
90119-T0031
90178-T0019
90185-08002
90467-06211
90468-16142
94151-80800
Linked diagrams
8401
8414
