ZVG10L-GHXGB (2021)
Toyota Corolla Cross

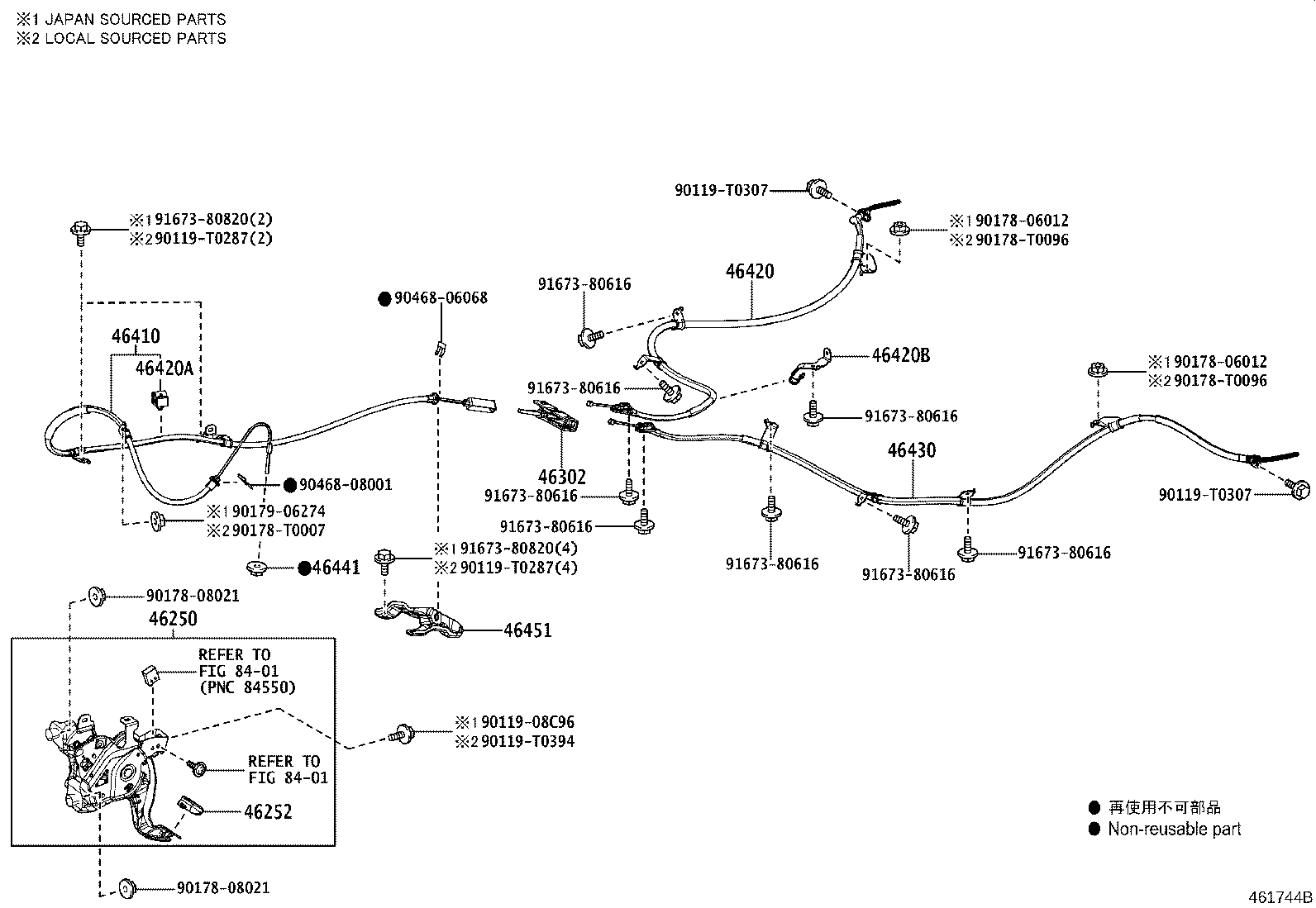

ILLUST NO. 1 OF 2(2007- )LHD
CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46250 - PEDAL ASSY, PARKING BRAKE W/O CABLE | ||||
| 46250-0A010 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 | ||||
| 46302-0A010 |
MXGA10,ZVG10..BZP |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-0A020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46421-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-0A020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90177-06003 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-0A110 |
MXGA10,ZVG10..BZP |
1 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90119-T0287 | ||||
| 90119-T0307 | ||||
| 90119-T0394 | ||||
| 90178-06012 | ||||
| 90178-08021 | ||||
| 90178-T0007 | ||||
| 90178-T0096 | ||||
| 90179-06274 | ||||
| 90468-06068 | ||||
| 90468-08001 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

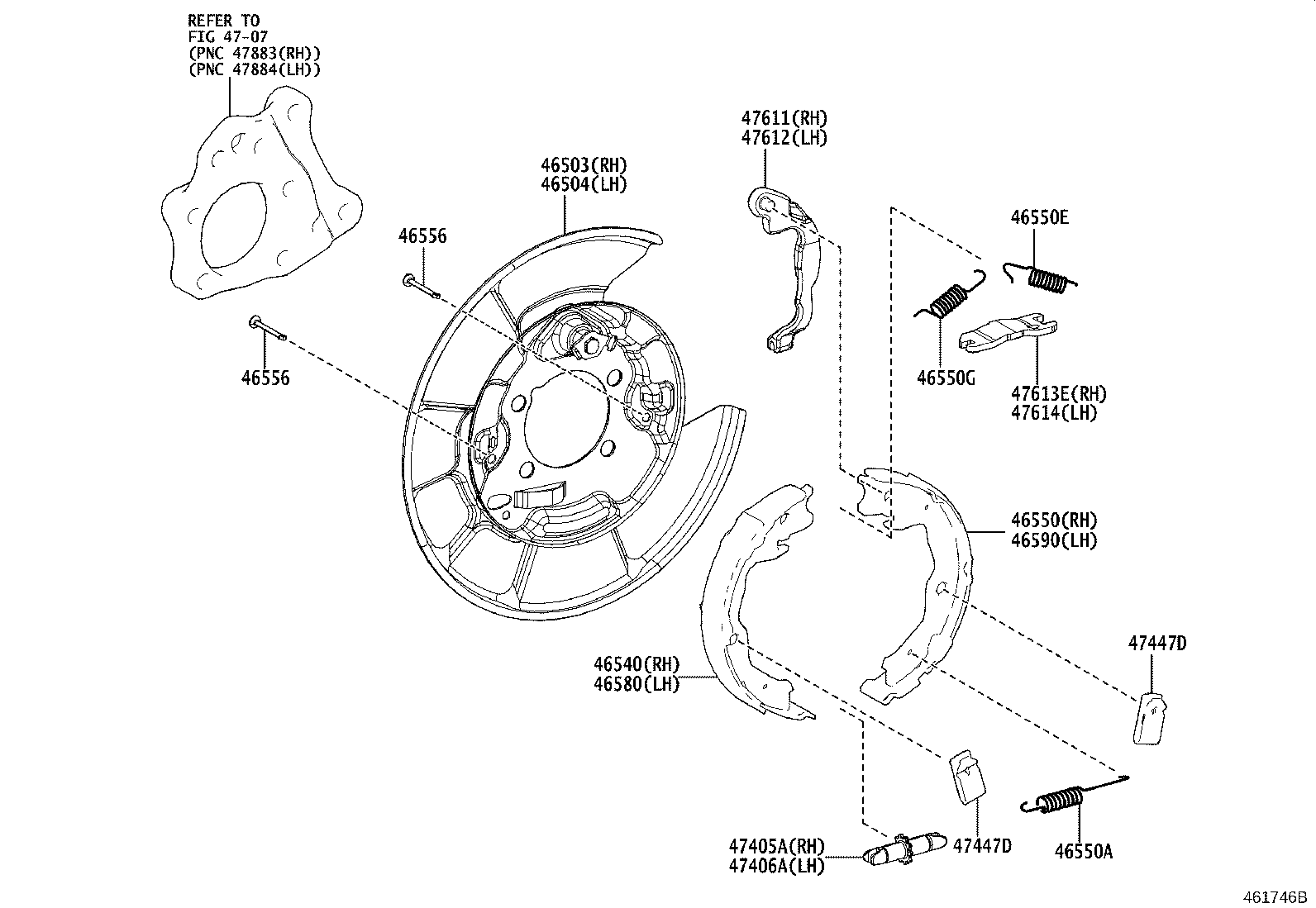

ILLUST NO. 2 OF 2(2007- )
BRAKE SHOE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46540-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06046 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90015-DY006 |
MXGA10,ZSG10,ZVG10 LH |
1 | ||
| 90015-DY005 |
MXGA10,ZSG10,ZVG10 RH |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06043 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-0A010 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-0A010 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46540-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 46605-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 46606-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-32010 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-32010 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46601-42040 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46602-42040 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 46612-42040 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 46622-42040 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| Linked diagrams | ||||
| 4707 | ||||
