ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )ZVG10

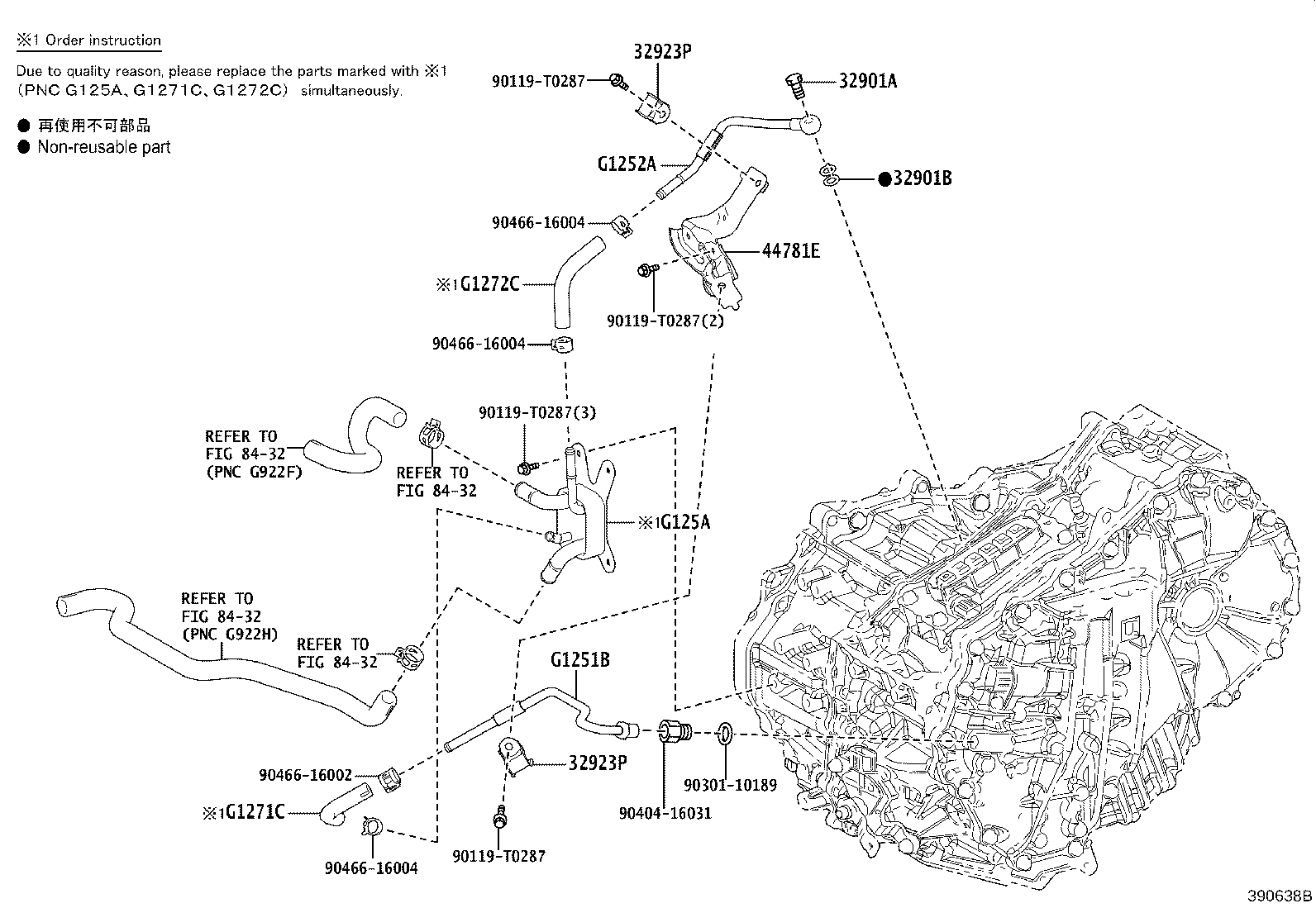

Click highlighted areas on diagram

diagram 32901A 32901B 32923P 32923P 44781E 8432 8432 8432 8432 90119T0287 90119T0287 90119T0287 90119T0287 9030110189 9040416031 9046616002 9046616004 9046616004 9046616004 G1251B G1252A G125A G1271C G1272C
Part # Description Qty Price
32901A - BOLT, UNION(FOR OIL COOLER)
90401-12039

ZVG10

 1
32901B - GASKET(FOR OIL COOLER UNION)
90430-12037

ZVG10

 1
32923P - CLAMP, OIL COOLER TUBE, NO.1
32923-52040

ZVG10

 2
32923P - CLAMP, OIL COOLER TUBE, NO.1
32923-52040

ZVG10

 2
44781E - BRACKET, HOSE
44781-47010

ZVG10

 1
G1251B - PIPE, MOTOR COOLING, NO.1
G1251-47010

ZVG10

 1
G1252A - PIPE, MOTOR COOLING, NO.2
G1252-47010

ZVG10

 1
G125A - COOLER, MOTOR COOLING
G125A-47010

ZVG10

 1
G1271C - HOSE, MOTOR COOLING, NO.1
G1271-47010

ZVG10

 1
G1272C - HOSE, MOTOR COOLING, NO.2
G1272-47010

ZVG10

 1
Common parts
90119-T0287
90301-10189
90404-16031
90466-16002
90466-16004
Linked diagrams
8432
