ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZRFXE

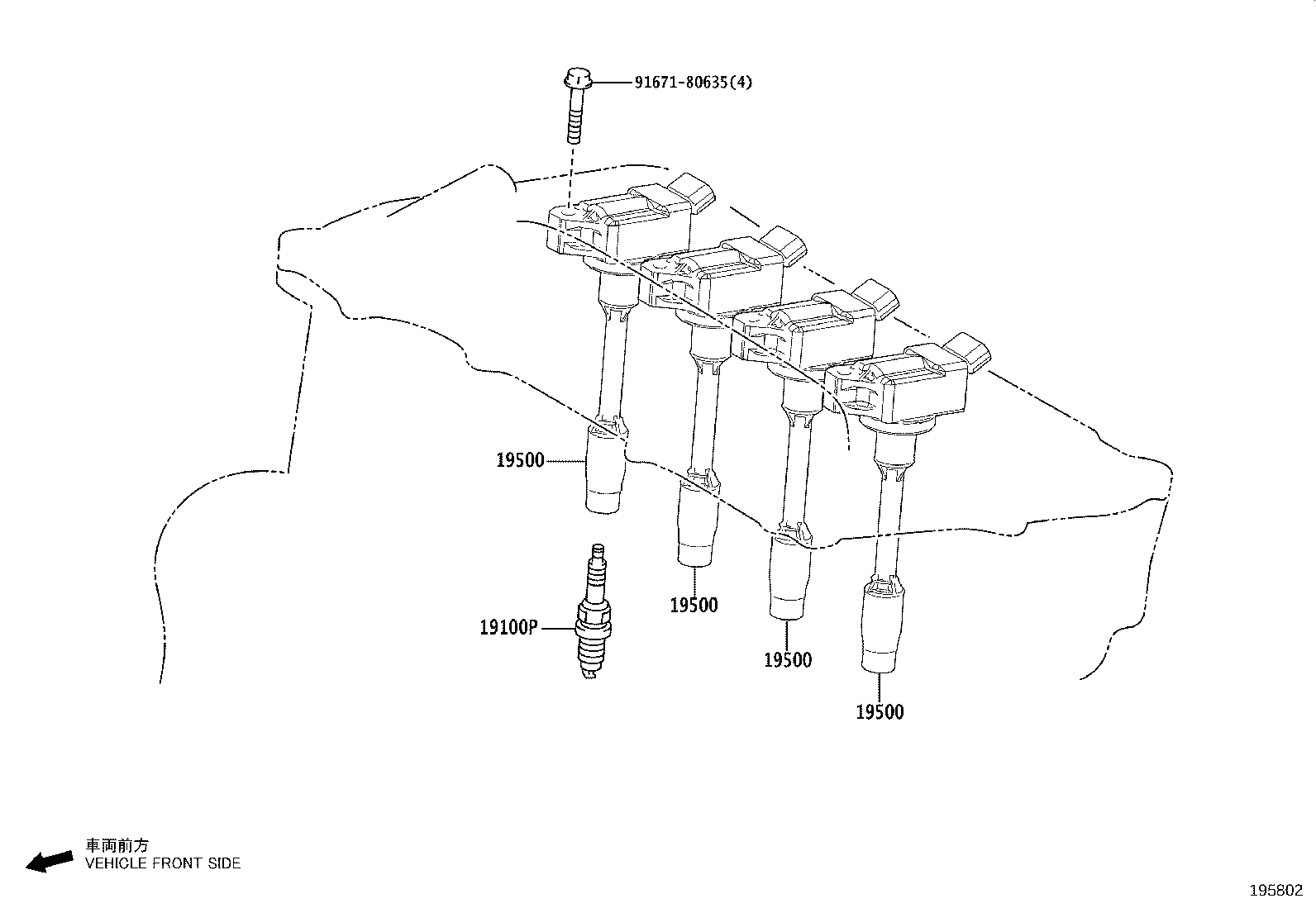

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19500 9167180635
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01256

2ZRFXE..ZVG10..BZP..GEN

FC22HR9,PARAGUAY SPEC

 4
90919-01298

2ZRFXE..ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN

FC16HR-CY9

 4
90919-01256

2ZRFXE..ZVG10..BZ

FC22HR9

 4
19500 - COIL ASSY, IGNITION
90919-02272

2ZRFXE..ZVG10

 4
19500 - COIL ASSY, IGNITION
90919-02272

2ZRFXE..ZVG10

 4
19500 - COIL ASSY, IGNITION
90919-02272

2ZRFXE..ZVG10

 4
19500 - COIL ASSY, IGNITION
90919-02272

2ZRFXE..ZVG10

 4
Common parts
91671-80635
