ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZRFXE..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN

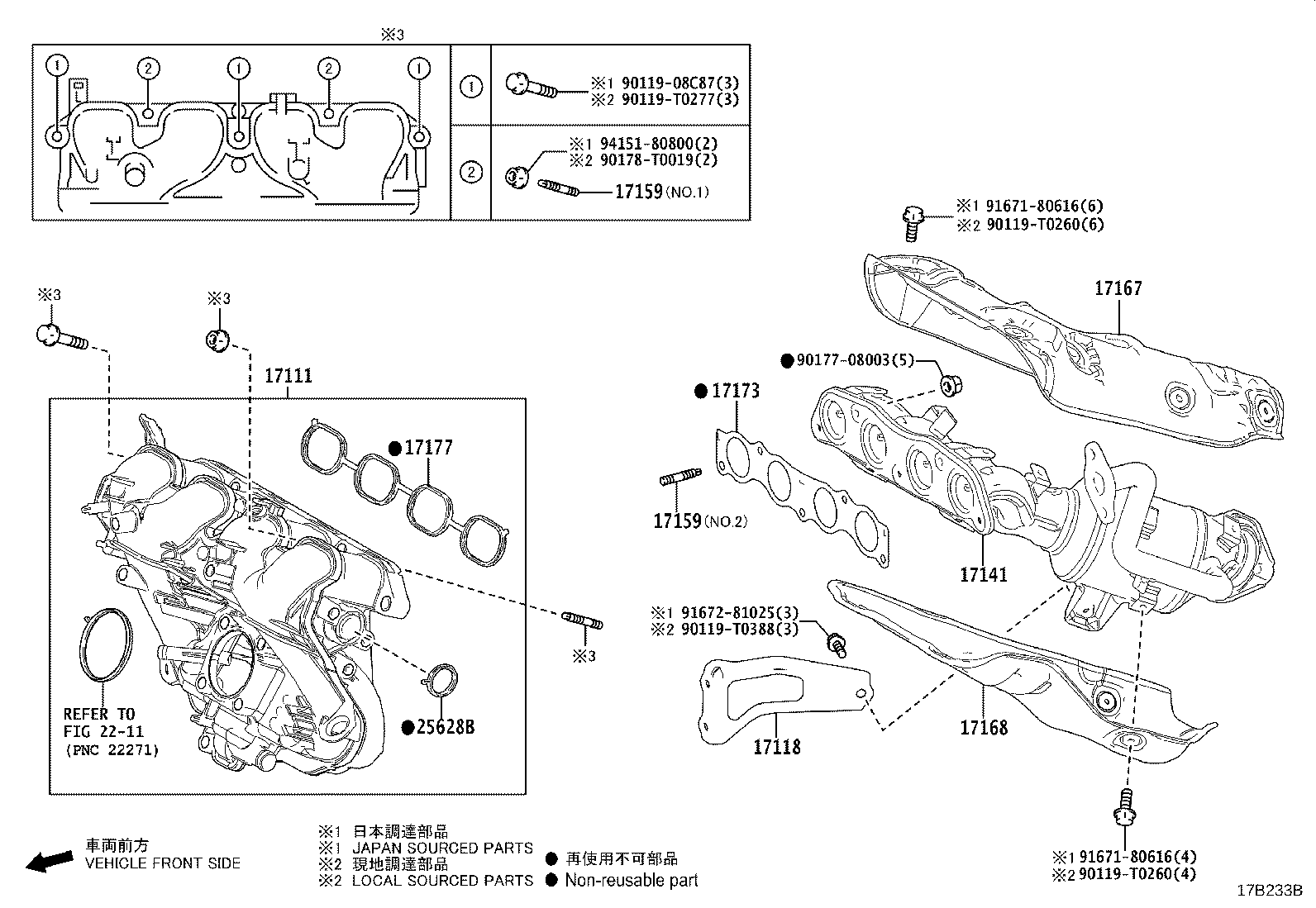

Click highlighted areas on diagram

PNC17141=TYPEA

diagram 17111 17118 17141 17159 17159 17167 17168 17173 17177 2211 25628B 9011908C87 90119T0260 90119T0260 90119T0277 90119T0388 9017708003 90178T0019 9167180616 9167180616 9167281025 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-37110

2ZRFXE..ZVG10..BZP..(AGT,GEN)

 1
17120-37120

2ZRFXE..ZVG10..BZP..GEN

PARAGUAY SPEC

 1
17120-37120

2ZRFXE..ZVG10..BZ

 1
17118 - STAY, MANIFOLD
17118-37090

2ZRFXE..ZVG10..BZP

 1
17141 - MANIFOLD, EXHAUST
17141-37190

2ZRFXE..ZVG10..BZP..GEN

PARAGUAY SPEC,TYPE B

 1
17141-37190

2ZRFXE..ZVG10..BZ

TYPE B

 1
17141-37210

2ZRFXE..ZVG10..BZP..(AGT,GEN)

*114=TOYOTA/AT37180Y,TYPE A

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2ZRFXE..ZVG10..BZP

NO.2

 5
90126-08026

2ZRFXE..ZVG10..BZP

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2ZRFXE..ZVG10..BZP

NO.2

 5
90126-08026

2ZRFXE..ZVG10..BZP

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37040

2ZRFXE..ZVG10..BZP

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37120

2ZRFXE..ZVG10..BZP

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

2ZRFXE..ZVG10..BZP

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37040

2ZRFXE..ZVG10..BZ

 1
17177-37030

2ZRFXE..ZVG10..BZP..(AGT,GEN)

 1
17177-37040

2ZRFXE..ZVG10..BZP..GEN

PARAGUAY SPEC

 1
25628B - GASKET, EGR INLET
25628-36020

2ZRFXE..ZVG10

 1
Common parts
90119-08C87
90119-T0260
90119-T0277
90119-T0388
90177-08003
90178-T0019
91671-80616
91672-81025
94151-80800
Linked diagrams
2211
