ZVG10L-GHXGB (2021)
Toyota Corolla Cross
(2007- )2ZRFXE

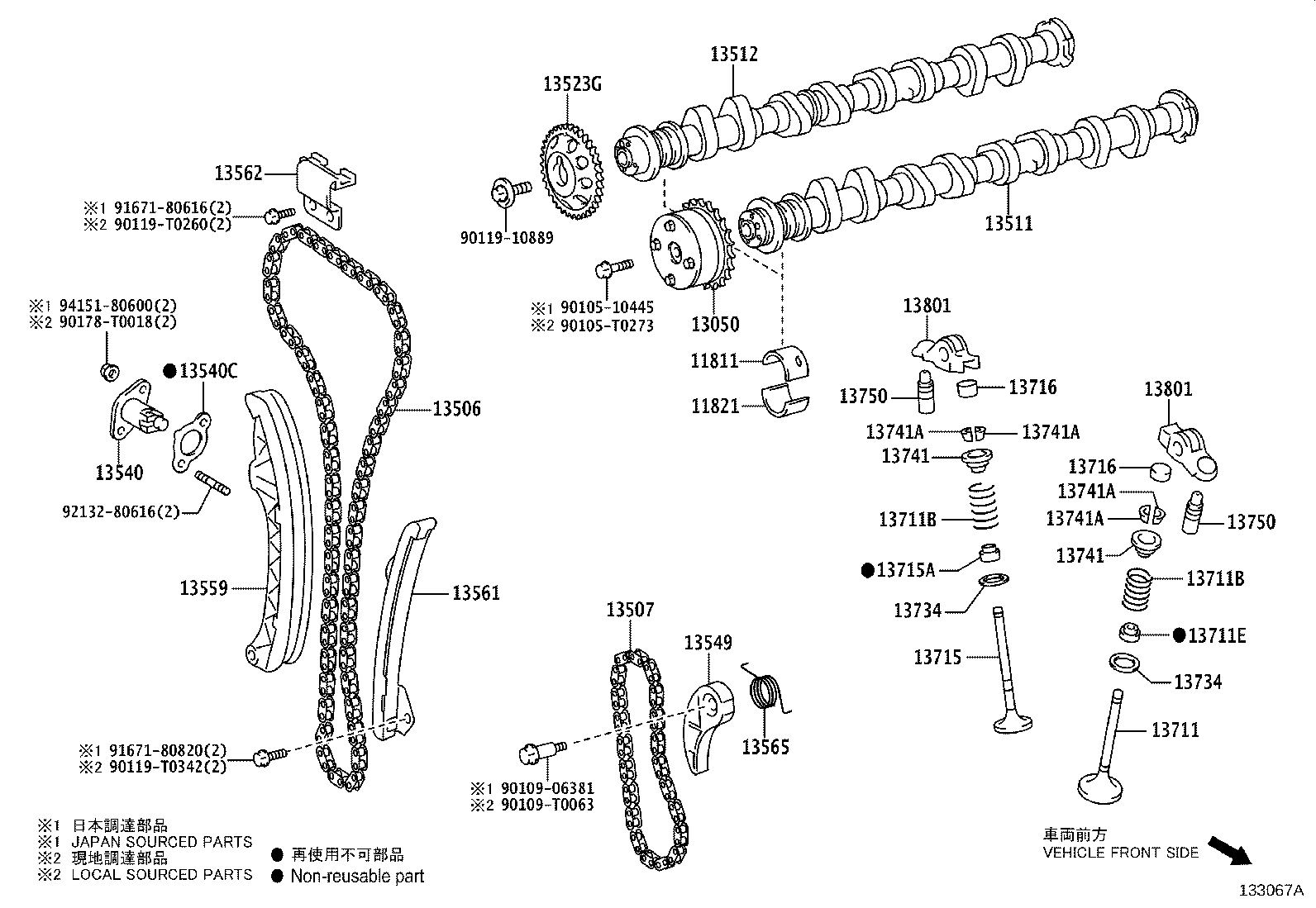

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11811 - BEARING, CAMSHAFT, NO.1 | ||||
| 11811-37020 |
2ZRFXE..ZVG10 |
2 | ||
| 11821 - BEARING, CAMSHAFT, NO.2 | ||||
| 11821-37020 |
2ZRFXE..ZVG10 |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-37050 |
2ZRFXE..ZVG10 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-37070 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-28010 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-37080 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-37070 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13523G - SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22020 |
2ZRFXE..ZVG10 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-37030 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-37010 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-37020 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-37050 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-37050 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-37020 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-37010 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-37020 |
2ZRFXE..ZVG10..BZP..(AGT,GEN) |
8 | ||
| 13711-37031 |
2ZRFBE..ZSG10;2ZRFXE..ZVG10..BZ |
8 | ||
| 13711-37031 |
2ZRFXE..ZVG10..BZP..GEN PARAGUAY SPEC |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-30039 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-30039 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2ZRFXE..ZVG10..BZP |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-37060 |
2ZRFXE..ZVG10..BZP..GEN PARAGUAY SPEC |
8 | ||
| 13715-37060 |
2ZRFXE..ZVG10..BZ |
8 | ||
| 13715-37030 |
2ZRFXE..ZVG10..BZP..(AGT,GEN) |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2ZRFXE..ZVG10..BZP |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2ZR#..ZSG10,ZVG10 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2ZR#..ZSG10,ZVG10 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2ZR#..ZSG10,ZVG10 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2ZR#..ZSG10,ZVG10 |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-21010 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-21010 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2ZRFXE..ZVG10..BZP |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
2ZRFXE..ZVG10..BZP |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90105-T0273 | ||||
| 90109-06381 | ||||
| 90109-T0063 | ||||
| 90119-10889 | ||||
| 90119-T0260 | ||||
| 90119-T0342 | ||||
| 90178-T0018 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
