ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZRFXE

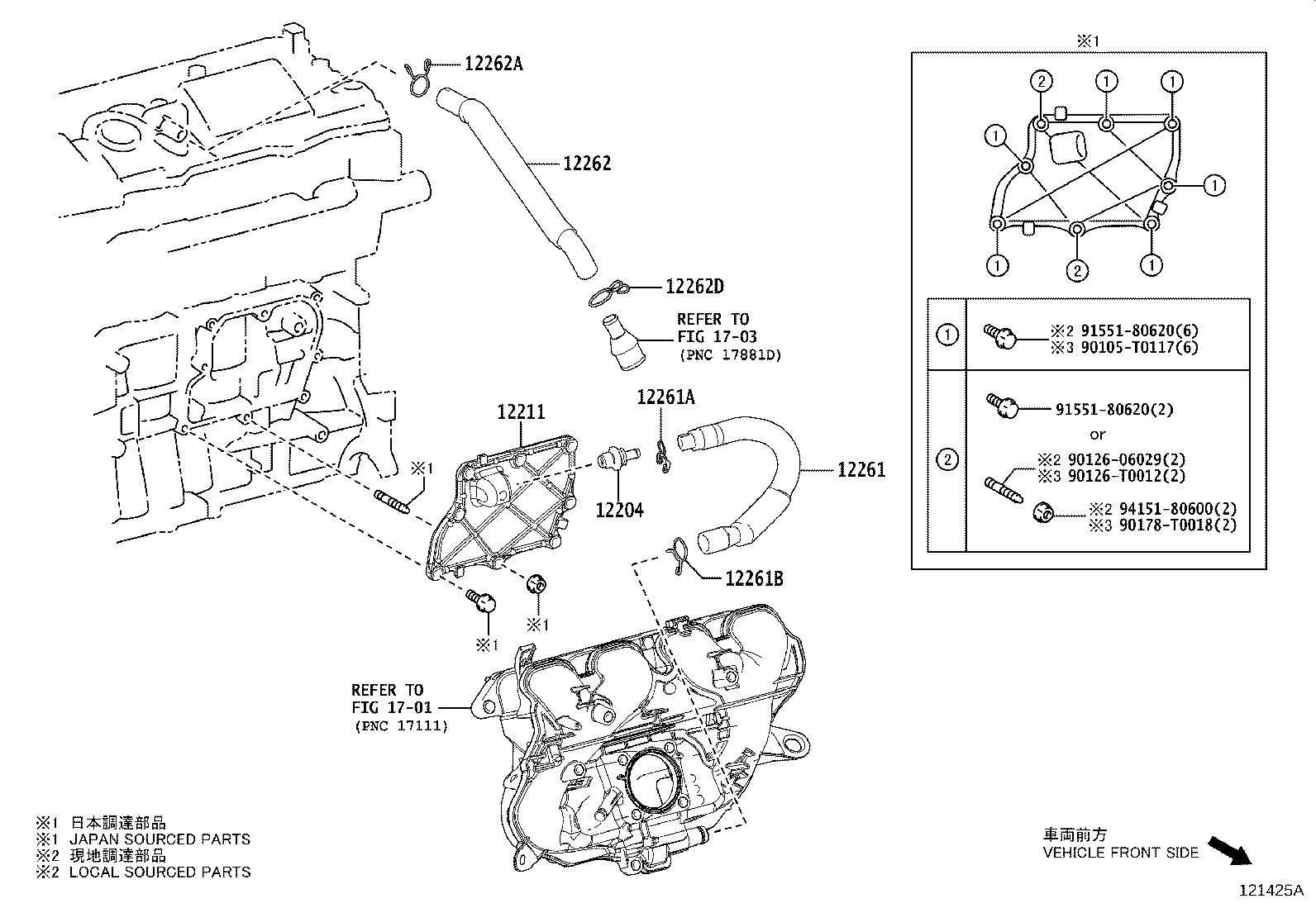

Click highlighted areas on diagram

diagram 12204 12211 12261 12261A 12261B 12262 12262A 12262D 1701 1703 90105T0117 9012606029 90126T0012 90178T0018 9155180620 9155180620 9415180600
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-37070

2ZRFXE..ZVG10..BZP

 1
12211 - CASE, VENTILATION, NO.1
12211-37010

2ZRFXE..ZVG10..BZP

 1
12261 - HOSE, VENTILATION
12261-37070

2ZRFXE..ZVG10

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2ZR#..ZSG10,ZVG10

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90466-22005

2ZRFXE..ZVG10

 1
12262 - HOSE, VENTILATION, NO.2
12262-37100

2ZRFXE..ZVG10..BZP..GEN

PARAGUAY SPEC

 1
12262-37060

2ZRFXE..ZVG10..BZP..(AGT,GEN)

 1
12262-37100

2ZRFXE..ZVG10..BZ

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2ZRFXE..ZVG10..BZP

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2ZRFXE..ZVG10..BZP

 1
Common parts
90105-T0117
90126-06029
90126-T0012
90178-T0018
91551-80620
94151-80600
Linked diagrams
1701
1703
