ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZRFXE

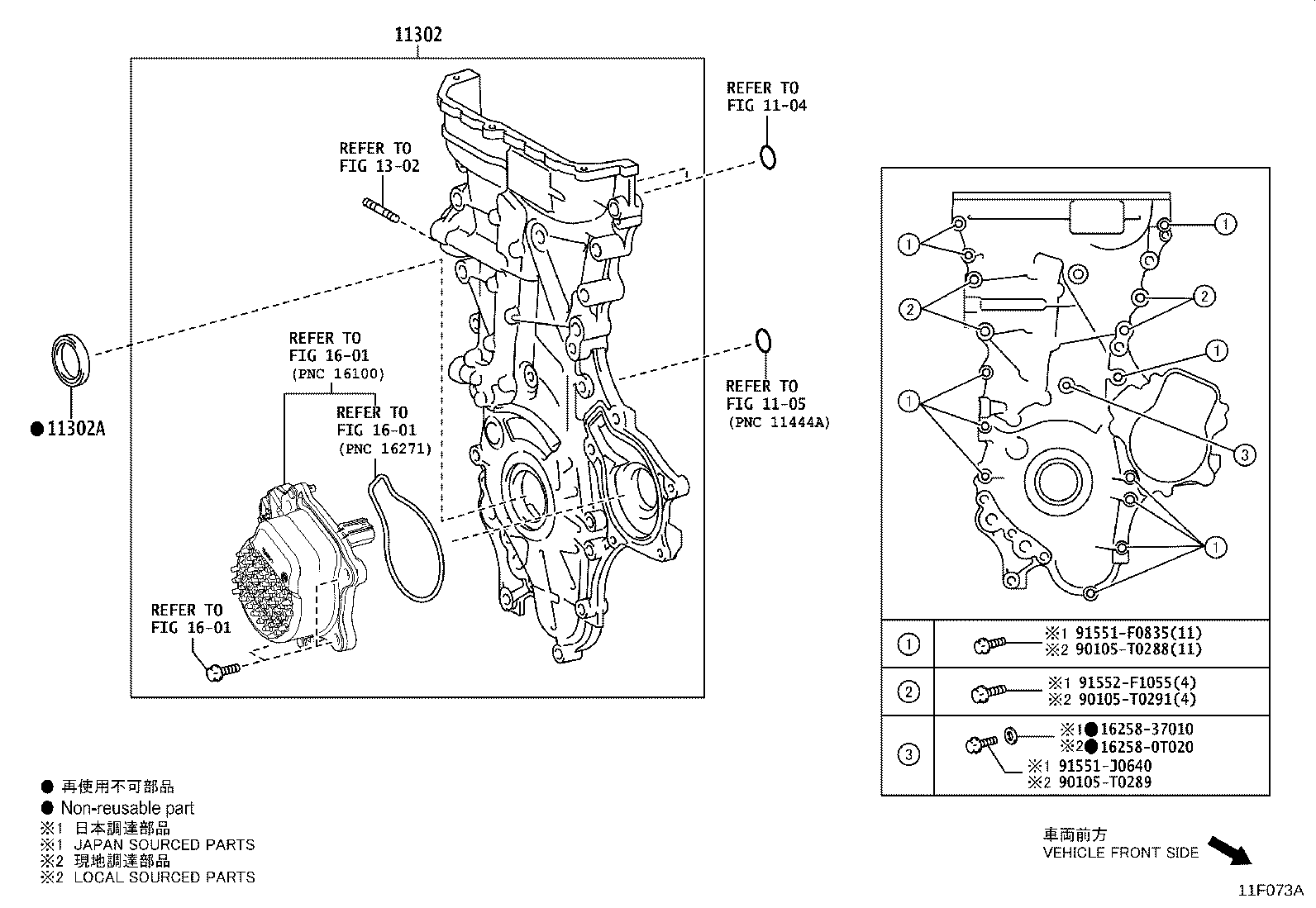

Click highlighted areas on diagram

diagram 1104 1105 11302 11302A 1302 1601 1601 1601 162580T020 1625837010 90105T0288 90105T0289 90105T0291 91551F0835 91551J0640 91552F1055
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-37090

2ZRFXE..ZVG10

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38096

2ZRFXE..ZVG10..BZP

 1
Common parts
16258-0T020
16258-37010
90105-T0288
90105-T0289
90105-T0291
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1104
1105
1302
1601
