ZVG10L-GHXGB (2021)
Toyota Corolla Cross
ILLUST NO. 1 OF 2(2007- )2ZRFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-80011 |
2ZRFXE..ZVG10..BZP..GEN PARAGUAY SPEC |
1 | ||
| 11101-80011 |
2ZRFXE..ZVG10..BZ |
1 | ||
| 11101-80000 |
2ZRFXE..ZVG10..BZP..(AGT,GEN) |
1 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05060 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-37010 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-37040 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-37070 |
2ZRFXE..ZVG10 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
2ZR#..ZSG10,ZVG10 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2ZRFXE..ZVG10..BZP |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-31090 |
2ZR#..ZSG10,ZVG10 O/S 0.05 |
8 | ||
| 11122-31090 |
2ZR#..ZSG10,ZVG10 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-31040 |
2ZR#..ZSG10,ZVG10 STD |
8 | ||
| 11127-31040 |
2ZR#..ZSG10,ZVG10 O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-37050 |
2ZRFXE..ZVG10..BZP..(AGT,GEN) STD |
8 | ||
| 11132-37090 |
2ZRFXE..ZVG10..BZP..GEN O/S 0.03,PARAGUAY SPEC |
8 | ||
| 11132-37050 |
2ZRFXE..ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN O/S 0.03 |
8 | ||
| 11132-37090 |
2ZRFXE..ZVG10..BZ O/S 0.03 |
8 | ||
| 11131-37090 |
2ZRFXE..ZVG10..BZ STD |
8 | ||
| 11131-37090 |
2ZRFXE..ZVG10..BZP..GEN STD,PARAGUAY SPEC |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-37020 |
2ZRFXE..ZVG10..BZP STD |
8 | ||
| 11136-37020 |
2ZRFXE..ZVG10 O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
2ZRFXE..ZVG10..BZP L=12.5,OD=8 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-12002 |
2ZR#..ZSG10,ZVG10 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-37010 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-37030 |
2ZRFXE..ZVG10 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-37061 |
2ZRFXE..ZVG10 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-37050 |
2ZRFXE..ZVG10 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11213-31080 |
2ZRFXE..ZVG10 |
2 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
2ZRFXE..ZVG10..BZP |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-37021 |
2ZRFXE..ZVG10..BZP TYPE A:REFER ILLUST. |
1 | ||
| 12281-37070 |
2ZRFXE..ZVG10..BZP TYPE B:REFER ILLUST. |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-37011 |
2ZRFXE..ZVG10..BZP NO PAINTED |
1 | ||
| 12282-37060 |
2ZRFXE..ZVG10..BZP PAINTED=WHITE |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-37010 |
2ZRFXE..ZVG10..BZP |
1 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90105-06361 | ||||
| 90105-T0270 | ||||
| 90109-06385 | ||||
| 90109-T0062 | ||||
| 90119-T0260 | ||||
| 90301-T0086 | ||||
| 90430-10024 | ||||
| 90430-T0015 | ||||
| 91552-81050 | ||||
| 91671-80616 | ||||
| 96721-24015 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7403 | ||||

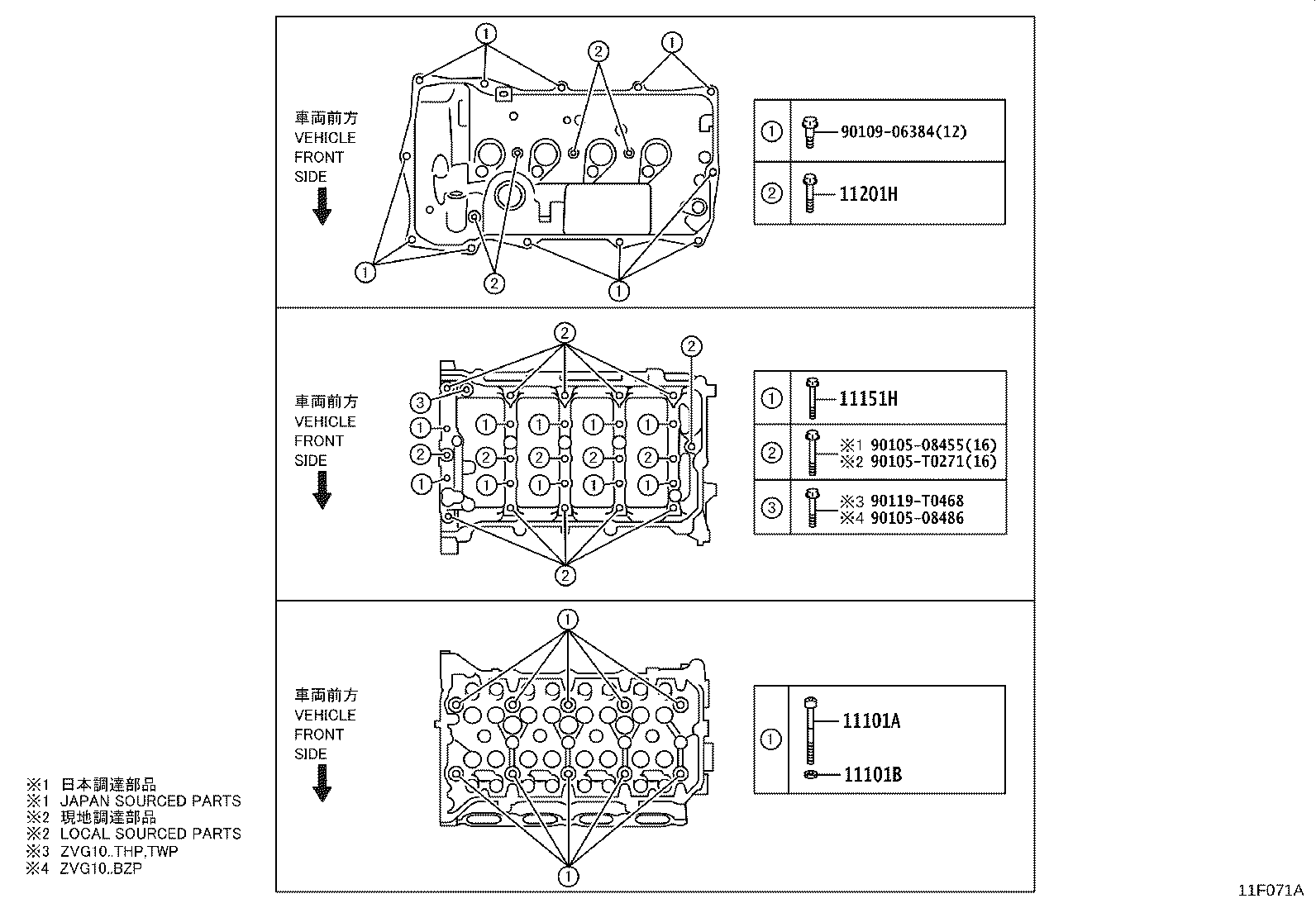

ILLUST NO. 2 OF 2(2007- )2ZRFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02166 |
2ZRFXE..ZVG10..BZP |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
2ZR#..ZSG10,ZVG10 |
10 | ||
| 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
2ZRFXE..ZVG10..BZP |
10 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90105-06361 |
2ZRFXE..ZVG10..BZP |
4 | ||
| 91551-80630 |
2ZRFXE..ZVG10..BZP |
4 | ||
| Common parts | ||||
| 90105-08455 | ||||
| 90105-08486 | ||||
| 90105-T0271 | ||||
| 90109-06384 | ||||
| 90119-T0468 | ||||
