ZVG10L-GHXEBH (2021)
Toyota Corolla Cross

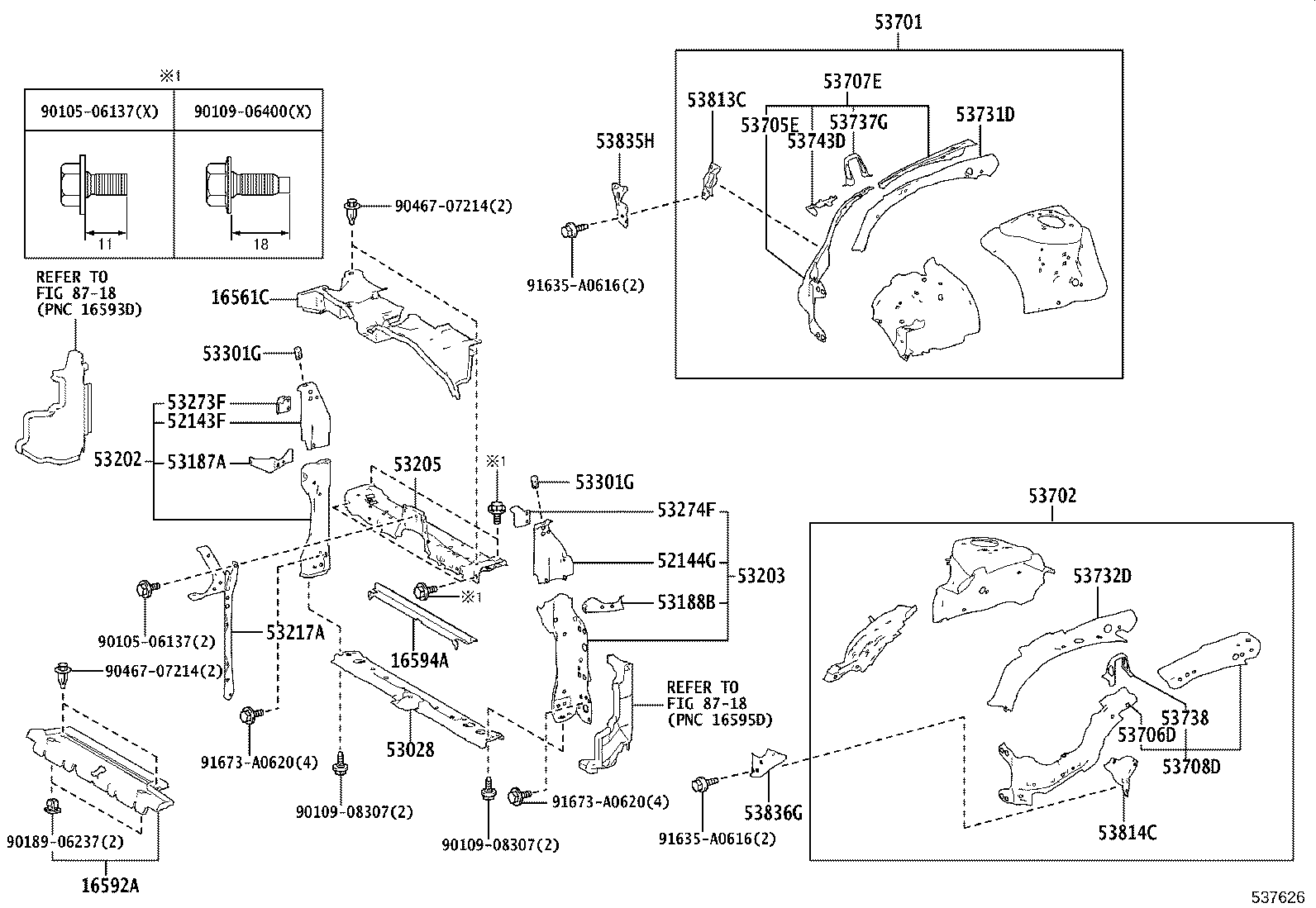

ILLUST NO. 1 OF 2(2103- )ZVG10..BZP
RADIATOR SUPPORT & FEDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16561C - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T300 |
M20AFKS,2ZRFXE..MXGA10,ZVG10..BZP |
1 | ||
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-0T340 |
M20AFKS,2ZRFXE..MXGA10,ZVG10..BZP |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-0T080 |
2ZRFXE..ZVG10..BZP,THP |
1 | ||
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-02130 |
ZVG10..BZP |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0A900 |
MXGA10,ZVG10..BZP |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0A900 |
MXGA10,ZVG10..BZP |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-0A040 |
ZVG10..BZP |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-0A900 |
MXGA10,ZVG10..BZP |
1 | ||
| 53273F - BRACKET, FRONT BUMPER RETAINER MOUNTING, RH | ||||
| 53273-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53274F - BRACKET, FRONT BUMPER RETAINER MOUNTING, LH | ||||
| 53274-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0A070 |
MXGA10,ZVG10..BZP |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-02120 |
MXGA10,ZVG10..BZP |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-02120 |
MXGA10,ZVG10..BZP |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02160 |
MXGA10,ZVG10..BZP |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02160 |
MXGA10,ZVG10..BZP |
1 | ||
| 53737G - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53743D - REINFORCEMENT, FRONT FENDER APRON FRONT EXTENSION, RH | ||||
| 53743-0A070 |
MXGA10,ZVG10..BZP |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-02220 |
MXGA10,ZVG10..BZP |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-02230 |
MXGA10,ZVG10..BZP |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-0A060 |
MXGA10,ZVG10..BZP |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-06400 | ||||
| 90109-08307 | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| 91635-A0616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 8718 | ||||

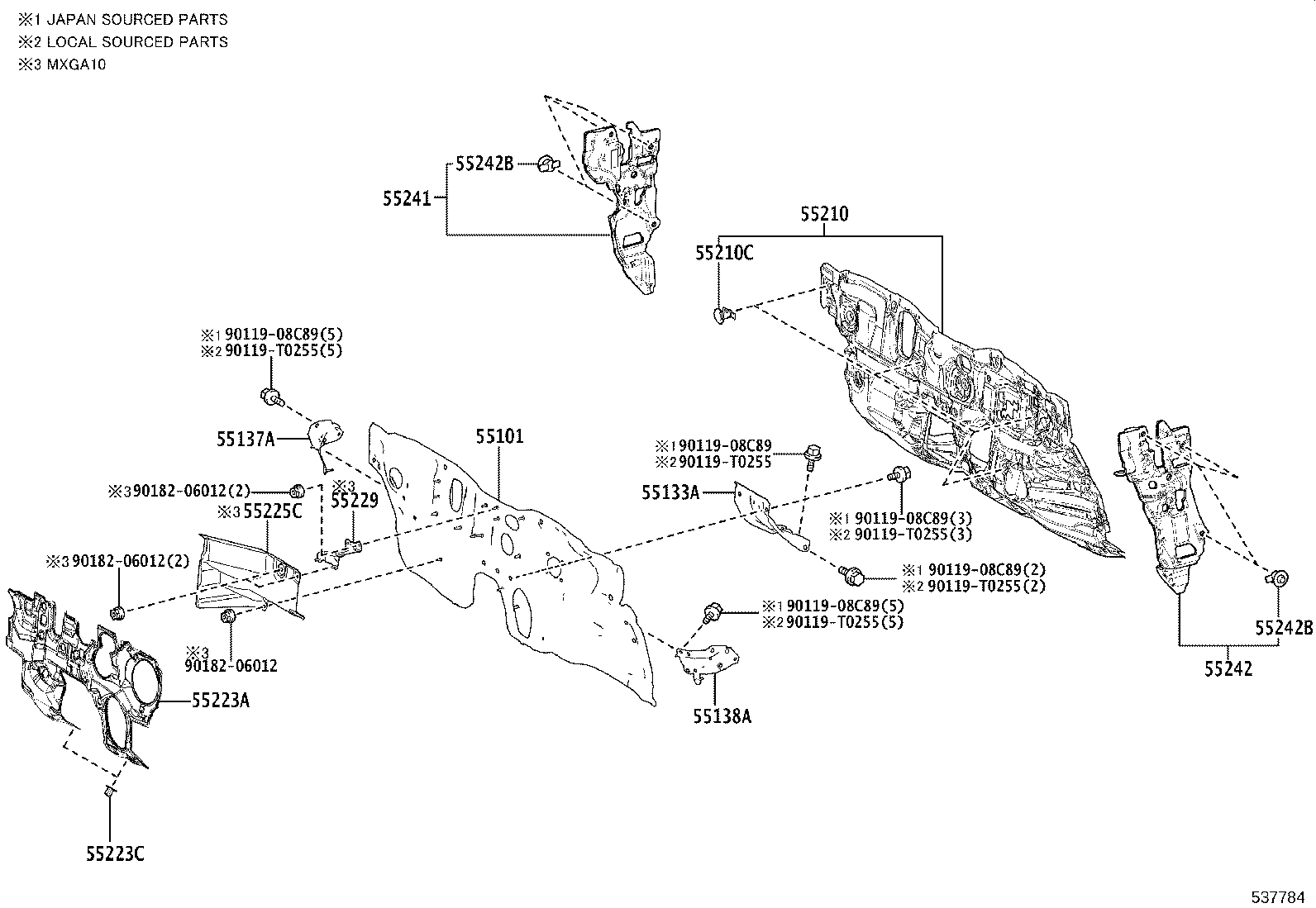

ILLUST NO. 2 OF 2(2103- )BZP
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0A120 |
MXGA10,ZVG10..BZP |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-02100 |
MXGA10,ZVG10..BZP |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02230 |
MXGA10,ZVG10..BZP |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02230 |
MXGA10,ZVG10..BZP |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-02750 |
ZVG10..BZP |
1 | ||
| 55210C - CLIP | ||||
| 90467-11122 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02480 |
MXGA10,ZVG10..BZP |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
MXGA10,ZSG10,ZVG10..BZP,TWP |
2 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-02110 |
MXGA10,ZVG10..BZP |
1 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-02100 |
MXGA10,ZVG10..BZP |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
MXGA10,ZSG10,ZVG10 |
6 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
MXGA10,ZSG10,ZVG10 |
6 | ||
| Common parts | ||||
| 90119-08C89 | ||||
| 90119-T0255 | ||||
| 90182-06012 | ||||
