ZVG10L-GHXEBG (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2103- )ZVG10..BZP..BZ,GEN

Click highlighted areas on diagram

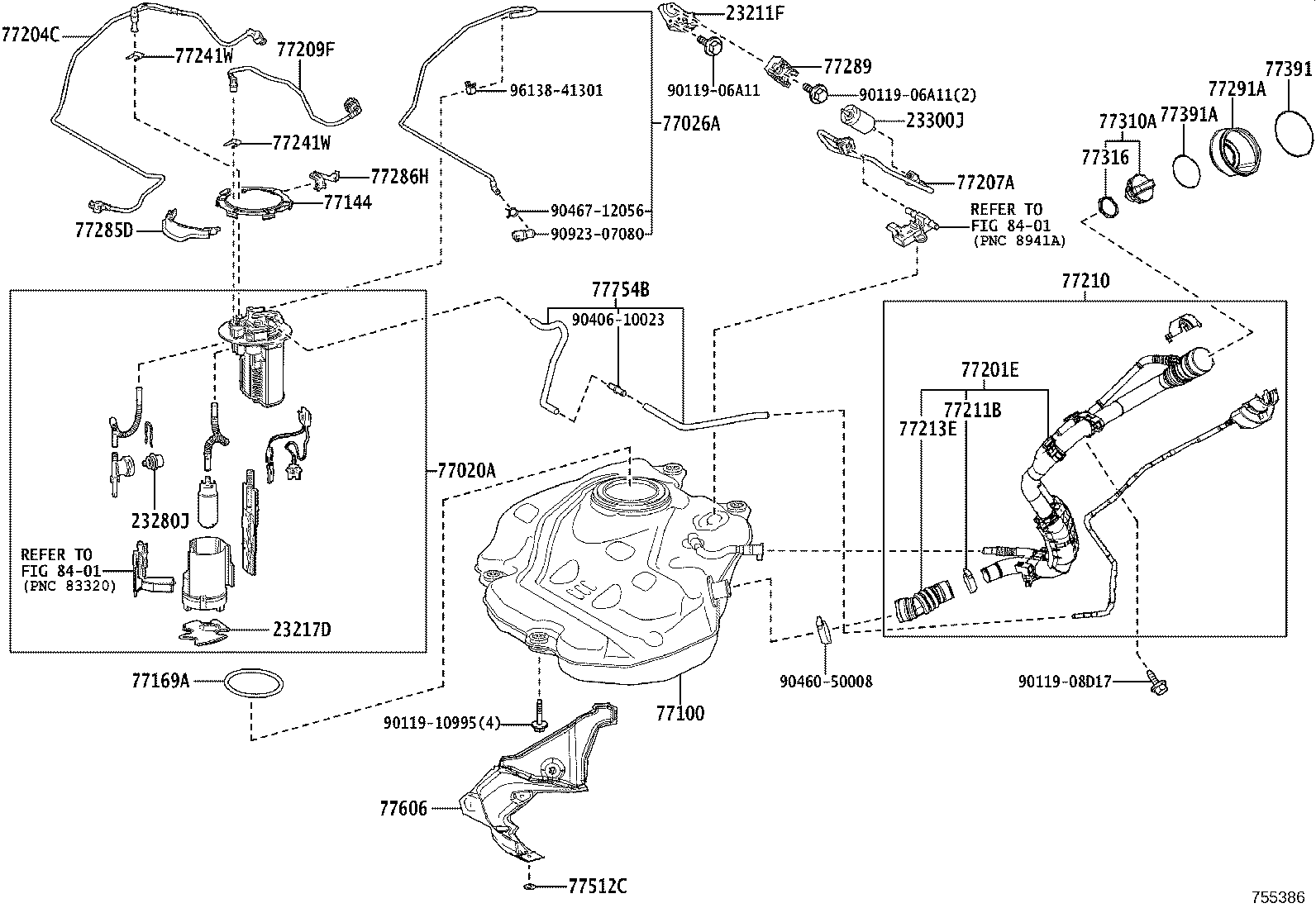

FUEL TANK, W(CHARCOAL CANISTER)

diagram 23211F 23217D 23280J 23300J 77020A 77026A 77100 77144 77169A 77201E 77204C 77207A 77209F 77210 77211B 77213E 77241W 77241W 77285D 77286H 77289 77291A 77310A 77316 77391 77391A 77512C 77606 77754B 8401 8401 9011906A11 9011906A11 9011908D17 9011910995 9040610023 9046050008 9046712056 9092307080 9613841301
Part # Description Qty Price
23211F - BRACKET
77705-0A020

M20AFKS,2ZRFXE..MXGA10,ZVG10..BZ

 1
23217D - FILTER, FUEL PUMP
23217-0Y050

2ZRFXE..ZVG10..BZ

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-0D010

2ZRFXE..ZVG10..BZ

 1
23300J - FILTER ASSY, FUEL
23300-F2030

M20AFKS,2ZRFXE..MXGA10,ZVG10..BZ

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0A100

ZVG10..BZ

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-0A080

ZVG10..BZP

 1
77100 - TANK ASSY, FUEL
77001-0A100

ZVG10..BZ

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-30030

MXGA10,ZVG10..BZP

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-0A030

MXGA10,ZSG10,ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN

 1
77204C - TUBE SUB-ASSY, FUEL TANK MAIN, NO.2
77204-0A010

ZVG10..BZ

 1
77207A - TUBE SUB-ASSY, FUEL RETURN
77207-0A030

ZVG10..BZ

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0A100

ZVG10..BZ

 1
77210 - PIPE ASSY, FUEL TANK FILLER
77210-0A030

ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN;MXGA10,ZSG10..AGT,GCC,GEN,IDN,MA,PH,TH,VN

 1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-46005

MXGA10,ZSG10,ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN

 1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-0A030

MXGA10,ZSG10,ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN

 1
77241W - CLIP, TUBE JOINT
77241-33011

MXGA10,ZVG10..BZ

 2
77241W - CLIP, TUBE JOINT
77241-33011

MXGA10,ZVG10..BZ

 2
77285D - CLAMP, FUEL TUBE, NO.1
77285-0A060

ZVG10

 1
77286H - CLAMP, FUEL TUBE, NO.3
77285-16140

MXGA10,ZVG10..BZ

 1
77289 - HOLDER, FUEL TANK PIPE SETTING
77289-16040

MXGA10,ZVG10..BZ

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0A030

MXGA10,ZVG10..BZP

 1
77391 - RING, FUEL INLET BOX
77391-0A010

MXGA10,ZSG10,ZVG10

 1
77391A - RING, FUEL INLET BOX
77391-02020

MXGA10,ZSG10,ZVG10

 1
77512C - BRACKET, FUEL TANK
77512-35140

ZVG10

 3
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-0A080

ZVG10..BZP,THP

 1
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-16090

ZVG10..BZP

 1
Common parts
90119-06A11
90119-08D17
90119-10995
90406-10023
90460-50008
90467-12056
90923-07080
96138-41301
Linked diagrams
8401
