ZVG10L-GHXEB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2103- )BZP

Click highlighted areas on diagram

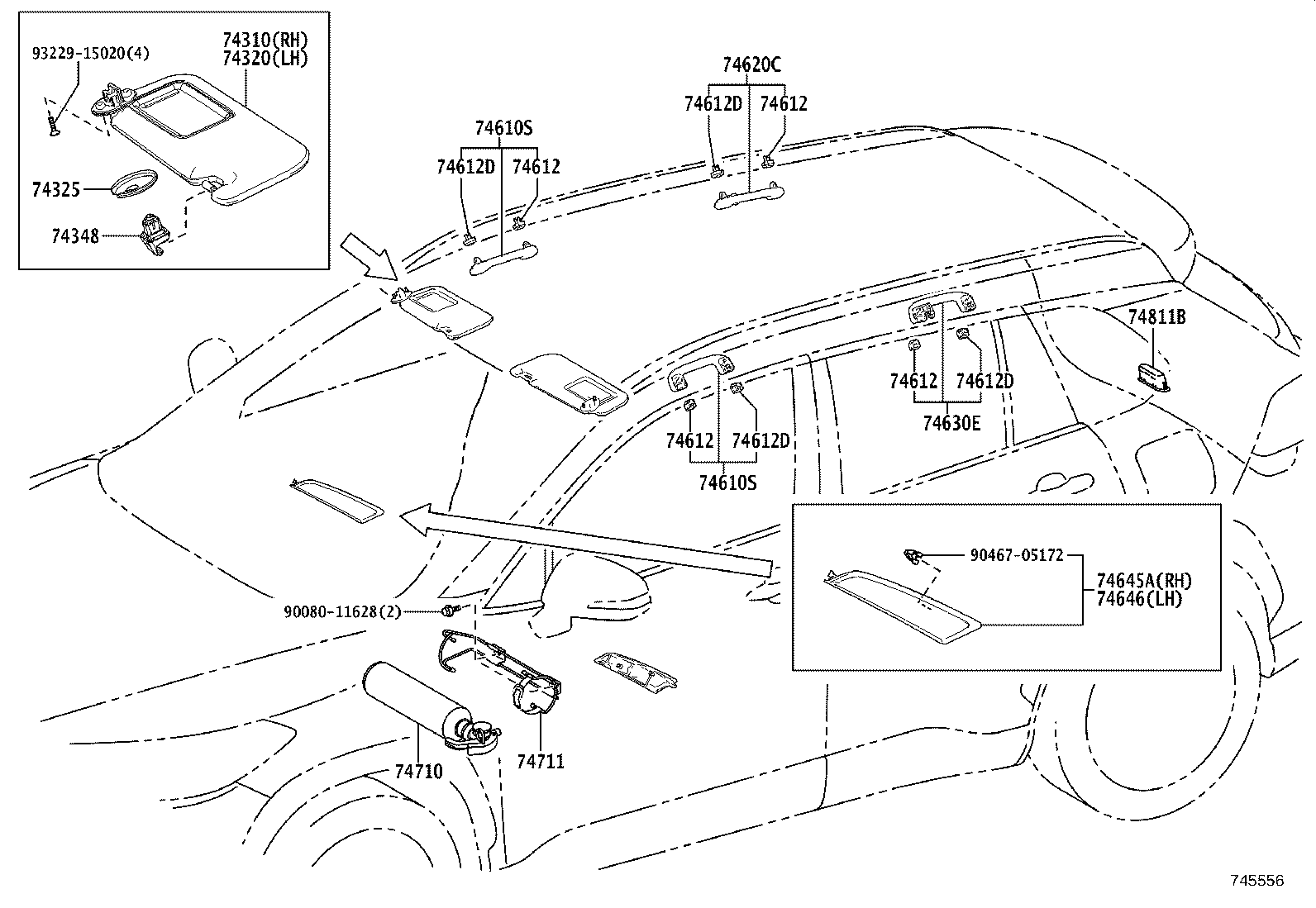

VISOR & ASSIST GRIP & EXTINGUISHER

diagram 74310 74320 74325 74348 74610S 74610S 74612 74612 74612 74612 74612D 74612D 74612D 74612D 74620C 74630E 74645A 74646 74710 74711 74811B 9008011628 9046705172 9322915020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-02M80C0

ZVG10..N..GEN;ZSG10..RHD..(G,N)..GEN

BLACK,TRIM2#,3#

 1
74310-02P10C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
74310-12G80C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
74320 - VISOR ASSY, LH
74320-02G00C0

ZVG10..N..GEN;ZSG10..RHD..(G,N)..GEN

BLACK,TRIM2#,3#

 1
74320-02J40C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
74320-12J90C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
74325 - COVER, VISOR BRACKET
74317-60020C2

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 2
74348 - HOLDER, VISOR
74348-47010C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 2
74348-0D100C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 2
74610S - GRIP ASSY, ASSIST
74610-02340C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 2
74610-02200C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 2
74610S - GRIP ASSY, ASSIST
74610-02340C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 2
74610-02200C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 2
74612 - COVER, ASSIST GRIP
74612-02090C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 4
74612-0D050C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 8
74612 - COVER, ASSIST GRIP
74612-02090C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 4
74612-0D050C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 8
74612 - COVER, ASSIST GRIP
74612-02090C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 4
74612-0D050C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 8
74612 - COVER, ASSIST GRIP
74612-02090C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 4
74612-0D050C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 8
74612D - COVER, ASSIST GRIP
74611-02160C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 4
74612D - COVER, ASSIST GRIP
74611-02160C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 4
74612D - COVER, ASSIST GRIP
74611-02160C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 4
74612D - COVER, ASSIST GRIP
74611-02160C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 4
74620C - GRIP ASSY, ASSIST, REAR RH
74610-02330C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
74610-02280C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-02290C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
74610-02210C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-0A030C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
74645-0A020C0

ZSG10,ZVG10..L,M

BLACK

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-0A020C0

ZSG10,ZVG10..L,M

BLACK

 1
74646-0A030C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
74710 - EXTINGUISHER ASSY
74710-02010

MXGA10,ZVG10..BZ

EXTINGUISHER-WITH

 1
74711 - BRACKET SUB-ASSY, EXTINGUISHER
74702-02020

MXGA10,ZVG10..BZ

EXTINGUISHER-WITH

 1
74811B - HANDLE, DOOR PULL
69285-0D060

MXGA10,ZVG10..BZP

 1
Common parts
90080-11628
90467-05172
93229-15020
