ZVG10L-EHXNBR (2020)
Toyota Corolla Cross

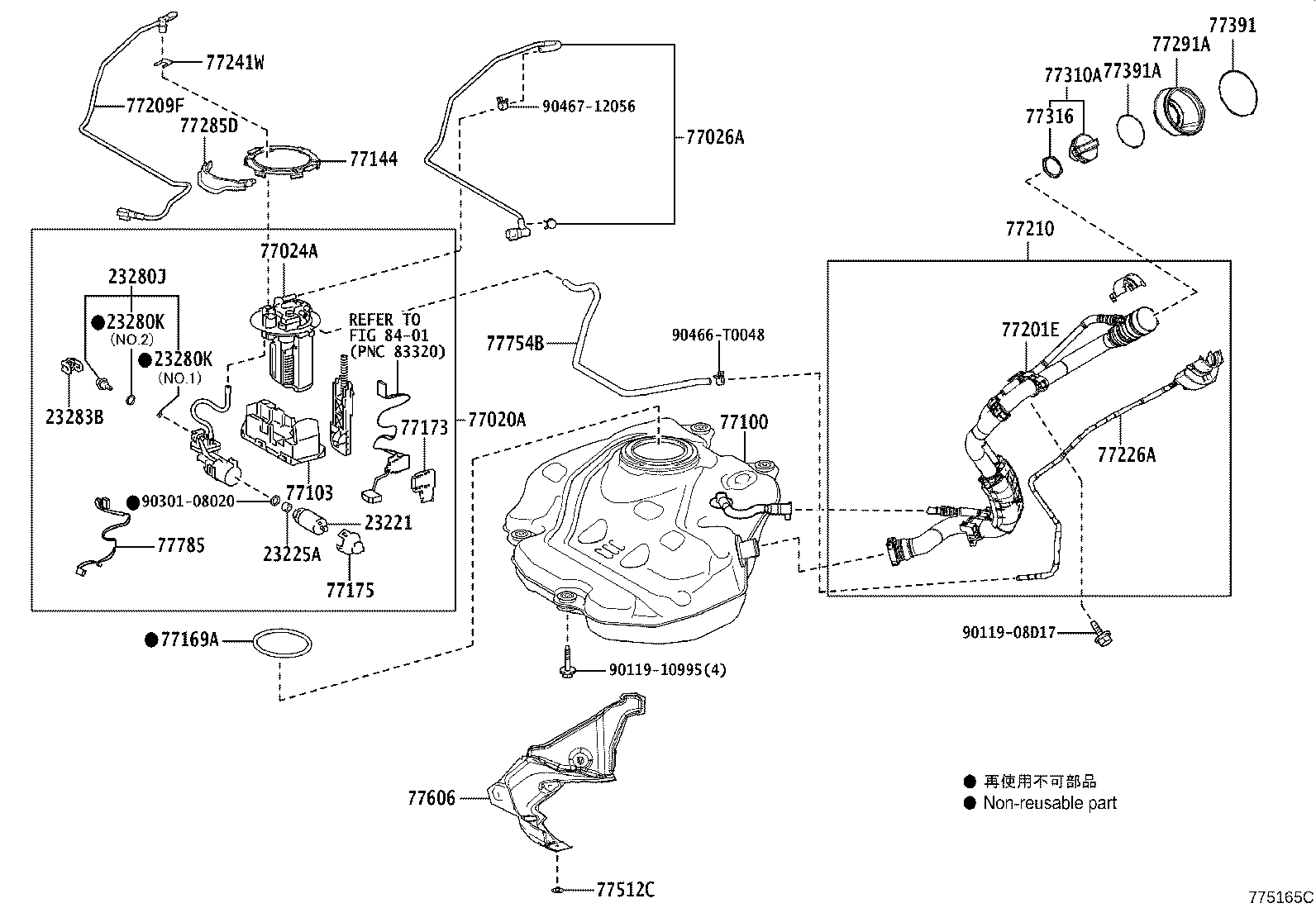

ILLUST NO. 1 OF 3(2010- )ZVG10..TWP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23221-47031 |
2ZRFXE..ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.2:REFER ILLUST. |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-37010 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0A060 |
ZVG10..TWP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-16010 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-0A030 |
ZVG10..THP,TWP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0A180 |
ZVG10..TAIW |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-12150 |
ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN;MXGA10,ZSG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,VN |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02160 |
ZSG10,ZVG10..TWP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
ZSG10,ZVG10..TAIW |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12010 |
ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-12040 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0A090 |
ZSG10,ZVG10..TAIW |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0A180 |
ZVG10..TAIW |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-0A090 |
ZSG10,ZVG10..TAIW |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-0A030 |
ZSG10,ZVG10..TAIW |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,GCC,GEN,TAIW) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0A060 |
ZVG10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0A020 |
ZSG10,ZVG10..TWP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48020 |
ZSG10,ZVG10..TAIW |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
ZSG10,ZVG10..TAIW |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ZVG10 |
3 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0A090 |
ZVG10..TWP |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-0A030 |
ZVG10..THP,TWP |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12050 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90301-08020 | ||||
| 90466-T0048 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 8401 | ||||
