ZVG10L-EHXNBR (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2010- )2ZRFXE..BZP,TWP

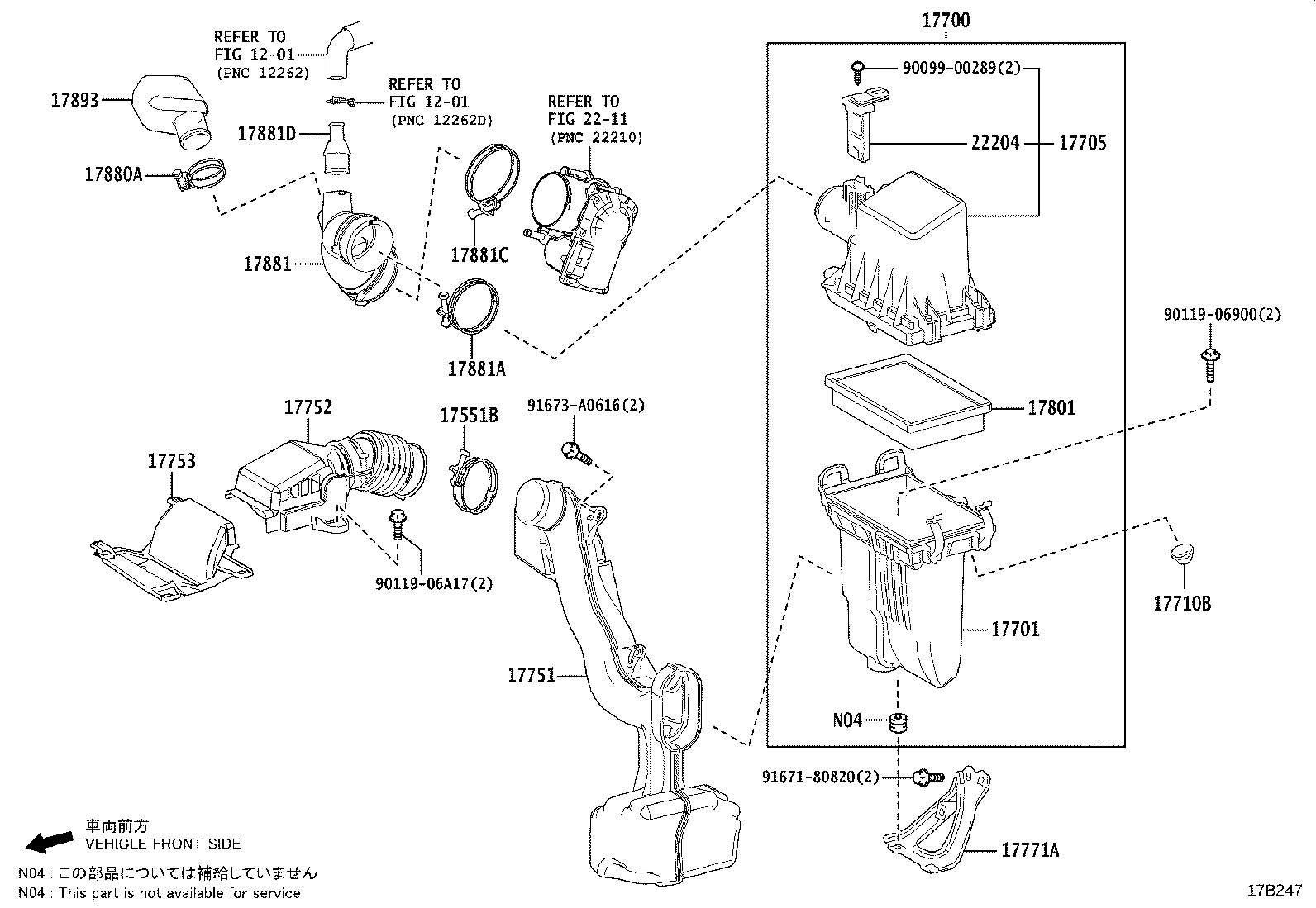

Click highlighted areas on diagram

diagram 1201 1201 17551B 17700 17701 17705 17710B 17751 17752 17753 17771A 17801 17880A 17881 17881A 17881C 17881D 17893 2211 22204 9009900289 9011906900 9011906A17 9167180820 91673A0616
Part # Description Qty Price
17551B - CLAMP(FOR AIR CLEANER INLET, NO.1)
96111-10650

2ZRFXE..ZVG10..BZP,TWP

 1
17700 - CLEANER ASSY, AIR
17700-0T310

2ZRFXE..ZVG10..TWP

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0T260

2ZRFXE..ZVG10..TWP

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0T310

2ZRFXE..ZVG10..TWP

 1
17710B - GROMMET
90480-18006

2ZR#..ZSG10,ZVG10

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0T250

2ZRFXE..ZVG10

 1
17752 - INLET, AIR CLEANER, NO.2
17752-0T100

2ZRFXE..ZVG10

 1
17753 - INLET, AIR CLEANER, NO.3
17753-0T110

2ZRFXE..ZVG10

 1
17771A - BRACKET, AIR CLEANER
17771-37020

2ZRFXE..ZVG10

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21060

2ZRFXE..ZVG10..BZP,TWP

(J)

 1
17801-0T090

2ZRFXE..ZVG10..TWP

(L)

 1
17880A - CLAMP, HOSE
96111-10430

2ZRFXE..ZVG10

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0T540

2ZRFXE..ZVG10..TWP

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2ZRFXE..ZVG10..BZP,TWP

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

2ZRFE,2ZRFXE..ZSG10,ZVG10..BZP,TWP

(J)

 1
90460-T0010

2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP

(L)

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008

2ZRFXE..ZVG10

 1
17893 - RESONATOR, INTAKE AIR
17893-0T130

2ZRFXE..ZVG10..TWP

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

2ZRFXE..ZVG10

 1
Common parts
90099-00289
90119-06900
90119-06A17
91671-80820
91673-A0616
Linked diagrams
1201
2211
