ZVG10L-EHXGBV (2020)
Toyota Corolla Cross

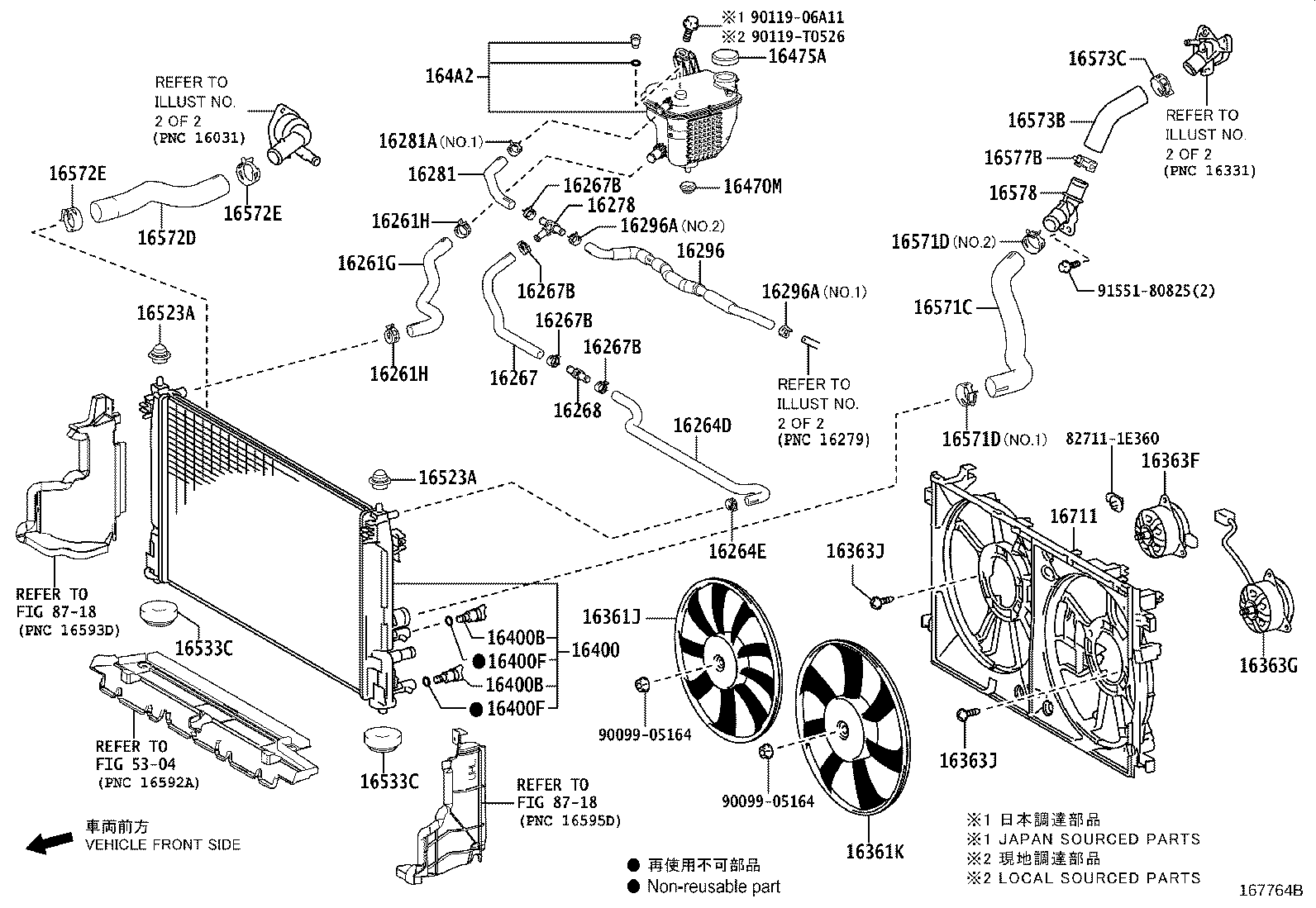

ILLUST NO. 1 OF 2(2010- )2ZRFXE..BZP,TWP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0T380 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96138-42501 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..BZP,TWP |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96138-42501 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..BZP,TWP |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0T330 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T300 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 |
4 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 |
4 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 |
4 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-F2080 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16268-F2070 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0T230 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0020 |
2ZRFXE..ZVG10..THP,TWP (L),NO.2 |
2 | ||
| 96138-42101 |
2ZRFXE..ZVG10..BZP,TWP NO.1 |
1 | ||
| 96136-42501 |
2ZRFXE..ZVG10..THP,TWP (J),NO.2 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-0T050 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 NO.2 |
1 | ||
| 90466-16004 |
2ZRFXE..ZVG10 NO.1 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 NO.2 |
1 | ||
| 90466-16004 |
2ZRFXE..ZVG10 NO.1 |
1 | ||
| 16361J - FAN, RH | ||||
| 16361-0T360 |
2ZRFXE..ZVG10..GCC |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-0T350 |
2ZRFXE..ZVG10..GCC |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-37070 |
2ZRFXE..ZVG10..GCC |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-37080 |
2ZRFXE..ZVG10..GCC |
1 | ||
| 16363J - BOLT(FOR COOLING FAN MOTOR) | ||||
| 90099-04119 |
2ZRFXE..ZVG10 |
6 | ||
| 16363J - BOLT(FOR COOLING FAN MOTOR) | ||||
| 90099-04119 |
2ZRFXE..ZVG10 |
6 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0T500 |
2ZRFXE..ZVG10..GCC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
2ZRFXE..ZVG10..TWP;2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
2ZRFXE..ZVG10..TWP;2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 164A2 - TANK, RESERVE SEALED W/O CAP | ||||
| 164A2-0T070 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T120 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T120 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
2ZR#..ZSG10,ZVG10 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
2ZR#..ZSG10,ZVG10 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T400 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2ZRFXE..ZVG10 NO.2 |
1 | ||
| 96136-44301 |
2ZRFXE..ZVG10..TWP NO.1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2ZRFXE..ZVG10 NO.2 |
1 | ||
| 96136-44301 |
2ZRFXE..ZVG10..TWP NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T330 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T240 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
2ZRFXE..ZVG10 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 96136-43901 |
2ZR#..ZSG10,ZVG10..THP,TWP |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16577-0T230 |
2ZRFXE..ZVG10..TWP |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0T260 |
2ZRFXE..ZVG10..TWP |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-05164 | ||||
| 90119-06A11 | ||||
| 90119-T0526 | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 8718 | ||||
