ZSG10R-DHXGGT (2020)
Toyota Corolla Cross
Production
Jul 2020
-
Sep 9999
Engine
2ZRFBE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )ZSG10..RHD

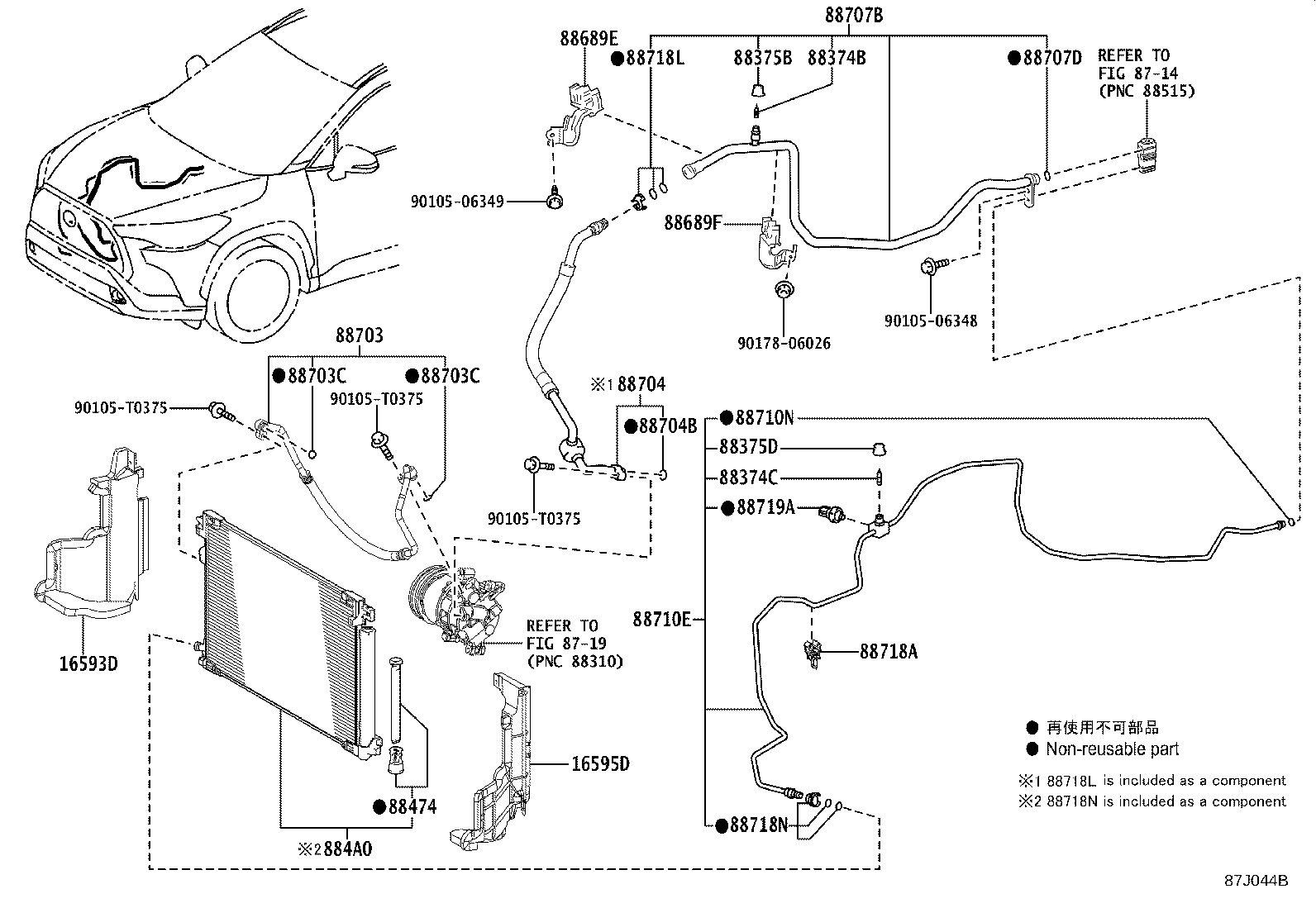

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16593D - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-0T270 |
2ZR#..ZSG10,ZVG10..BZP,THP |
1 | ||
| 16595D - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-0T330 |
2ZRFBE,2ZRFE..ZSG10..THP |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZVG10..THP,TWP;ZSG10..GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ZSG10,ZVG10..THP |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZVG10..THP;ZSG10..GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ZSG10,ZVG10..THP,TWP |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 884A0-F4040 |
ZSG10..THP |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-F4060 |
ZSG10..THP |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-F4070 |
ZSG10..THP |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-0A010 |
ZSG10..THP |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90068-14044 |
ZSG10,ZVG10..THP ID=10.2,OD=15.0 |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90068-14044 |
ZSG10,ZVG10..THP ID=10.2,OD=15.0 |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0A060 |
ZSG10..RHD |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90068-14043 |
ZSG10,ZVG10..THP ID=13.4,OD=18.2 |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-F4040 |
ZSG10..RHD |
1 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90068-14043 |
ZSG10,ZVG10..THP ID=13.4,OD=18.2 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-F4150 |
ZSG10..RHD |
1 | ||
| 88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90068-14042 |
ZSG10,ZVG10..THP ID=6.7,OD=10.3 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-F4100 |
ZSG10,ZVG10..THP |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| Common parts | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90105-T0375 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
