ZSG10R-DHXGGT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFBE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

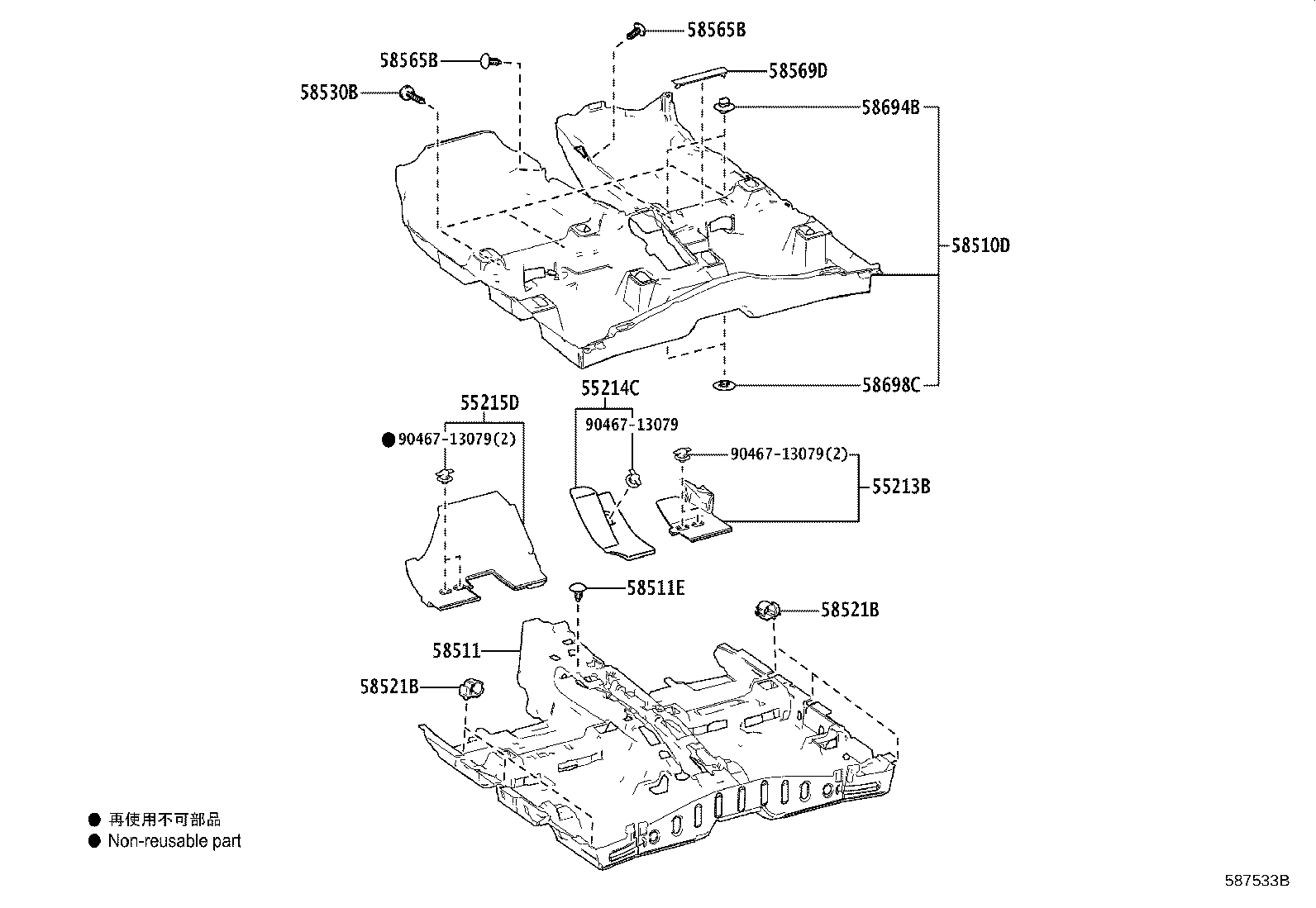

ILLUST NO. 1 OF 2(2007- )ZSG10..RHD

Click highlighted areas on diagram

FLOOR CARPET

diagram 55213B 55214C 55215D 58510D 58511 58511E 58521B 58521B 58530B 58565B 58565B 58569D 58694B 58698C 9046713079 9046713079 9046713079
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-0A050

ZSG10,ZVG10..RHD

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0A030

ZSG10,ZVG10..RHD

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0A030

ZSG10,ZVG10..RHD

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0A100C0

ZSG10..RHD..(GEN,MA,TH)

BLACK,TRIM2#,3#

 1
58511 - MAT, FLOOR, FRONT
58511-0A010

ZSG10..THP

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

MXGA10,ZSG10,ZVG10

BLACK

 1
58521B - HOOK, FLOOR CARPET
58521-06170

ZSG10,ZVG10..THP,TWP

 6
58521B - HOOK, FLOOR CARPET
58521-06170

ZSG10,ZVG10..THP,TWP

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
64726-10020C2

ZSG10,ZVG10..THP

BLACK,TRIM2#,3#

 4
58565B - CLIP
90467-T0004C4

ZSG10,ZVG10..THP

BLACK,TRIM2#,3#

 2
58565B - CLIP
90467-T0004C4

ZSG10,ZVG10..THP

BLACK,TRIM2#,3#

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-02130C0

ZSG10,ZVG10..THP

BLACK,TRIM2#,3#

 1
58694B - PLATE, MAT SET, UPPER
58694-0K010

ZSG10,ZVG10..THP

 2
58698C - PLATE, MAT SET, LOWER
58698-0K070

ZSG10,ZVG10..THP

 2
Common parts
90467-13079
