ZSG10R-DHXGGT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFBE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

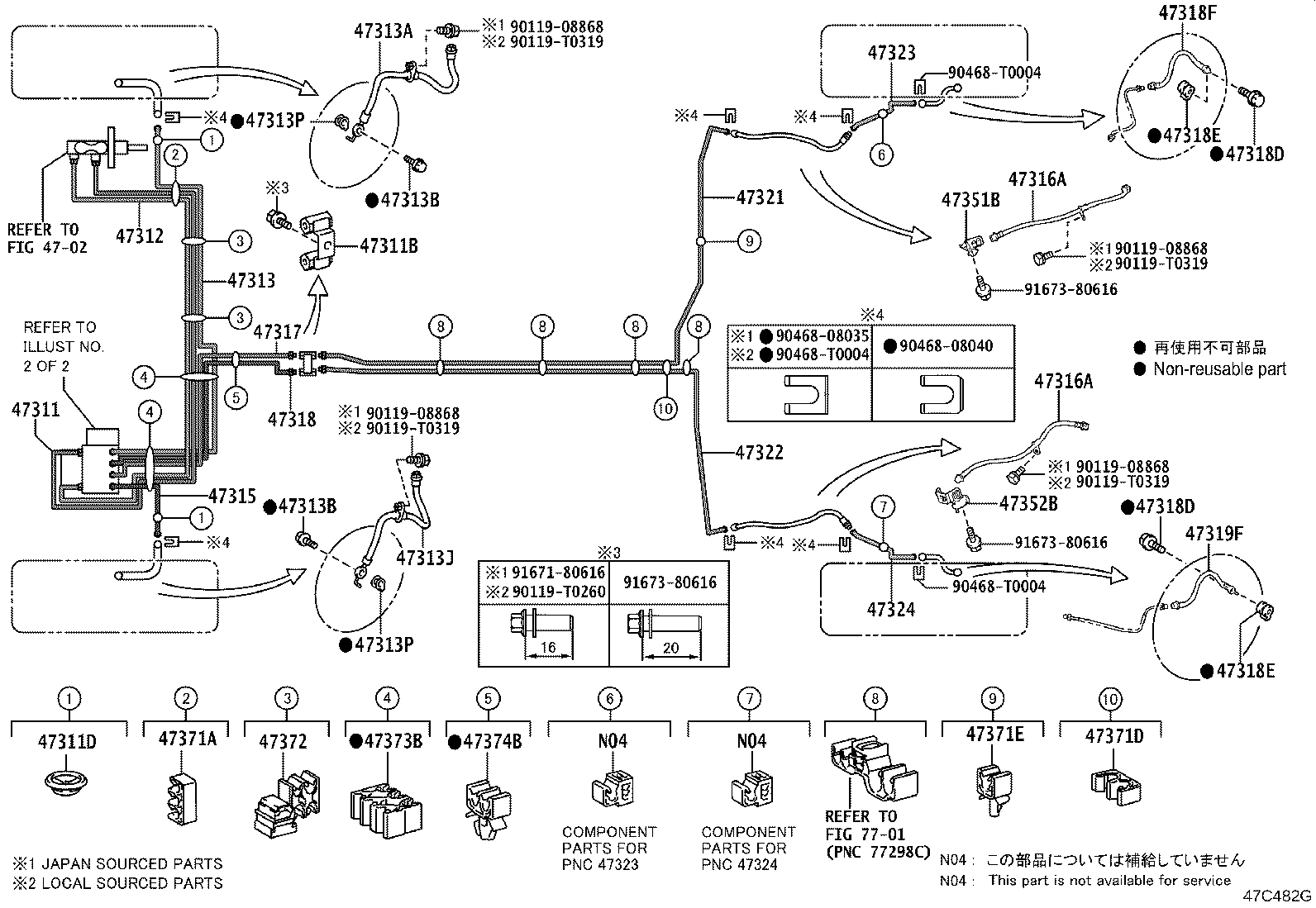

ILLUST NO. 1 OF 2(2007- )ZSG10..RHD

Click highlighted areas on diagram

BRAKE TUBE

diagram 4702 47311 47311B 47311D 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316A 47316A 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47351B 47352B 47371A 47371D 47371E 47372 47373B 47374B 7701 9011908868 9011908868 9011908868 9011908868 90119T0260 90119T0319 90119T0319 90119T0319 90119T0319 9046808035 9046808040 90468T0004 90468T0004 90468T0004 9167180616 9167380616 9167380616 9167380616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0A040

ZSG10..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

MXGA10,ZSG10,ZVG10

 1
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-25037

MXGA10,ZSG10,ZVG10

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-0A050

ZSG10..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-F4050

ZSG10..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2128

MXGA10,ZSG10,ZVG10..BZP,THP

(L)

 1
90947-02H46

MXGA10,ZSG10,ZVG10

(J)

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

MXGA10,ZSG10,ZVG10

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

MXGA10,ZSG10,ZVG10

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2129

MXGA10,ZSG10,ZVG10..BZP,THP

(L)

 1
90947-02H47

MXGA10,ZSG10,ZVG10

(J)

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

MXGA10,ZSG10,ZVG10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

MXGA10,ZSG10,ZVG10

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-F4050

ZSG10..RHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2162

MXGA10,ZSG10,ZVG10..BZP,THP

RH

 1
90947-T2163

MXGA10,ZSG10,ZVG10..BZP,THP

LH

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2162

MXGA10,ZSG10,ZVG10..BZP,THP

RH

 1
90947-T2163

MXGA10,ZSG10,ZVG10..BZP,THP

LH

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-F4050

ZSG10..RHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-F4050

ZSG10..RHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MXGA10,ZSG10,ZVG10

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

MXGA10,ZSG10,ZVG10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

MXGA10,ZSG10,ZVG10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

MXGA10,ZSG10,ZVG10

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2160

MXGA10,ZSG10,ZVG10..BZP,THP

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2160

MXGA10,ZSG10,ZVG10..BZP,THP

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0A040

ZSG10,ZVG10..THP

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0A040

ZSG10,ZVG10..THP

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0A040

ZSG10,ZVG10..THP

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0A040

ZSG10,ZVG10..THP

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-0A050

ZSG10,ZVG10..THP

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-0A050

ZSG10,ZVG10..THP

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01E43

ZSG10..RHD

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90464-00904

MXGA10,ZSG10,ZVG10

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01E01

MXGA10,ZSG10,ZVG10

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01E30

ZSG10..RHD

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01E44

ZSG10..RHD

 2
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01E34

ZSG10..RHD

 1
Common parts
90119-08868
90119-T0260
90119-T0319
90468-08035
90468-08040
90468-T0004
91671-80616
91673-80616
Linked diagrams
4702
7701

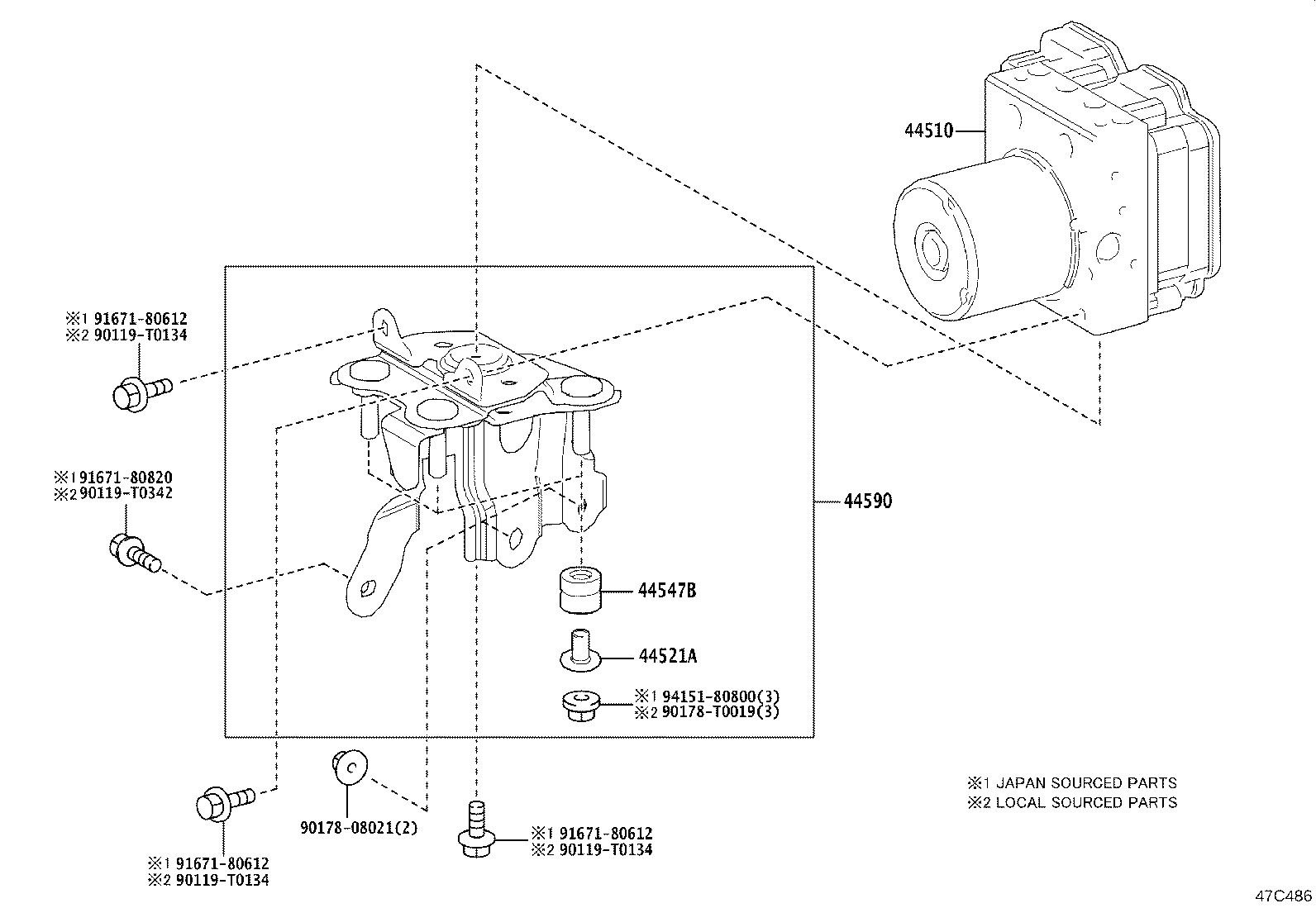

ILLUST NO. 2 OF 2(2007- )ZSG10..RHD

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 44521A 44547B 44590 90119T0134 90119T0134 90119T0134 90119T0342 9017808021 90178T0019 9167180612 9167180612 9167180612 9167180820 9415180800
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0A040

ZSG10..RHD

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-33020

MXGA10,ZSG10

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-33100

MXGA10,ZSG10

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02560

ZSG10..RHD

 1
Common parts
90119-T0134
90119-T0342
90178-08021
90178-T0019
91671-80612
91671-80820
94151-80800
