ZSG10R-DHXGGT (2020)
Toyota Corolla Cross
Production
Jul 2020
-
Sep 9999
Engine
2ZRFBE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

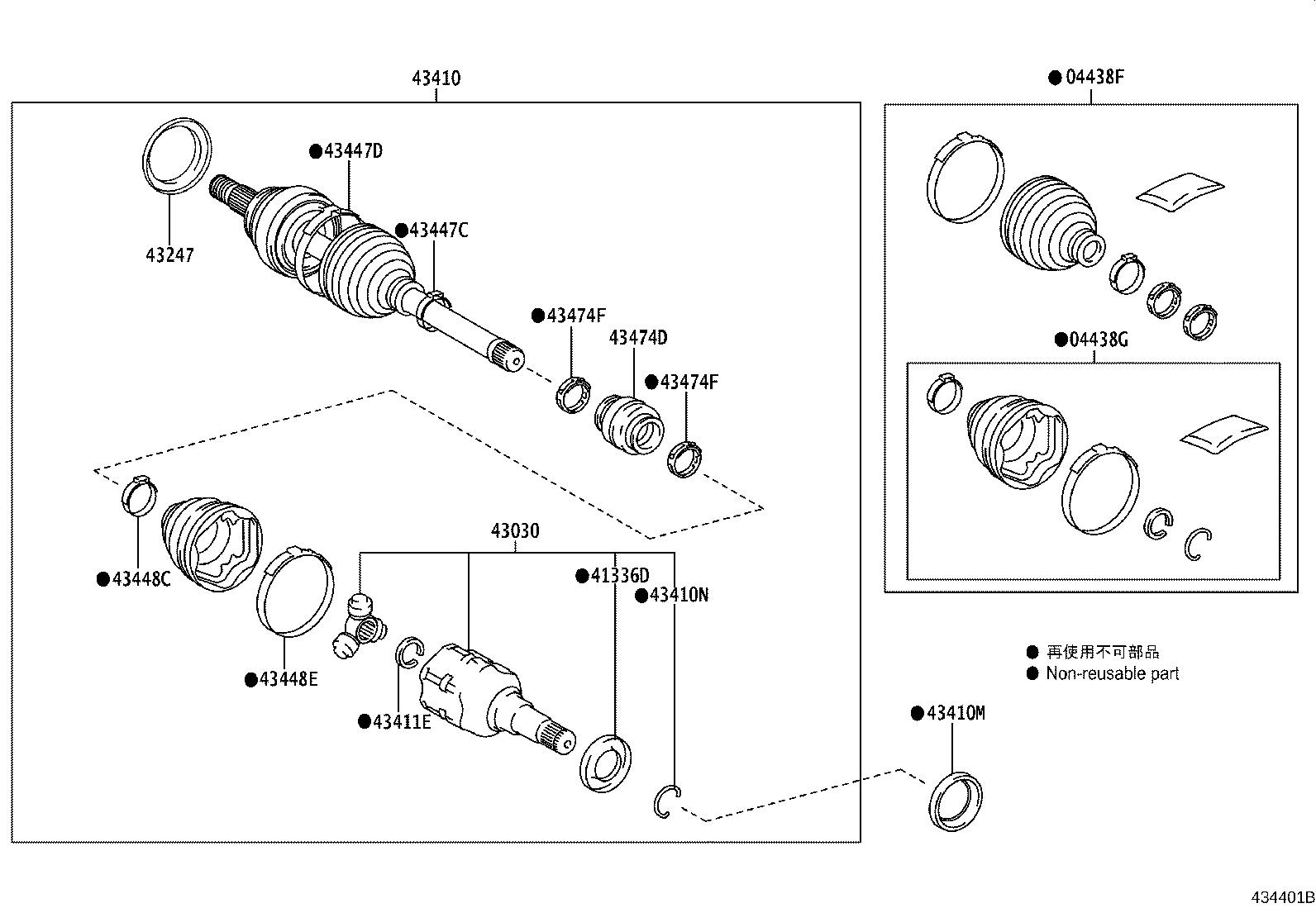

ILLUST NO. 2 OF 2(2007- )ZSG10..THP
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-0D411 |
ZSG10 |
1 | ||
| 04427-0D412 |
ZSG10..THP |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-0D270 |
ZSG10..THP |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-0D130 |
ZSG10..THP |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43040-0D060 |
ZSG10..THP |
1 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-47010 |
ZSG10,ZVG10..THP |
2 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0A080 |
ZSG10..THP |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35076 |
ZSG10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 43425-0D440 |
ZSG10..THP |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-0D420 |
ZSG10,ZVG10..THP |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0DB10 |
ZSG10,ZVG10..THP |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0DB30 |
ZSG10,ZVG10..THP |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0DB10 |
ZSG10,ZVG10..THP |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0DB00 |
ZSG10,ZVG10..THP |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0A030 |
ZSG10..THP |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-0DA50 |
ZSG10..THP |
2 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-0DA50 |
ZSG10..THP |
2 | ||

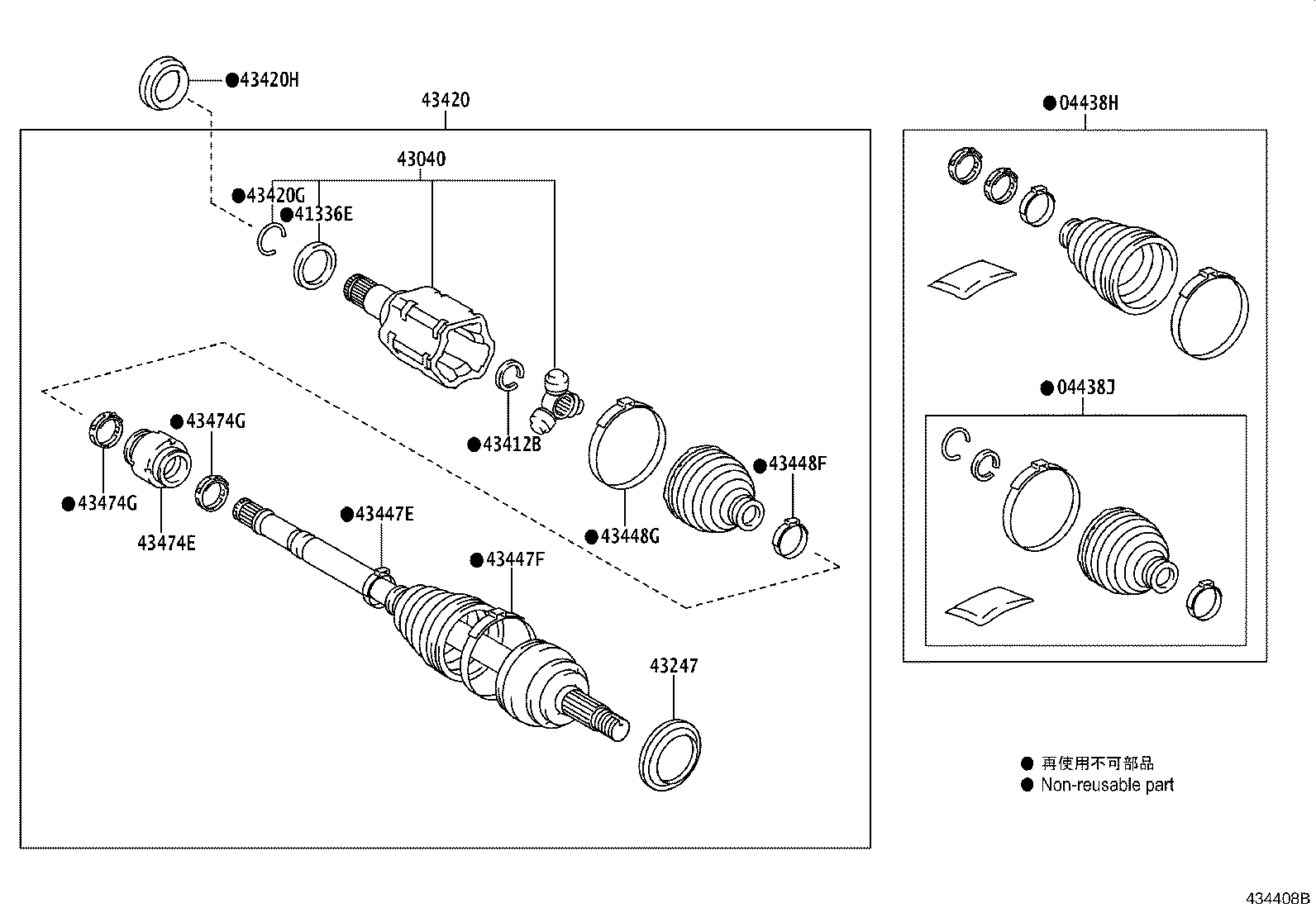

ILLUST NO. 1 OF 2(2007- )ZSG10..THP
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-0D411 |
ZSG10 |
1 | ||
| 04427-0D412 |
ZSG10..THP |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-0D270 |
ZSG10..THP |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-0D130 |
ZSG10..THP |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-0D060 |
ZSG10..THP |
1 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-47010 |
ZSG10,ZVG10..THP |
2 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-0D420 |
ZSG10,ZVG10..THP |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0A080 |
ZSG10..THP |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-0D440 |
ZSG10..THP |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35080 |
ZSG10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-0DB10 |
ZSG10,ZVG10..THP |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-0DB30 |
ZSG10,ZVG10..THP |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0DB10 |
ZSG10,ZVG10..THP |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0DB00 |
ZSG10,ZVG10..THP |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-02670 |
ZSG10..THP |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-0DA50 |
ZSG10,ZVG10..THP |
2 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-0DA50 |
ZSG10,ZVG10..THP |
2 | ||
