ZSG10R-DHXGGT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFBE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )ZSG10..RHD

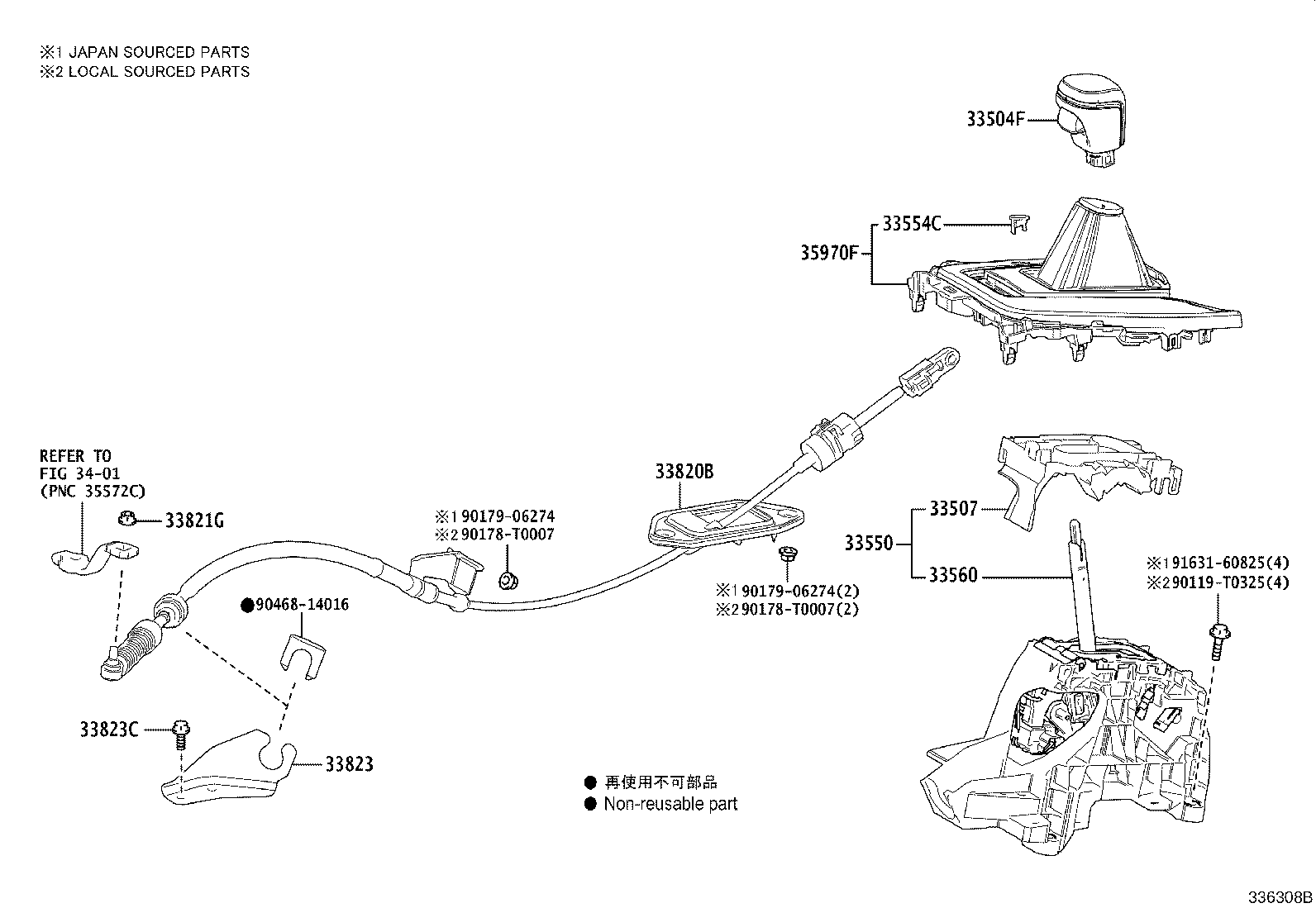

Click highlighted areas on diagram

diagram 33504F 33507 33550 33554C 33560 33820B 33821G 33823 33823C 3401 35970F 90119T0325 90178T0007 90178T0007 9017906274 9017906274 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02860C0

ZVG10..E..TAIW;ZSG10,ZVG10..N..(TH,VN);ZSG10,ZVG10..THP..(E,G)

BLACK,TRIM2#,3#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02040

ZSG10,ZVG10..RHD

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-02780

ZSG10..RHD

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02170

ZSG10,ZVG10..RHD

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-F4080

ZSG10..RHD

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-F4050

ZSG10..THP

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ZSG10,ZVG10..THP

(J)

 1
90178-T0019

ZSG10,ZVG10..THP

(L)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-F4020

ZSG10..THP

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08079

ZSG10,ZVG10..THP

(J)

 2
90119-T0102

ZSG10,ZVG10..THP

(L)

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02200C1

ZSG10..RHD

BLACK,TRIM2#,3#

 1
Common parts
90119-T0325
90178-T0007
90179-06274
90468-14016
91631-60825
Linked diagrams
3401
