ZSG10R-DHXGGT (2020)
Toyota Corolla Cross
Production
Jul 2020
-
Sep 9999
Engine
2ZRFBE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )2ZRFBE

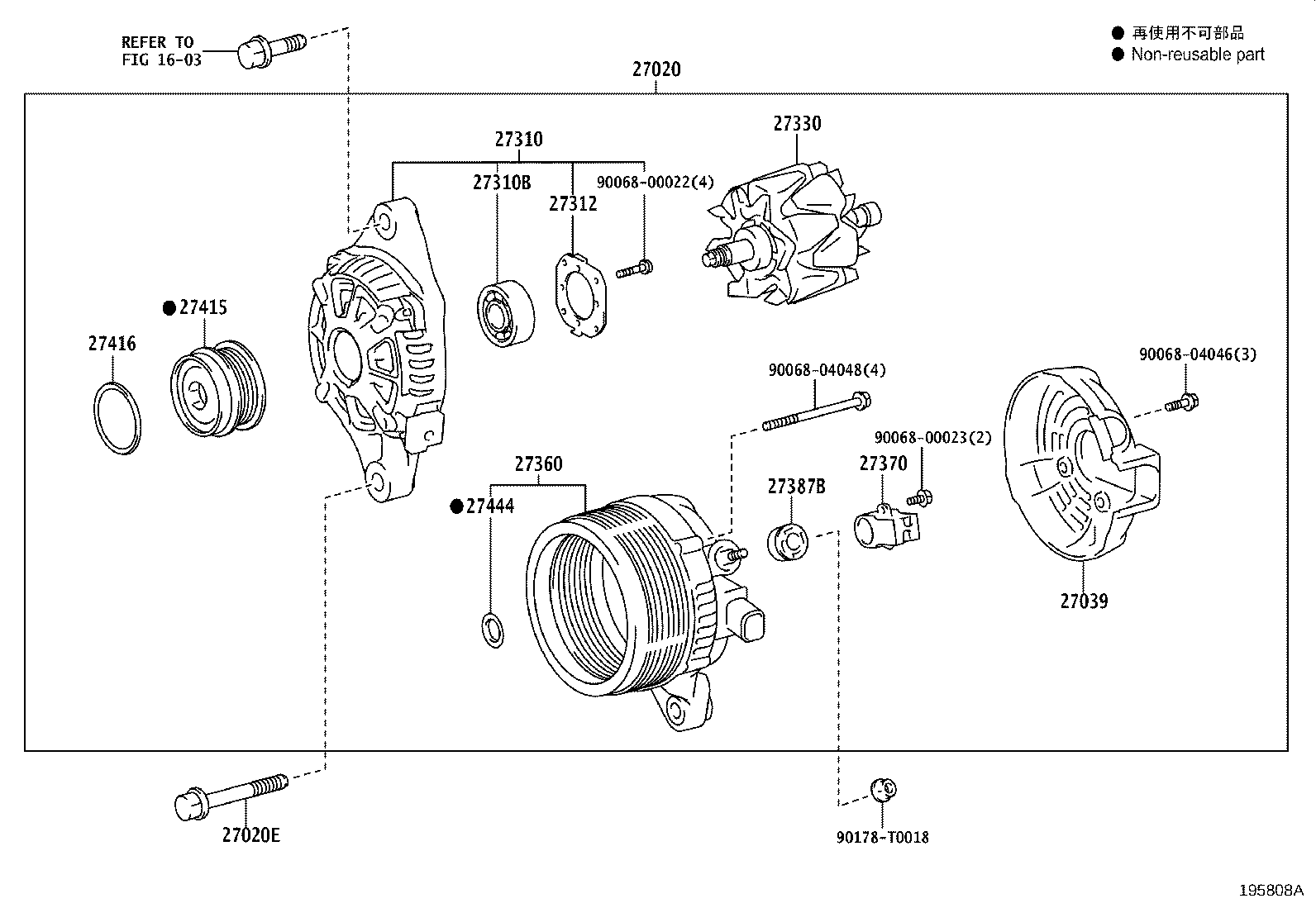

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0T490 |
2ZRFBE..ZSG10 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10307 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0V220 |
2ZRFBE..ZSG10 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0T450 |
2ZRFBE..ZSG10 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10050 |
2ZRFBE..ZSG10 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
2ZRFBE,2ZRFE..ZSG10..THP |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0V220 |
2ZRFBE..ZSG10 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0T450 |
2ZRFBE..ZSG10 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0M040 |
2ZRFBE,2ZRFE..ZSG10..THP |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0C020 |
2ZRFBE,2ZRFE..ZSG10..THP |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0T060 |
2ZRFBE..ZSG10 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
M20AFKS,2ZRFBE,2ZRFE..MXGA10,ZSG10..BZP,THP |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0Y180 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| Common parts | ||||
| 90068-00022 | ||||
| 90068-00023 | ||||
| 90068-04046 | ||||
| 90068-04048 | ||||
| 90178-T0018 | ||||
| Linked diagrams | ||||
| 1603 | ||||
