ZSG10L-EHXMKR (2021)

Toyota Corolla Cross

Production Jun 2021 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2007- )

Click highlighted areas on diagram

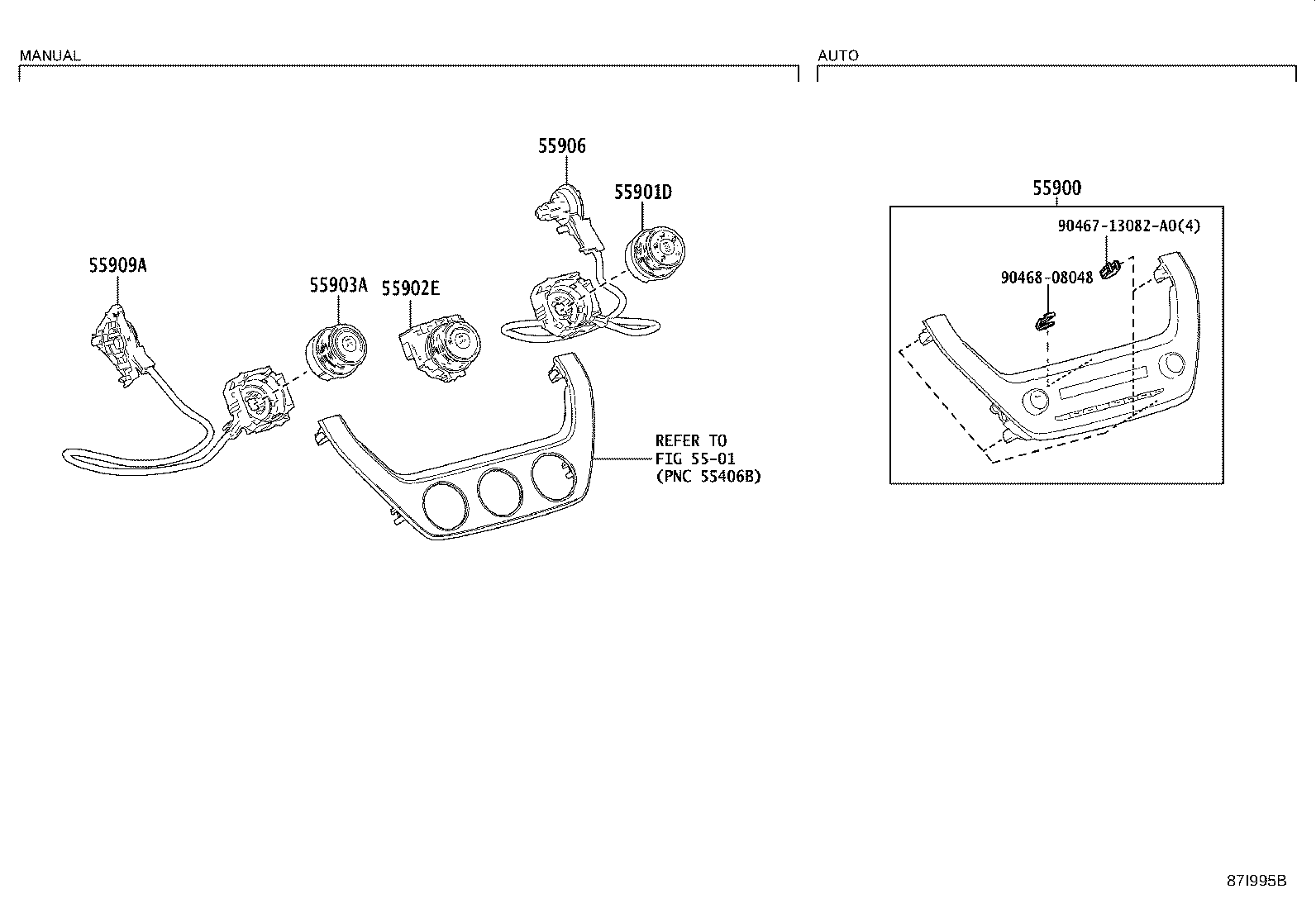

HEATER CONTROL

diagram 5501 55900 55901D 55902E 55903A 55906 55909A 9046713082A0 9046808048
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02G30B0

ZSG10,ZVG10..L,M

SILVER,TRIM2#

 1
Common parts
90467-13082A0
90468-08048
Linked diagrams
5501

ILLUST NO. 2 OF 3(2007- )LHD

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55086A 55950G 55990B 58861B 58862B 87114C 87201K 87201K 87211 87211A 87215J 87220 9011906951 9011906951 90119T0404 90119T0404 9015960431 90159T0014 90167T0012 90167T0012 90167T0012 90167T0012 90167T0012 90167T0012 90178T0007 9017906274 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-0A020

ZSG10,ZVG10..LHD..(THP,TWP)

 1
87215J - CLIP (FOR AIR REAR DUCT)
90467-05161C9

ZSG10,ZVG10..N..(GCC,TAIW,TH,VN);ZSG10,ZVG10..(THP,TWP)..(E,G,J,L,M)

BLACK

 1
Common parts
90119-06951
90119-T0404
90159-60431
90159-T0014
90167-T0012
90178-T0007
90179-06274
93568-55014

ILLUST NO. 3 OF 3(2007- )LHD

Click highlighted areas on diagram

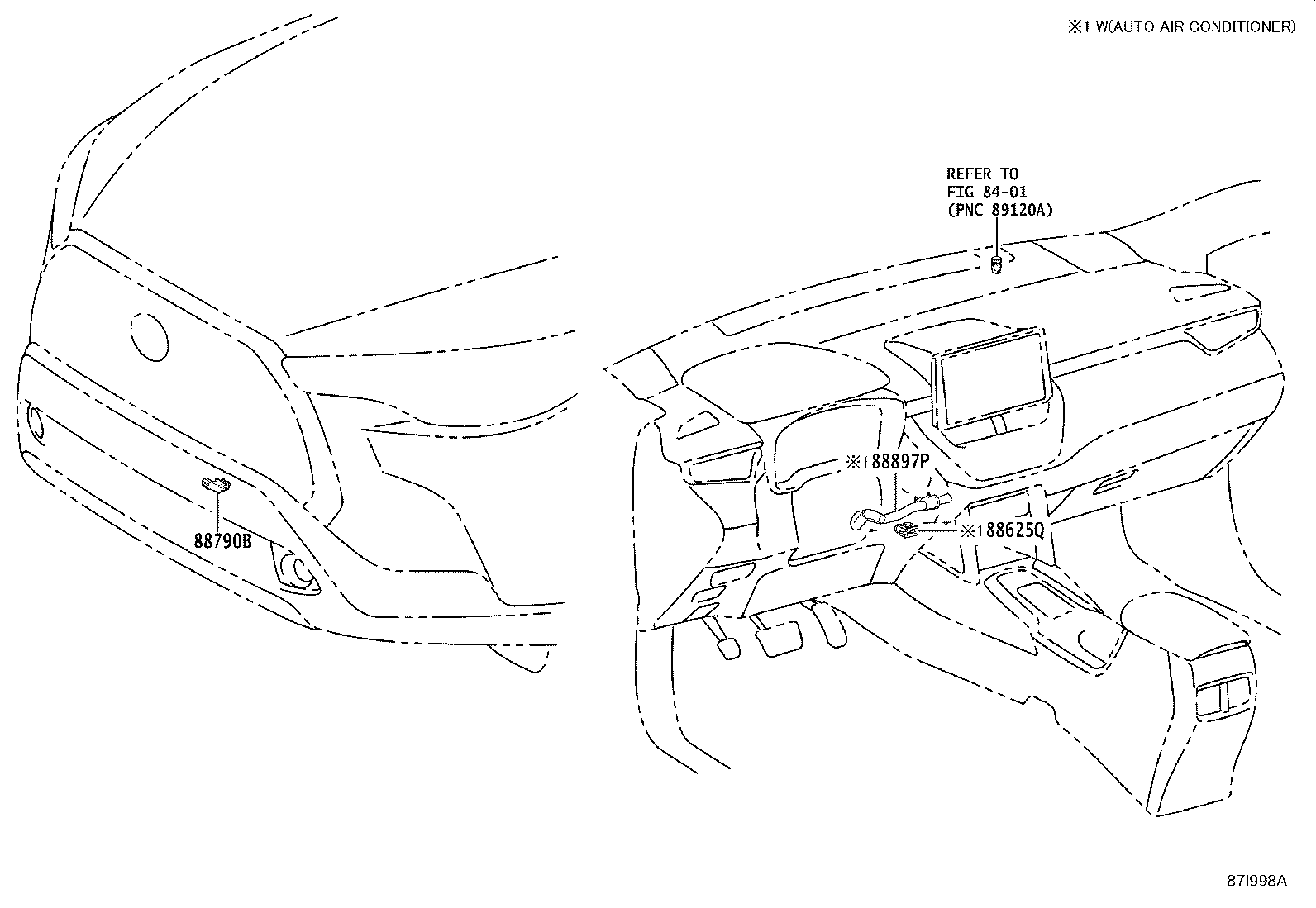

SENSOR

diagram 8401 88625Q 88790B 88897P
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

MXGA10..E,G;ZSG10..J..TAIW;ZSG10,ZVG10..E,G,L,M,N

 1
88790B - THERMISTOR ASSY
88790-28100

MXGA10,ZSG10,ZVG10

 1
Linked diagrams
8401
