ZSG10L-EHXMKR (2021)

Toyota Corolla Cross

Production Jun 2021 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2007- )

Click highlighted areas on diagram

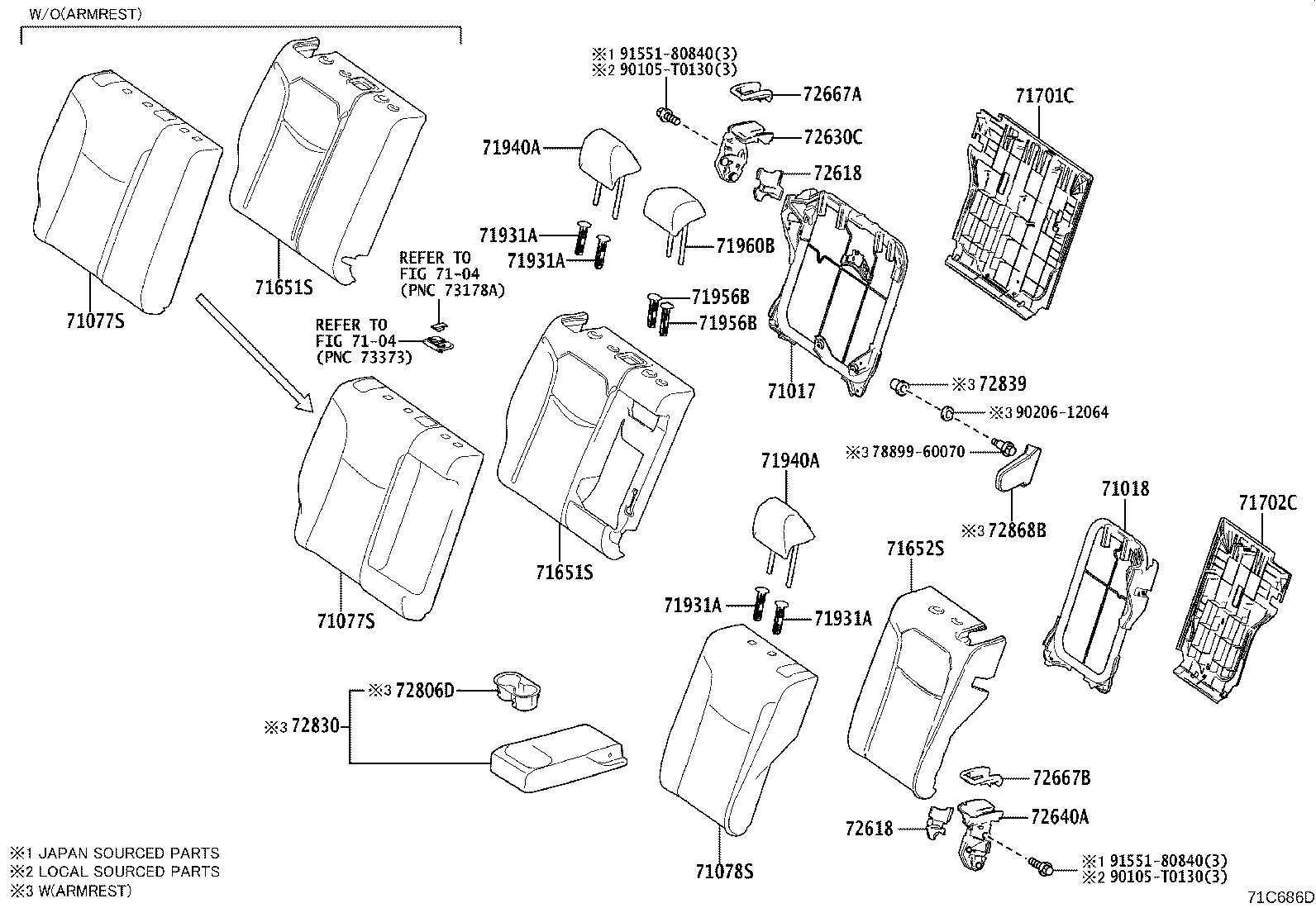

SEAT BACK

diagram 71017 71018 7104 7104 71077S 71077S 71078S 71651S 71651S 71652S 71701C 71702C 71931A 71931A 71931A 71931A 71940A 71940A 71956B 71956B 71960B 72618 72618 72630C 72640A 72667A 72667B 72806D 72830 72839 72868B 7889960070 90105T0130 90105T0130 9020612064 9155180840 9155180840
Part # Description Qty Price
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0A190C2

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

BALCK,TRIM2#

 1
71077-YY450A3

ZSG10,ZVG10..L,M

CKD COLOR,TRIM2#

 1
71077-0A190D2

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

TERRA ROSSA,TRIM3#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0A190C2

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

BALCK,TRIM2#

 1
71077-YY450A3

ZSG10,ZVG10..L,M

CKD COLOR,TRIM2#

 1
71077-0A190D2

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

TERRA ROSSA,TRIM3#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-0A040D2

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

TERRA ROSSA,TRIM3#

 1
71078-YY370A3

ZSG10,ZVG10..L,M

CKD COLOR,TRIM2#

 1
71078-0A040C2

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

BALCK,TRIM2#

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-YY020

ZSG10,ZVG10..L,M

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-YY020

ZSG10,ZVG10..L,M

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-YY010

ZSG10,ZVG10..L,M

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-0K050D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W(LOCK),TERRA ROSSA,TRIM3#

 2
71931-0K040C1

ZSG10,ZVG10..THP,TWP

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W/O(LOCK),TERRA ROSSA,TRIM3#

 2
71930-0K050C1

ZSG10,ZVG10..THP,TWP

W(LOCK),BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-0K050D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W(LOCK),TERRA ROSSA,TRIM3#

 2
71931-0K040C1

ZSG10,ZVG10..THP,TWP

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W/O(LOCK),TERRA ROSSA,TRIM3#

 2
71930-0K050C1

ZSG10,ZVG10..THP,TWP

W(LOCK),BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-0K050D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W(LOCK),TERRA ROSSA,TRIM3#

 2
71931-0K040C1

ZSG10,ZVG10..THP,TWP

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W/O(LOCK),TERRA ROSSA,TRIM3#

 2
71930-0K050C1

ZSG10,ZVG10..THP,TWP

W(LOCK),BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-0K050D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W(LOCK),TERRA ROSSA,TRIM3#

 2
71931-0K040C1

ZSG10,ZVG10..THP,TWP

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W/O(LOCK),TERRA ROSSA,TRIM3#

 2
71930-0K050C1

ZSG10,ZVG10..THP,TWP

W(LOCK),BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0A060D1

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

TERRA ROSSA,TRIM3#

 2
71940-0A060C1

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

BLACK,TRIM2#

 2
71940-0A060A2

ZSG10,ZVG10..L,M

CKD COLOR,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0A060D1

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

TERRA ROSSA,TRIM3#

 2
71940-0A060C1

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

BLACK,TRIM2#

 2
71940-0A060A2

ZSG10,ZVG10..L,M

CKD COLOR,TRIM2#

 2
71956B - SUPPORT, REAR SEAT HEADREST
71931-0K040D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W/O(LOCK),TERRA ROSSA,TRIM3#

 1
71931-0K040C1

ZSG10,ZVG10..THP,TWP

W/O(LOCK),BLACK,TRIM2#

 1
71930-0K050C1

ZSG10,ZVG10..THP,TWP

W(LOCK),BLACK,TRIM2#

 1
71930-0K050D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W(LOCK),TERRA ROSSA,TRIM3#

 1
71956B - SUPPORT, REAR SEAT HEADREST
71931-0K040D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W/O(LOCK),TERRA ROSSA,TRIM3#

 1
71931-0K040C1

ZSG10,ZVG10..THP,TWP

W/O(LOCK),BLACK,TRIM2#

 1
71930-0K050C1

ZSG10,ZVG10..THP,TWP

W(LOCK),BLACK,TRIM2#

 1
71930-0K050D0

ZSG10,ZVG10..(THP,TWP)..(E,G,J,N)

W(LOCK),TERRA ROSSA,TRIM3#

 1
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0A050C2

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

BLACK,TRIM2#

 1
71960-0A050A5

ZSG10,ZVG10..L,M

CKD COLOR,TRIM2#

 1
71960-0A050D2

ZSG10..G..GCC;ZVG10..TWP..E;ZSG10,ZVG10..(G,N)..TAIW

TERRA ROSSA,TRIM3#

 1
72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
72806-0A020C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-0A050A1

ZSG10,ZVG10..L,M

CKD COLOR,TRIM2#

 1
72839 - SHIM, REAR SEAT ARMREST HINGE
72839-22010

ZSG10,ZVG10;MXGA10..AGT;MXGA10..E..(BZ,GEN)

 1
72868B - COVER, CENTER ARMREST HINGE
72868-0A020C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
Common parts
78899-60070
90105-T0130
90206-12064
91551-80840
Linked diagrams
7104

ILLUST NO. 2 OF 3(2007- )

Click highlighted areas on diagram

SEAT CUSHION

diagram 71075B 71075B 71503A 71503A
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0A180A5

ZSG10..M

CKD COLOR,TRIM2#

 1
71075-0A180D2

ZSG10..G..GCC;ZSG10..(G,N)..TAIW

TERRA ROSSA,TRIM3#

 1
71075-0A180C2

ZSG10..G..GCC;ZSG10..(G,N)..TAIW

BALCK,TRIM2#

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0A180A5

ZSG10..M

CKD COLOR,TRIM2#

 1
71075-0A180D2

ZSG10..G..GCC;ZSG10..(G,N)..TAIW

TERRA ROSSA,TRIM3#

 1
71075-0A180C2

ZSG10..G..GCC;ZSG10..(G,N)..TAIW

BALCK,TRIM2#

 1

ILLUST NO. 3 OF 3(2007- )

Click highlighted areas on diagram

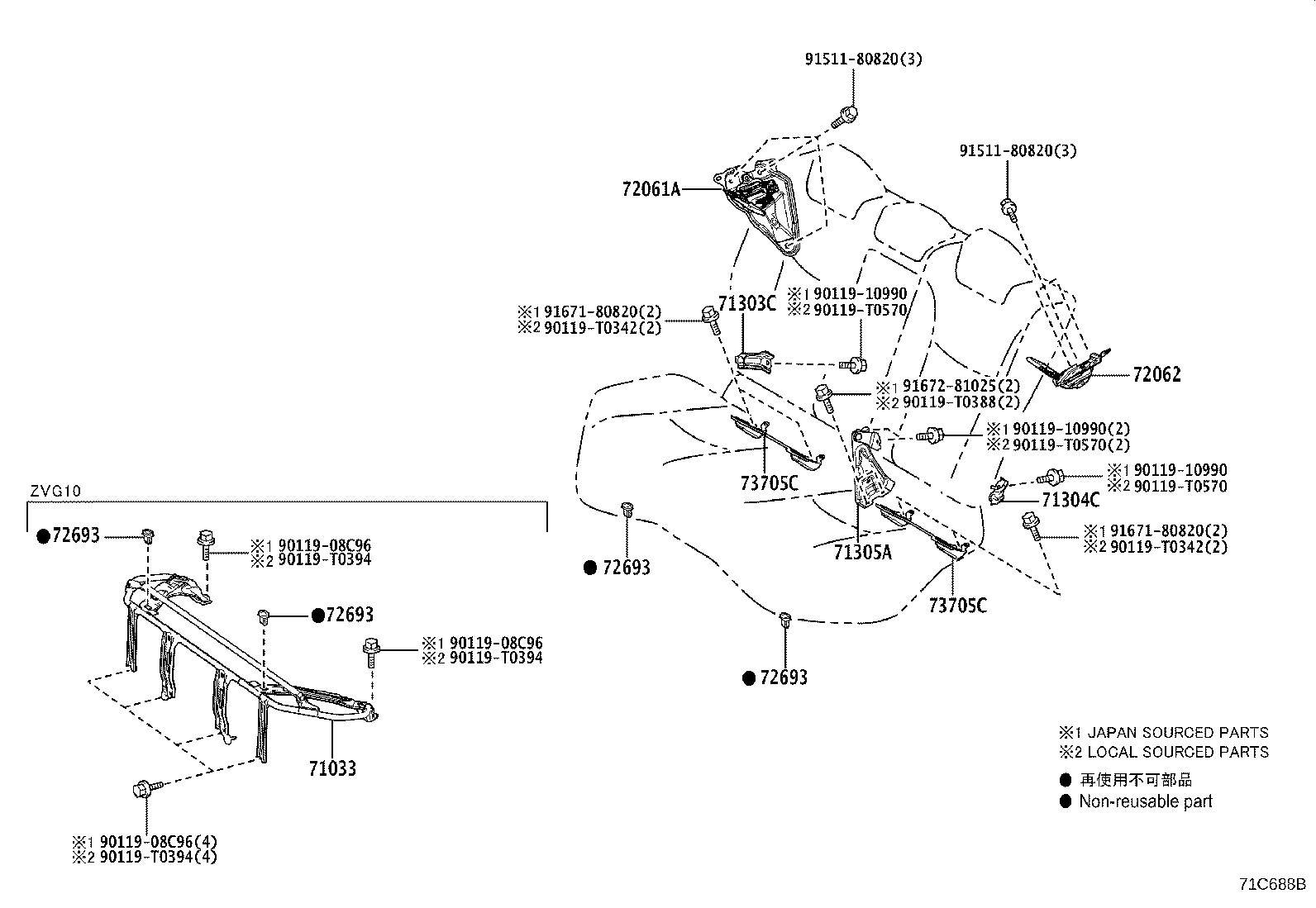

FITTING PARTS

diagram 71033 71303C 71304C 71305A 72061A 72062 72693 72693 72693 72693 73705C 73705C 9011908C96 9011908C96 9011908C96 9011910990 9011910990 9011910990 90119T0342 90119T0342 90119T0388 90119T0394 90119T0394 90119T0394 90119T0570 90119T0570 90119T0570 9151180820 9151180820 9167180820 9167180820 9167281025
Part # Description Qty Price
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-10060

MXGA10,ZSG10,ZVG10

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-10100

MXGA10,ZSG10,ZVG10

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

MXGA10,ZSG10,ZVG10

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

MXGA10,ZSG10,ZVG10

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

MXGA10,ZSG10,ZVG10

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

MXGA10,ZSG10,ZVG10

 2
Common parts
90119-08C96
90119-10990
90119-T0342
90119-T0388
90119-T0394
90119-T0570
91511-80820
91671-80820
91672-81025
