ZSG10L-EHXMKR (2021)

Toyota Corolla Cross

Production Jun 2021 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

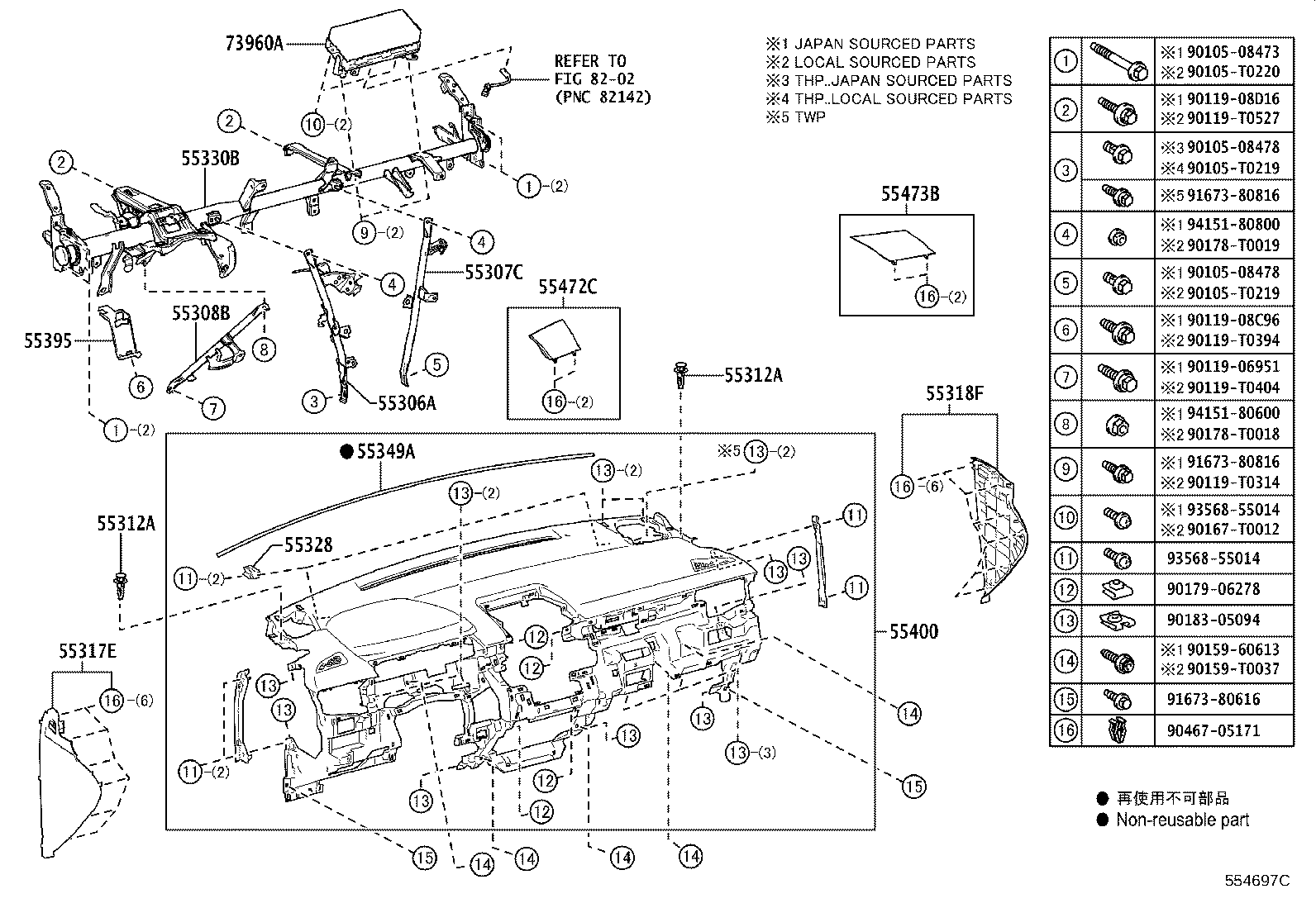

ILLUST NO. 1 OF 2(2007- )LHD

Click highlighted areas on diagram

diagram 55306A 55307C 55308B 55312A 55312A 55317E 55318F 55328 55330B 55349A 55395 55400 55472C 55473B 73960A 8202 9010508473 9010508478 9010508478 90105T0219 90105T0219 90105T0220 9011906951 9011908C96 9011908D16 90119T0314 90119T0394 90119T0404 90119T0527 9015960613 90159T0037 90167T0012 90178T0018 90178T0019 9017906278 9018305094 9046705171 9167380616 9167380816 9167380816 9356855014 9356855014 9415180600 9415180800
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-0A030

ZSG10,ZVG10..LHD..(THP,TWP)

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-0A050

ZSG10,ZVG10..LHD..(THP,TWP)

 1
55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55308-0A030

ZSG10,ZVG10..LHD..(THP,TWP)

 1
55317E - PANEL, INSTRUMENT SIDE, NO.1
55317-0A030C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55318F - PANEL, INSTRUMENT SIDE, NO.2
55318-0A040C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-12430

MXGA10,ZSG10,ZVG10

 2
55395 - BRACKET, INSTRUMENT PANEL TO PEDAL
55395-0A020

ZSG10,ZVG10..LHD..(THP,TWP)

 1
55400 - PAD ASSY, INSTRUMENT PANEL SAFETY
55400-0A020C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1
55472-0A020C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2
55473-0A020C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-0A010

ZSG10,ZVG10..THP,TWP

 1
Common parts
90105-08473
90105-08478
90105-T0219
90105-T0220
90119-06951
90119-08C96
90119-08D16
90119-T0314
90119-T0394
90119-T0404
90119-T0527
90159-60613
90159-T0037
90167-T0012
90178-T0018
90178-T0019
90179-06278
90183-05094
90467-05171
91673-80616
91673-80816
93568-55014
94151-80600
94151-80800
Linked diagrams
8202

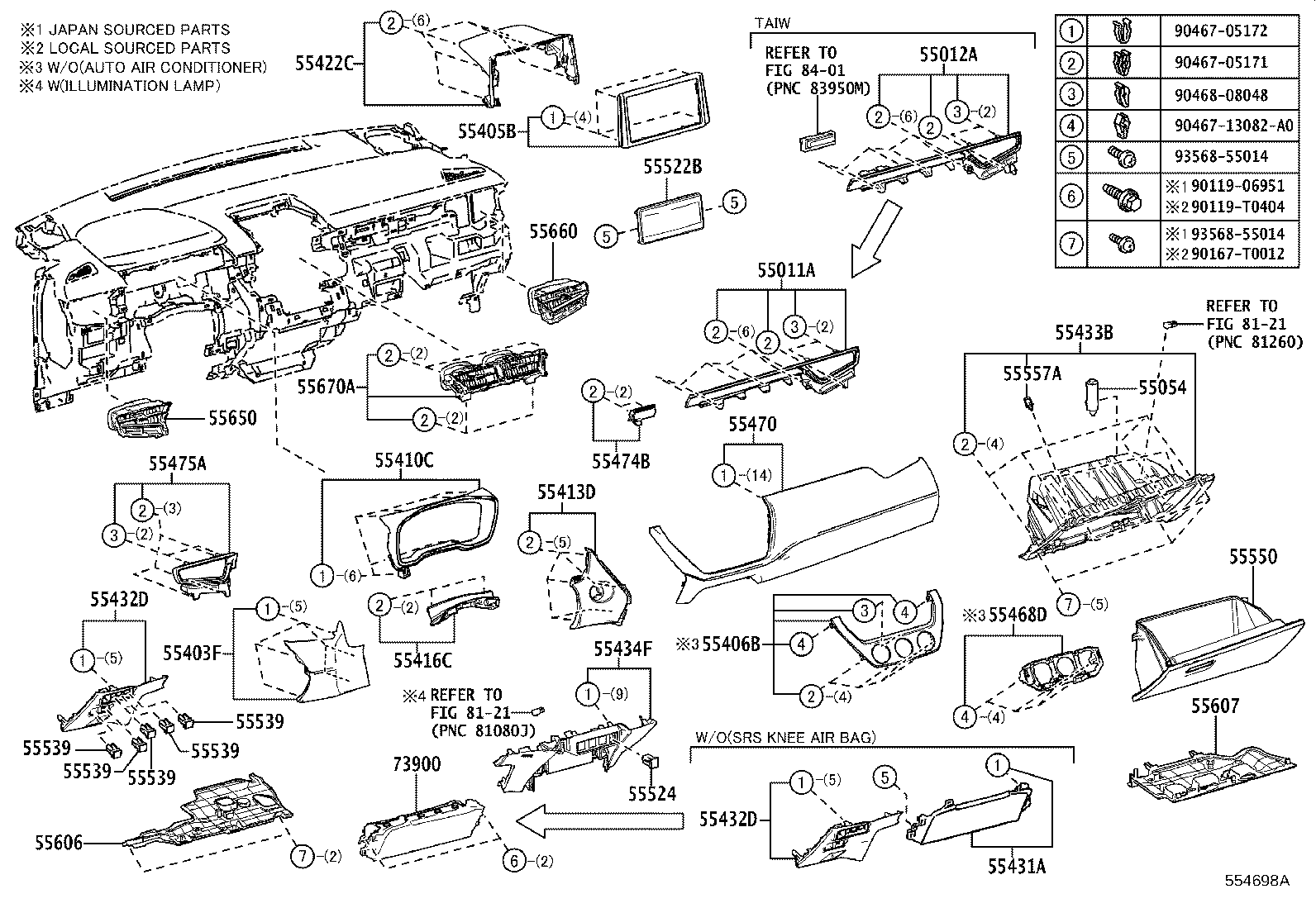

ILLUST NO. 2 OF 2(2007- )LHD..THP,TWP

Click highlighted areas on diagram

diagram 55011A 55012A 55054 55403F 55405B 55406B 55410C 55413D 55416C 55422C 55431A 55432D 55432D 55433B 55434F 55468D 55470 55474B 55475A 55522B 55524 55539 55539 55539 55539 55539 55550 55557A 55606 55607 55650 55660 55670A 73900 8121 8121 8401 9011906951 90119T0404 90167T0012 9046705171 9046705172 9046713082A0 9046808048 9356855014 9356855014
Part # Description Qty Price
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-02240C1

ZSG10,ZVG10..L,M

BLACK/BLACK,TRIM2#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-47010

MXGA10,ZSG10,ZVG10

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-0A040C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-0A150C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55432-0A040C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55432-0A040C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-02620C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-0A050C0

ZVG10..(G,N)..GCC;ZSG10..LHD..(E,J,N);ZSG10..LHD..G..(GEN,TAIW);ZVG10..LHD..(THP,TWP)..(E,G,N)..(GEN,PH,TAIW,VN)

BLACK,TRIM2#,3#

 1
55434-0A050C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL
55470-0A020D0

ZSG10,ZVG10..LHD..(THP,TWP)..(E,G,J,N)

TERRA ROSSA,TRIM3#

 1
55470-0A020C0

ZSG10,ZVG10..LHD..(THP,TWP)

BLACK,TRIM2#

 1
55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL
55474-0A230C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-0A080C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55524 - COVER, SWITCH BACE HOLE
55524-02030C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-02220C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-02220C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-02220C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-02220C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-02220C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-02580C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-52030

MXGA10,ZSG10,ZVG10

 2
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-0A010C0

ZSG10,ZVG10..LHD..(THP,TWP)..(E,G,J,N)..(GEN,PH,TAIW,VN)

BLACK,TRIM2#,3#

 1
Common parts
90119-06951
90119-T0404
90167-T0012
90467-05171
90467-05172
90467-13082A0
90468-08048
93568-55014
Linked diagrams
8121
8401
