ZSG10L-EHXMKR (2021)

Toyota Corolla Cross

Production Jun 2021 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )ZSG10

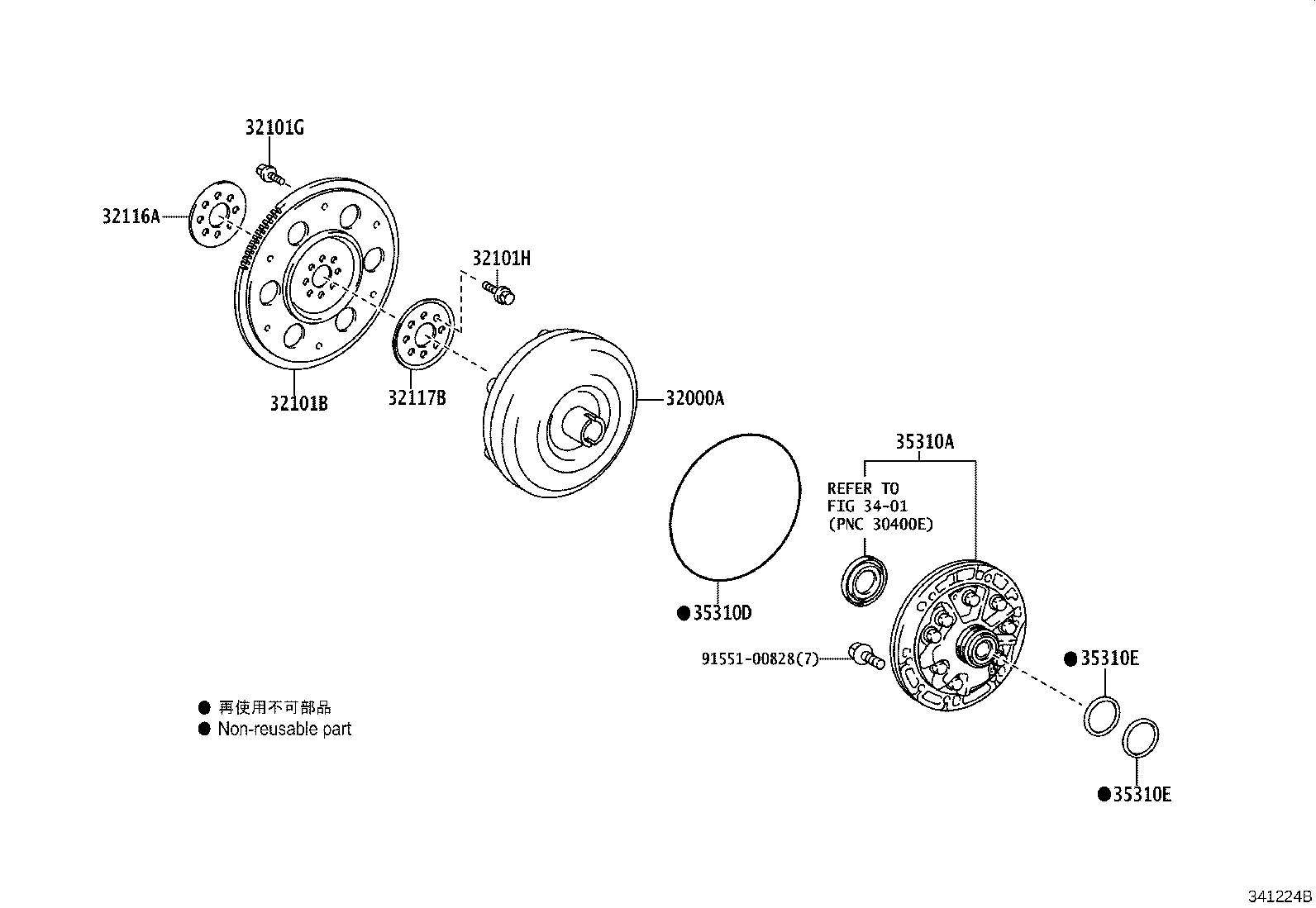

Click highlighted areas on diagram

K313

diagram 32000A 32101B 32101G 32101H 32116A 32117B 3401 35310A 35310D 35310E 35310E 9155100828
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-12500

ZSG10

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

ZSG10

*8-1.25PX12-8.4,BLACK

 1
90119-08498

ZSG10

*8-1.25PX12-8,SILVER WHITE

 5
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

ZSG10..E,G,J,N

 8
35310A - PUMP ASSY, FRONT OIL
35310-12170

ZSG10

 1
35310D - RING, O (FOR FRONT OIL PUMP)
90301-99202

ZSG10

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-12031

ZSG10

 2
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-12031

ZSG10

 2
Common parts
91551-00828
Linked diagrams
3401
