ZSG10L-EHXMKR (2021)

Toyota Corolla Cross

Production Jun 2021 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZRFBE,2ZRFE

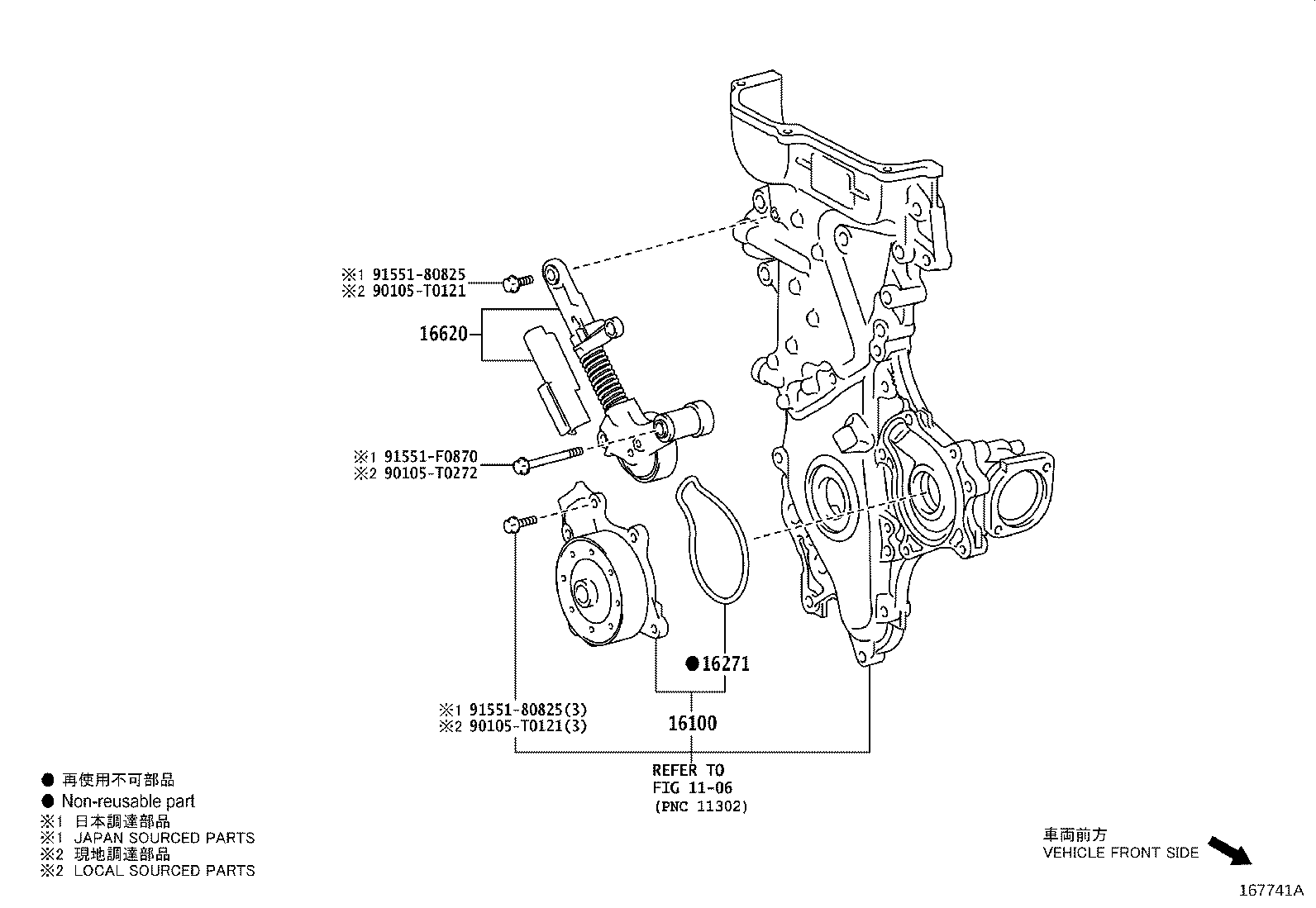

Click highlighted areas on diagram

diagram 1106 16100 16271 16620 90105T0121 90105T0121 90105T0272 9155180825 9155180825 91551F0870
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09740

2ZRFBE,2ZRFE..ZSG10

(L)

 1
16100-39565

2ZRFBE,2ZRFE..ZSG10

(J)

 1
16271 - GASKET, WATER PUMP
16271-37030

2ZRFBE,2ZRFE..ZSG10

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-37030

2ZRFBE,2ZRFE..ZSG10..IDN,MA,TAIW,TH,VN

 1
Common parts
90105-T0121
90105-T0272
91551-80825
91551-F0870
Linked diagrams
1106
