ZSG10L-EHXMKR (2021)

Toyota Corolla Cross

Production Jun 2021 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZR#

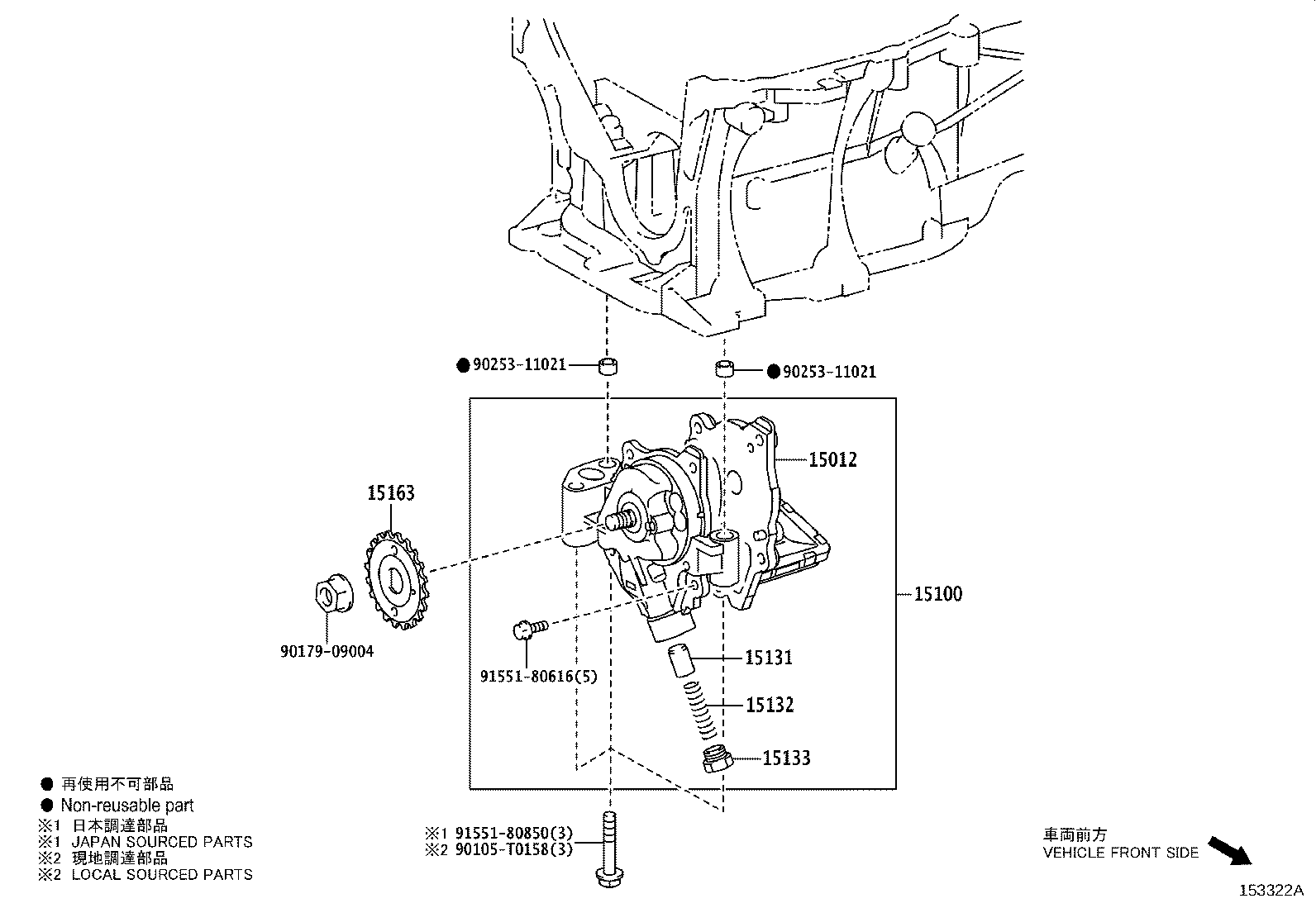

Click highlighted areas on diagram

diagram 15012 15100 15131 15132 15133 15163 90105T0158 9017909004 9025311021 9025311021 9155180616 9155180850
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-37010

2ZRFBE,2ZRFE..ZSG10

MADE IN JAPAN

 1
15012-0T070

2ZRFBE,2ZRFE..ZSG10

MADE IN THAILAND

 1
15100 - PUMP ASSY, OIL
15100-37030

2ZRFBE,2ZRFE..ZSG10

(J)

 1
15100-0T070

2ZRFBE,2ZRFE..ZSG10

(L)

 1
15131 - VALVE, OIL PUMP RELIEF
15131-0A040

2ZR#..ZSG10,ZVG10

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46060

2ZR#..ZSG10,ZVG10

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-0T070

2ZRFBE,2ZRFE..ZSG10

MADE IN THAILAND

 1
15133-28020

2ZRFBE,2ZRFE..ZSG10

MADE IN JAPAN

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-28010

2ZR#..ZSG10,ZVG10..THP,TWP

(J)

 1
15163-0H031

2ZR#..ZSG10,ZVG10..THP,TWP

(L)

 1
Common parts
90105-T0158
90179-09004
90253-11021
91551-80616
91551-80850
