ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2007- )LHD

Click highlighted areas on diagram

DAMPER SERVO

diagram 87050C 87050D 87050E 87130K
Part # Description Qty Price
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-02800

ZSG10..J..TAIW;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-02790

ZSG10..J..TAIW;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02810

ZSG10..J..TAIW;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1

ILLUST NO. 1 OF 2(2010- )TWP

Click highlighted areas on diagram

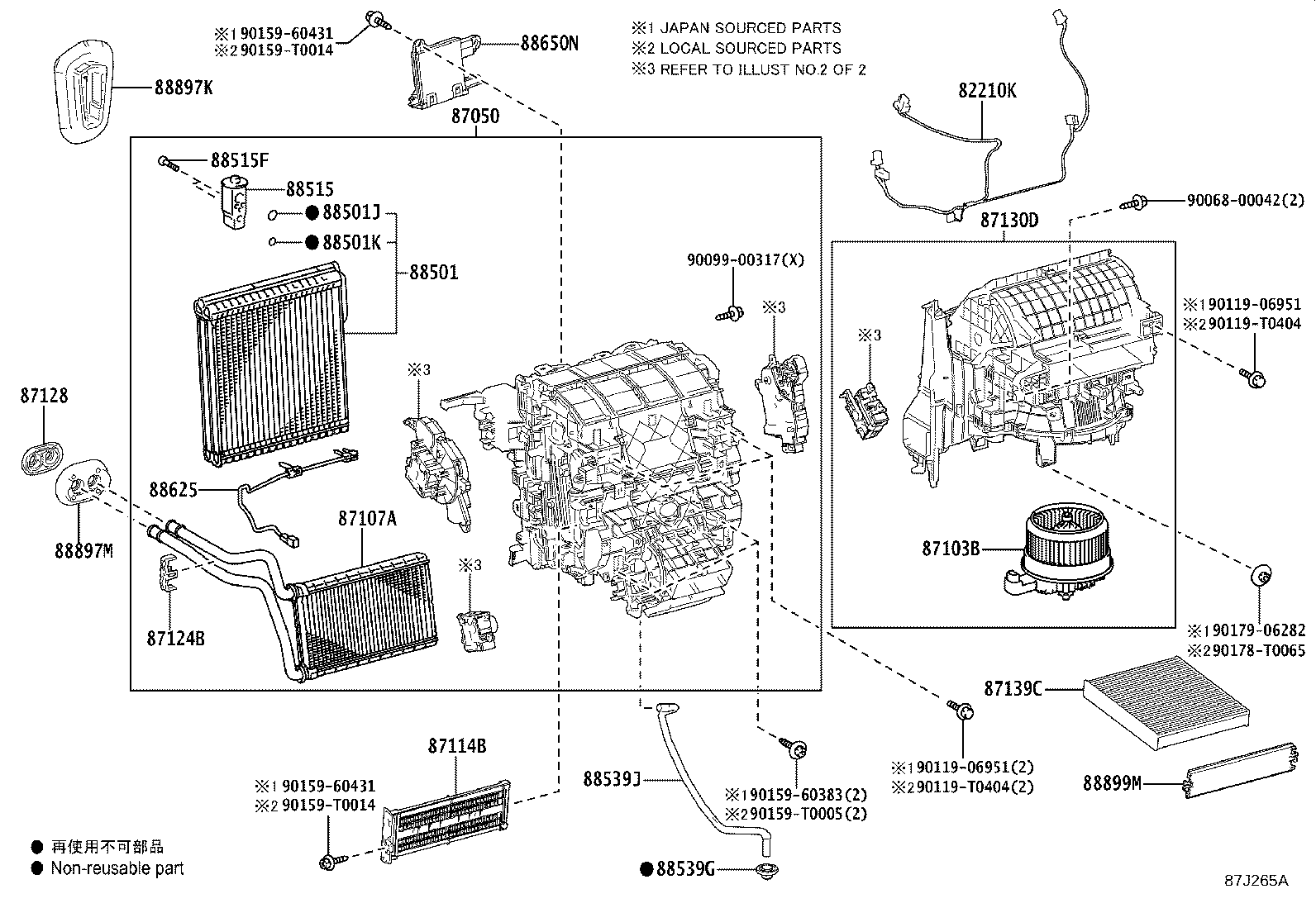

AUTO AIR CONDITIONER

diagram 82210K 87050 87103B 87107A 87114B 87124B 87128 87130D 87139C 88501 88501J 88501K 88515 88515F 88539G 88539J 88625 88650N 88897K 88897M 88899M 9006800042 9009900317 9011906951 9011906951 90119T0404 90119T0404 9015960383 9015960431 9015960431 90159T0005 90159T0014 90159T0014 90178T0065 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-02530

ZVG10..TAIW;ZSG10..J..TAIW;ZSG10..TWP..(G,M,N)

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02T80

ZSG10..LHD..E

 1
87050-0ZB20

ZSG10..J..TAIW;ZSG10..TWP..(G,M,N)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0A080

ZSG10..J..TAIW;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02340

ZSG10,ZVG10..TWP

 1
87114B - COVER, HEATER
87114-02220

ZSG10,ZVG10..TWP

 1
87124B - CLAMP, HEATER
87124-06130

ZSG10,ZVG10..TWP

 1
87128 - GROMMET, HEATER
87128-28010

MXGA10,ZSG10,ZVG10

 1
87130D - BLOWER ASSY
87130-02B71

ZSG10..J..TAIW;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1
87139C - FILTER, CLEAN AIR
87139-58010

MXGA10,ZSG10,ZVG10..BZP,TWP

DEODORANT FILTER

 1
87139-02210

ZSG10,ZVG10..GCC

POLLEN FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02580

ZSG10..TWP

 1
88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION)
90099-14121

ZSG10..J..TAIW;MXGA10,ZSG10,ZVG10..(BZP,TWP)..(E,G,L,M,N)

ID=13.4,OD=18.2

 1
88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID)
90099-14120

ZSG10..J..TAIW;MXGA10,ZSG10,ZVG10..(BZP,TWP)..(E,G,L,M,N)

ID=10.8,OD=15.6

 1
88515 - VALVE, COOLER EXPANSION
88515-02700

ZSG10..TWP;ZVG10..TAIW

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04597

ZSG10..J..TAIW;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 2
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010

MXGA10,ZSG10,ZVG10..BZP,TWP

 1
88539J - HOSE, DRAIN COOLER
88539-02480

ZSG10,ZVG10..TWP

 1
88625 - THERMISTOR, COOLER, NO.1
88620-02170

ZSG10..TWP;ZVG10..TAIW

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0A040

ZSG10..(G,N)..GCC

 1
88897K - GROMMET, (FOR COOLER PIPE)
88899-02410

ZSG10..TWP;ZVG10..TAIW

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-02180

ZSG10,ZVG10..TWP

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88548-02200

ZSG10,ZVG10..TWP

 1
Common parts
90068-00042
90099-00317
90119-06951
90119-T0404
90159-60383
90159-60431
90159-T0005
90159-T0014
90178-T0065
90179-06282
