ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2010- )GCC

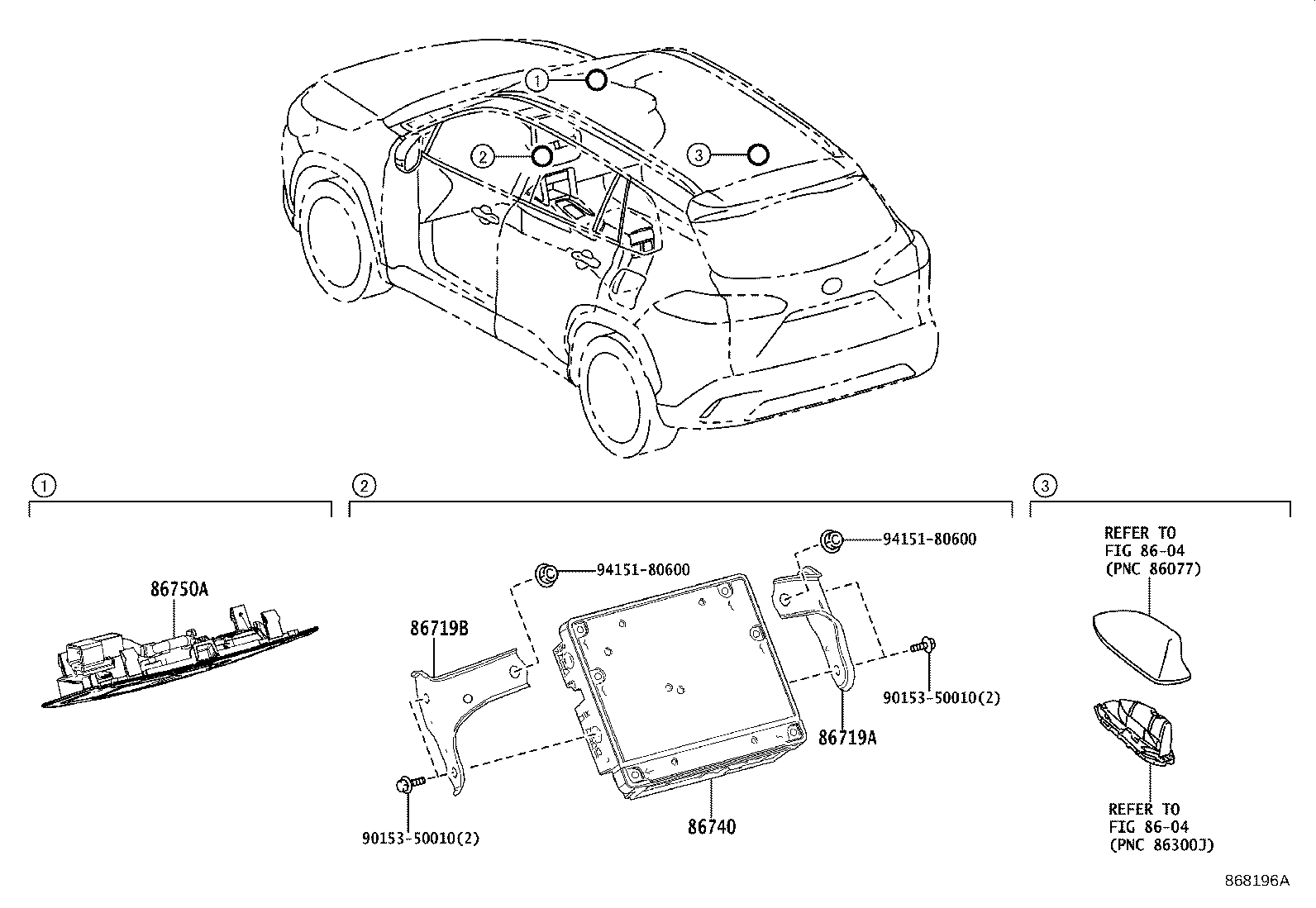

Click highlighted areas on diagram

diagram 8604 8604 86719A 86719B 86740 86750A 9015350010 9015350010 9415180600 9415180600
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-0A030

ZSG10..G..GCC

UAE SPEC&MOON ROOF-WITHOUT

 1
86719-0A030

ZSG10,ZVG10..GCC

UAE SPEC

 1
86719B - BRACKET, TELEPHONE NO.2
86719-0A040

ZSG10..G..GCC

UAE SPEC&MOON ROOF-WITHOUT

 1
86719-0A040

ZSG10,ZVG10..GCC

UAE SPEC

 1
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-62120

ZSG10,ZVG10..GCC

UAE SPEC

 1
86740-62120

ZSG10..G..GCC

UAE SPEC&MOON ROOF-WITHOUT

 1
86750A - SWITCH ASSY, MAYDAY
86750-16010C0

ZSG10..G..GCC

UAE SPEC&MOON ROOF-WITHOUT,BLACK,TRIM0#,2#,3#

 1
Common parts
90153-50010
94151-80600
Linked diagrams
8604
