ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

RECEIVER

diagram 5501 8603 86120 86120A 86145 86211 86211 86212 86212 9015350015 9015350015 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0A100

ZSG10,ZVG10..GCC

PANASONIC,ID=510447,AUDIO-CD & *BT & 6SPEAKER

 1
86145 - CONNECTOR, ANTENNA MALE
86145-52010

ZSG10..E..VN;MXGA10..(G,N)..GEN;ZSG10..GCC,IDN,MA,TH;ZVG10..GCC,IDN,MA,TH,VN

 1
86211 - BRACKET, RADIO, NO.1
86211-02590

ZSG10,ZVG10..GCC

AUDIO-*DA(8INCH) & 6SPEAKER

 1
86211-02600

ZSG10..J..GCC;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1
86211-02590

ZSG10,ZVG10..GCC

AUDIO-CD & *BT & 6SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-02590

ZSG10,ZVG10..GCC

AUDIO-*DA(8INCH) & 6SPEAKER

 1
86211-02600

ZSG10..J..GCC;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1
86211-02590

ZSG10,ZVG10..GCC

AUDIO-CD & *BT & 6SPEAKER

 1
86212 - BRACKET, RADIO, NO.2
86212-02590

ZSG10,ZVG10..GCC

AUDIO-*DA(8INCH) & 6SPEAKER

 1
86212-02600

ZSG10..J..GCC;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1
86212-02590

ZSG10,ZVG10..GCC

AUDIO-CD & *BT & 6SPEAKER

 1
86212 - BRACKET, RADIO, NO.2
86212-02590

ZSG10,ZVG10..GCC

AUDIO-*DA(8INCH) & 6SPEAKER

 1
86212-02600

ZSG10..J..GCC;ZSG10,ZVG10..TWP..(E,G,L,M,N)

 1
86212-02590

ZSG10,ZVG10..GCC

AUDIO-CD & *BT & 6SPEAKER

 1
Common parts
90153-50015
91673-80616
Linked diagrams
5501
8603

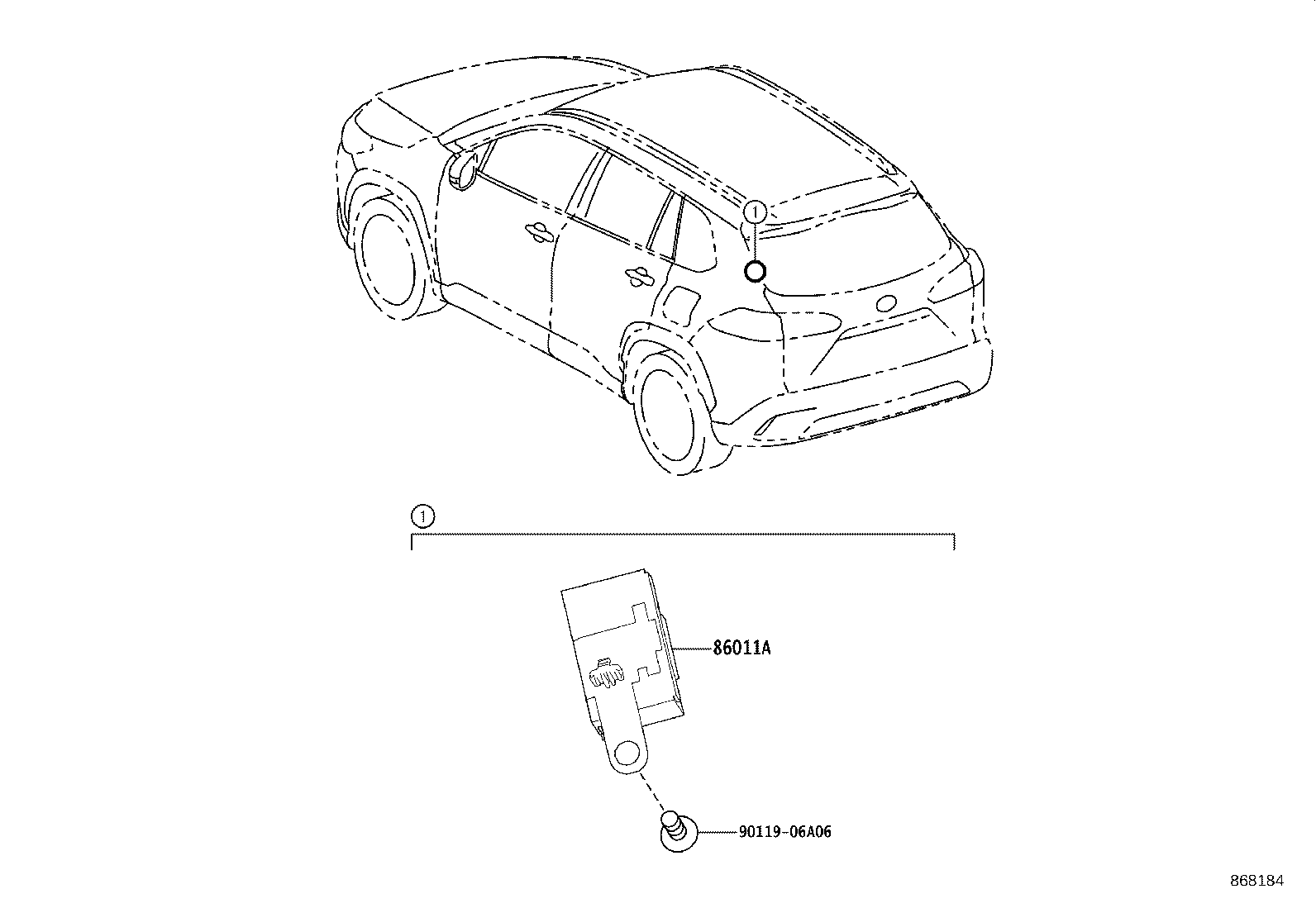

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 9011906A06
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04204

MXGA10,ZSG10,ZVG10

 1
Common parts
90119-06A06
