ZSG10L-EHXGKV (2020)
Toyota Corolla Cross
Production
Oct 2020
-
Sep 9999
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2010- )TWP

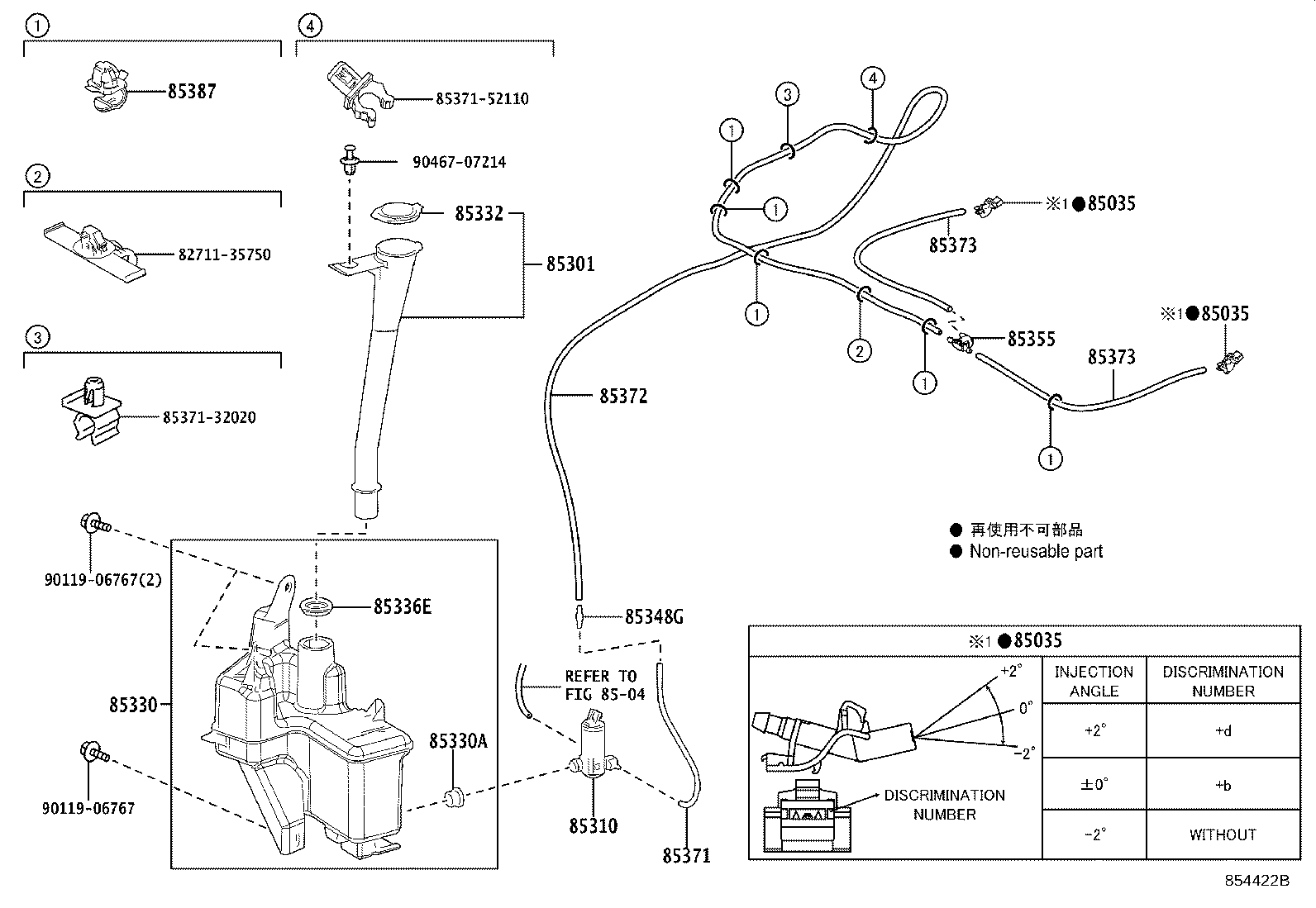

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
MXGA10,ZSG10,ZVG10 ANGLE -2 |
2 | ||
| 85381-30220 |
MXGA10,ZSG10,ZVG10 ANGLE 0 |
2 | ||
| 85381-30240 |
MXGA10,ZSG10,ZVG10 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
MXGA10,ZSG10,ZVG10 ANGLE -2 |
2 | ||
| 85381-30220 |
MXGA10,ZSG10,ZVG10 ANGLE 0 |
2 | ||
| 85381-30240 |
MXGA10,ZSG10,ZVG10 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
MXGA10,ZSG10,ZVG10 ANGLE -2 |
2 | ||
| 85381-30220 |
MXGA10,ZSG10,ZVG10 ANGLE 0 |
2 | ||
| 85381-30240 |
MXGA10,ZSG10,ZVG10 ANGLE +2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-0A020 |
ZSG10,ZVG10..THP,TWP |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0A040 |
MXGA10,ZSG10,ZVG10..BZP,TWP |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-0A050 |
ZSG10,ZVG10..TWP |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-0A020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-02330 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZSG10,ZVG10..TWP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-33389 |
ZSG10,ZVG10..THP,TWP L=250 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33393 |
MXGA10,ZSG10,ZVG10 L=2300 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33258 |
ZSG10,ZVG10..TWP L=430 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33258 |
ZSG10,ZVG10..TWP L=430 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85371-12040 |
MXGA10,ZSG10,ZVG10 |
5 | ||
| Common parts | ||||
| 82711-35750 | ||||
| 85371-32020 | ||||
| 85371-52110 | ||||
| 90119-06767 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 8504 | ||||
