ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )THP,TWP

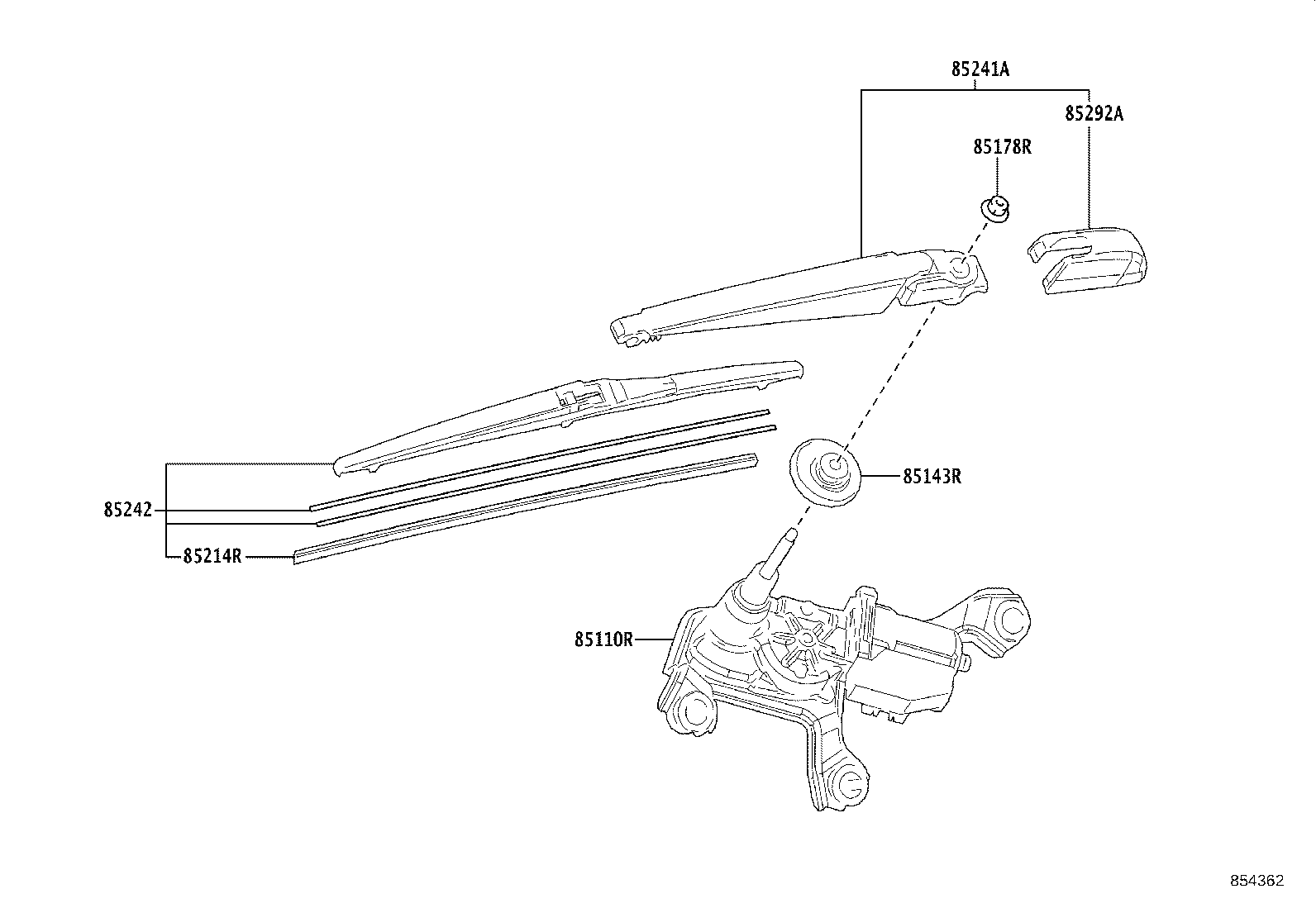

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-0A010

ZSG10,ZVG10..THP,TWP

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-28070

ZSG10,ZVG10..THP,TWP

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90182-T0005

ZSG10,ZVG10..THP,TWP

 1
85214R - RUBBER, REAR WIPER
85214-0A120

ZSG10,ZVG10..THP,TWP

 1
85241A - ARM, REAR WIPER
85241-0K060

ZSG10,ZVG10..THP,TWP

 1
85242 - BLADE, RR WIPER
85242-0A010

ZSG10,ZVG10..THP,TWP

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-0K080

ZSG10,ZVG10..THP,TWP

 1
