ZSG10L-EHXGKV (2020)
Toyota Corolla Cross
ILLUST NO. 7 OF 9(2007- )LHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7101 | ||||
ILLUST NO. 6 OF 9(2007- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
MXGA10..G,N;MXGA10,ZSG10..(BZP,TWP)..(E,J)..(AGT,GCC,GEN,TAIW) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02E00 |
ZSG10..G..GCC;ZVG10..E..GCC QATAR SPEC&ACTIVE SAFETY PACKAGE-WITH&CRUISE CONTROL-WITH(HIGH SPEED *ACC) |
1 | ||
| 84250-02E00 |
ZSG10..G..GCC;ZVG10..E..GCC UAE SPEC&ACTIVE SAFETY PACKAGE-WITH&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&AUDIO-*DA(8INCH) & 6SPEAKER |
1 | ||
| 84250-02E00 |
ZSG10..G..GCC;ZVG10..E..GCC LEBANON SPEC&ACTIVE SAFETY PACKAGE-WITH&CRUISE CONTROL-WITH(HIGH SPEED *ACC) |
1 | ||
| 84250-02E00 |
ZSG10..G..GCC;ZVG10..E..GCC SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-WITH&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&AUDIO-*DA(8INCH) & 6SPEAKER |
1 | ||
| 84250-02E00 |
ZSG10..G..GCC;ZVG10..E..GCC JORDAN SPEC&ACTIVE SAFETY PACKAGE-WITH&CRUISE CONTROL-WITH(HIGH SPEED *ACC) |
1 | ||
| 84250-02D70 |
ZVG10..GCC;ZSG10..G..GCC |
1 | ||
| 84250-0A070 |
ZSG10,ZVG10..L,M |
1 | ||
| 84250-02E00 |
ZSG10..G..GCC;ZVG10..E..GCC ACTIVE SAFETY PACKAGE-WITH&CRUISE CONTROL-WITH(HIGH SPEED *ACC) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-06070 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-02040 |
ZSG10,ZVG10..TWP |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-02040 |
ZSG10,ZVG10..TWP |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-02150 |
ZVG10..G..GCC;ZSG10..(G,N)..GCC;ZSG10,ZVG10..TWP..(E,L,M) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-02150 |
ZVG10..G..GCC;ZSG10..(G,N)..GCC;ZSG10,ZVG10..TWP..(E,L,M) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33040 |
MXGA10..G,N;MXGA10,ZSG10..(BZP,TWP)..(E,J)..(AGT,GCC,GEN,TAIW) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0A080 |
ZSG10..TWP;ZVG10..GCC;ZVG10..(G,L,M,N)..TAIW |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0A080 |
ZSG10..TWP;ZVG10..GCC;ZVG10..(G,L,M,N)..TAIW |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-02110 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 90159-T0007 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 1 OF 9(2007- )ZSG10
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82729-20040 |
MXGA10,ZSG10,ZVG10..BZP,TWP |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-0Z190 |
ZSG10,ZVG10..TWP |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 8946A-0A050 |
ZSG10,ZVG10..TWP |
1 | ||
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-10410 |
ZSG10 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZSG10,ZVG10 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZSG10 |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZSG10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10080 |
ZSG10,ZVG10 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12260 |
ZSG10 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZSG10 |
1 | ||
| 89615-20090 |
ZSG10 MARK 89615-20090 |
1 | ||
| 89615-02020 |
ZSG10 MARK 89615-02020 |
1 | ||
| Common parts | ||||
| 90105-T0178 | ||||
| 90105-W0140 | ||||
| 90430-12221 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91673-80616 | ||||

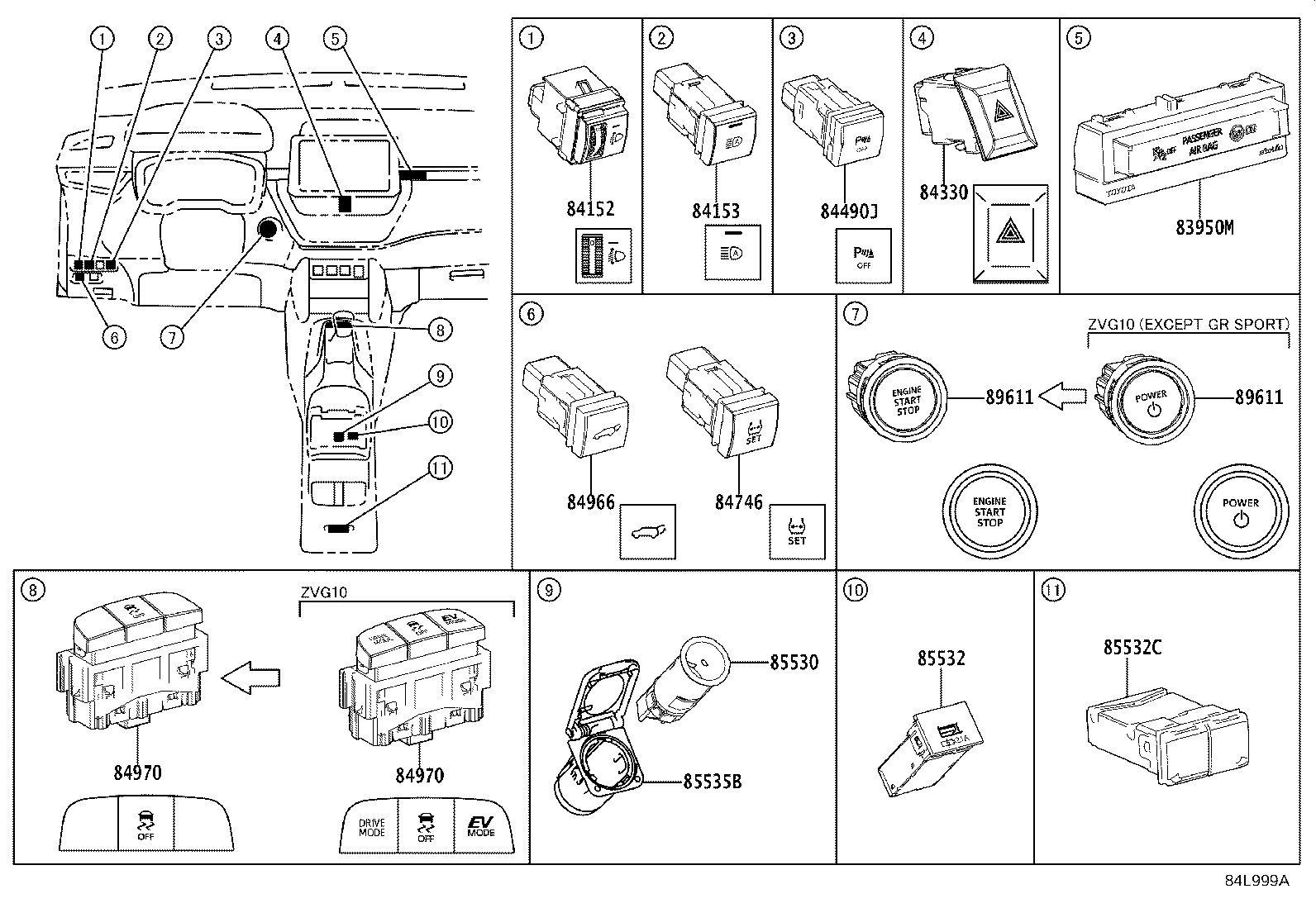

ILLUST NO. 5 OF 9(2007- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12100 |
ZSG10,ZVG10..TWP |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
ZSG10..G..GCC;ZVG10..E..GCC ACTIVE SAFETY PACKAGE-WITH |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12600 |
MXGA10,ZSG10,ZVG10..BZP,TWP |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02460 |
ZSG10..TWP |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02460 |
ZSG10..TWP |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D030 |
ZSG10,ZVG10..TWP |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-60010 |
ZVG10..TAIW;ZSG10..J..TAIW;ZSG10..TWP..(G,M,N) |
1 | ||
| 85532-12020 |
ZVG10..TAIW;ZSG10..J..TAIW;ZSG10..TWP..(G,N) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12090C0 |
ZSG10,ZVG10..TWP BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12010 |
ZSG10..TWP..(G,N) |
1 | ||
| 89611-52050 |
ZSG10,ZVG10..L,M |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12010 |
ZSG10..TWP..(G,N) |
1 | ||
| 89611-52050 |
ZSG10,ZVG10..L,M |
1 | ||

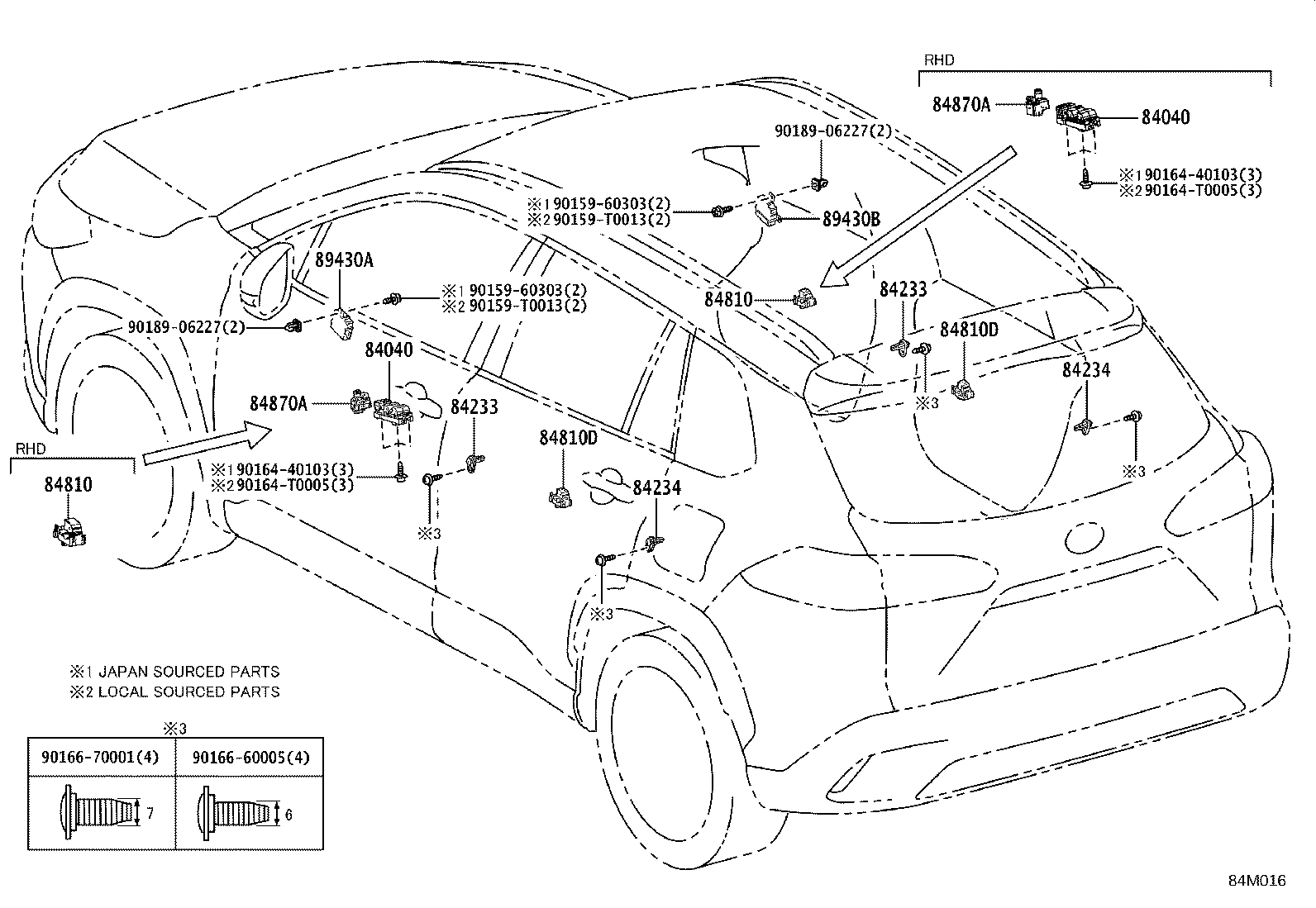

ILLUST NO. 8 OF 9(2007- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0A030 |
ZSG10,ZVG10..TWP |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0A030 |
ZSG10,ZVG10..TWP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02040 |
ZSG10,ZVG10..TWP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02040 |
ZSG10,ZVG10..TWP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02040 |
ZSG10,ZVG10..TWP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02040 |
ZSG10,ZVG10..TWP |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02300 |
ZSG10,ZVG10..TWP |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02300 |
ZSG10,ZVG10..TWP |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02300 |
ZSG10,ZVG10..TWP |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02300 |
ZSG10,ZVG10..TWP |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02780 |
ZSG10,ZVG10..TWP |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02780 |
ZSG10,ZVG10..TWP |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-T0013 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90189-06227 | ||||
ILLUST NO. 9 OF 9(2007- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-16320 |
MXGA10,ZSG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TAIW,VN |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-16320 |
MXGA10,ZSG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TAIW,VN |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-16320 |
MXGA10,ZSG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TAIW,VN |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47030 |
MXGA10..G,N;MXGA10,ZSG10..(BZP,TWP)..(E,J)..(AGT,GCC,GEN,TAIW) |
1 | ||
| 84840-47040 |
MXGA10..E..BZ;ZSG10,ZVG10..E,G,L,M,N |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-16010 |
ZSG10..TWP..G;ZVG10..E..GCC;ZVG10..(G,L)..TAIW BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-16010 |
ZSG10..G..GCC;ZVG10..E..GCC BACK MONITOR-WITH(*BGM)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-16010 |
ZSG10..G..GCC;ZVG10..E..GCC BACK MONITOR-WITH(*BGM)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-16010 |
ZSG10..TWP..G;ZVG10..E..GCC;ZVG10..(G,L)..TAIW BLIND SPOT MONITOR-WITH |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZSG10..G..GCC;ZVG10..E..GCC BACK MONITOR-WITH(*BGM)&BLIND SPOT MONITOR-WITH |
1 | ||
| Common parts | ||||
| 90119-W0187 | ||||
| 90178-06012 | ||||
| 90178-T0096 | ||||
| 91673-80616 | ||||

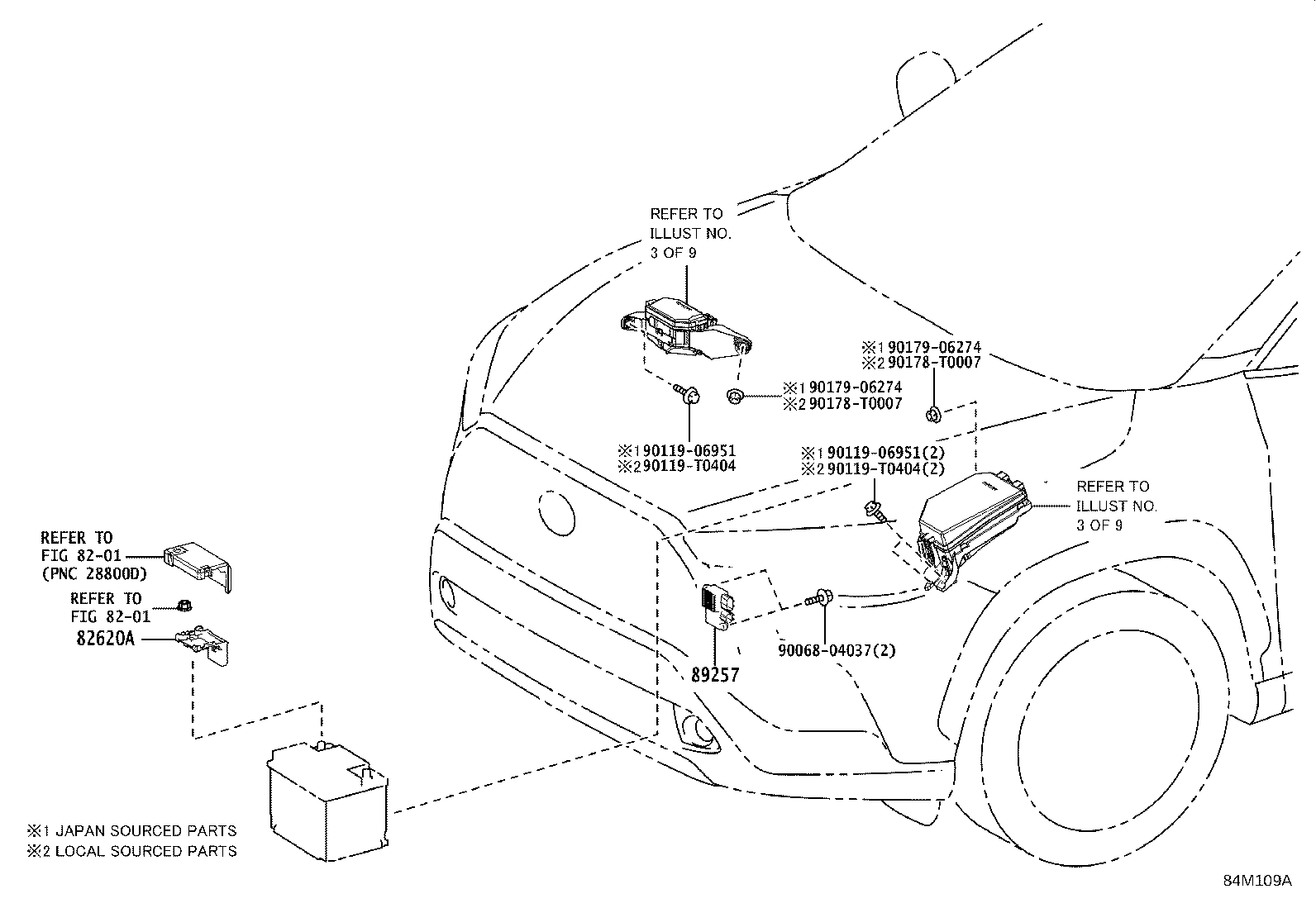

ILLUST NO. 4 OF 9(2007- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MXGA10,ZSG10,ZVG10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MXGA10,ZSG10,ZVG10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
MXGA10,ZSG10,ZVG10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
MXGA10,ZSG10,ZVG10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
MXGA10,ZSG10,ZVG10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
MXGA10,ZSG10,ZVG10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
MXGA10,ZSG10,ZVG10 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
MXGA10,ZSG10,ZVG10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
MXGA10,ZSG10,ZVG10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
MXGA10,ZSG10,ZVG10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
MXGA10,ZSG10,ZVG10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
MXGA10,ZSG10,ZVG10 10A,MINI FUSE,RED |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-0A010 |
ZSG10,ZVG10..THP,TWP |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02280 |
ZSG10,ZVG10..LHD..(THP,TWP) |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02290 |
ZSG10,ZVG10..LHD..(THP,TWP) |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-12X60 |
MXGA10,ZSG10,ZVG10..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0A070 |
ZSG10..J..TAIW;ZVG10..(G,N)..TAIW;ZVG10..(E,L,M)..(GCC,TAIW,VN);ZSG10..(E,G,M,N)..(GCC,TAIW,VN) |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-02070 |
ZSG10,ZVG10..TWP |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09380 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
ZSG10,ZVG10..THP,TWP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-02020 |
ZSG10..J..TAIW;ZVG10..E..(GCC,VN);ZSG10..(E,G,N)..(GCC,TAIW,VN);MXGA10,ZVG10..(BZP,TWP)..(AGT,BZ,GEN,TAIW) |
1 | ||
| 8598A-02040 |
ZSG10..J..TAIW;ZVG10..E..(GCC,VN);ZSG10..(E,G,M,N)..(GCC,TAIW,VN);MXGA10,ZVG10..(BZP,TWP)..(AGT,BZ,GEN,TAIW) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0A190 |
ZVG10..E..GCC;ZSG10..(G,N)..GCC JORDAN SPEC |
1 | ||
| 89220-0A150 |
ZVG10..E..GCC;ZSG10..(G,N)..GCC LEBANON SPEC |
1 | ||
| 89220-0A210 |
ZVG10..E..GCC;ZSG10..(G,N)..GCC NORTH AFRICA SPEC |
1 | ||
| 89220-0A370 |
ZSG10..(G,N)..GCC SAB-SAHARA SPEC |
1 | ||
| 89220-0A170 |
ZVG10..E..GCC;ZSG10..(G,N)..GCC IRAQ SPEC |
1 | ||
| 89220-0A060 |
ZVG10..E..GCC;ZSG10..(G,N)..GCC |
1 | ||
| 89220-0A410 |
ZSG10..(G,N)..GCC GHANA SPEC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-16210 |
ZSG10,ZVG10..L,M JTEKT/DENSO |
1 | ||
| 89650-16090 |
ZSG10,ZVG10..TWP..(E,G,J,N) JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 93313-15010 | ||||
ILLUST NO. 2 OF 9(2007- )MXGA10,ZSG10
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12310 |
MXGA10,ZSG10 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-K0020 |
ZSG10..GCC |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 3 OF 9(2007- )MXGA10,ZSG10
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0L011 |
2ZRFBE,2ZRFE..ZSG10 (L) |
1 | ||
| 28300-21020 |
2ZRFBE,2ZRFE..ZSG10 (J) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
MXGA10,ZSG10,ZVG10 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
MXGA10,ZSG10,ZVG10 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08308 |
MXGA10,ZSG10,ZVG10 40A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
MXGA10,ZSG10,ZVG10 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08300 |
MXGA10,ZSG10,ZVG10 50A-30A-30A,FEMALE |
1 | ||
| 90982-08295 |
MXGA10,ZSG10,ZVG10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
MXGA10,ZSG10,ZVG10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
MXGA10,ZSG10,ZVG10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
MXGA10,ZSG10,ZVG10 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
MXGA10,ZSG10,ZVG10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
MXGA10,ZSG10,ZVG10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
MXGA10,ZSG10,ZVG10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
MXGA10,ZSG10,ZVG10 25A,MINI FUSE |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12390 |
MXGA10,ZSG10 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-12400 |
MXGA10,ZSG10 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-12360 |
MXGA10,ZSG10 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12470 |
MXGA10,ZSG10 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0A160 |
ZSG10..TWP |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0A190 |
ZSG10..TWP |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12160 |
MXGA10,ZSG10 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12650 |
MXGA10,ZSG10 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-T2001 |
MXGA10..E,G;ZSG10..J..TAIW;ZSG10..TWP..(G,M,N);ZVG10..(BZP,TWP)..(AGT,BZ,GEN,TAIW) (L) |
1 | ||
| 90987-02027 |
MXGA10..E,G;ZSG10..J..TAIW;ZSG10..TWP..(G,M,N);ZVG10..(BZP,TWP)..(AGT,BZ,GEN,TAIW) (J) |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-02027 |
ZSG10,ZVG10..BZP,TWP |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T2003 |
MXGA10..E,G;ZSG10..J..TAIW;ZSG10,ZVG10..E,G,L,M,N |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02027 |
ZSG10..TWP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
MXGA10;ZSG10..E,M;ZSG10..G..GEN;ZVG10..N..GEN;ZVG10..(E,L,M)..TAIW;ZSG10..(G,N)..(GCC,MA,PH,VN);ZVG10..(E,G)..(AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN) (L) |
1 | ||
| 90987-02027 |
MXGA10;ZSG10..E,M;ZSG10..G..GEN;ZVG10..N..GEN;ZVG10..(E,L,M)..TAIW;ZSG10..(G,N)..(GCC,MA,PH,VN);ZVG10..(E,G)..(AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN) (J) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZSG10,ZVG10 (J) |
1 | ||
| 90987-T2001 |
ZSG10,ZVG10 (L) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
ZSG10,ZVG10..(THP,TWP)..(GCC,GEN,IDN,MA,PH,TAIW,TH) |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 90987-04004 |
ZSG10,ZVG10..N..(TH,VN);ZSG10..GCC,GEN,IDN,MA,PH,TAIW,TH;ZVG10..(THP,TWP)..(GCC,GEN,IDN,TAIW) (J) |
2 | ||
| 90080-87009 |
ZSG10,ZVG10..N..(TH,VN);ZSG10..GCC,GEN,IDN,MA,PH,TAIW,TH;ZVG10..(THP,TWP)..(GCC,GEN,IDN,TAIW) (L) |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
