ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2010- )TWP..E,G,J,N

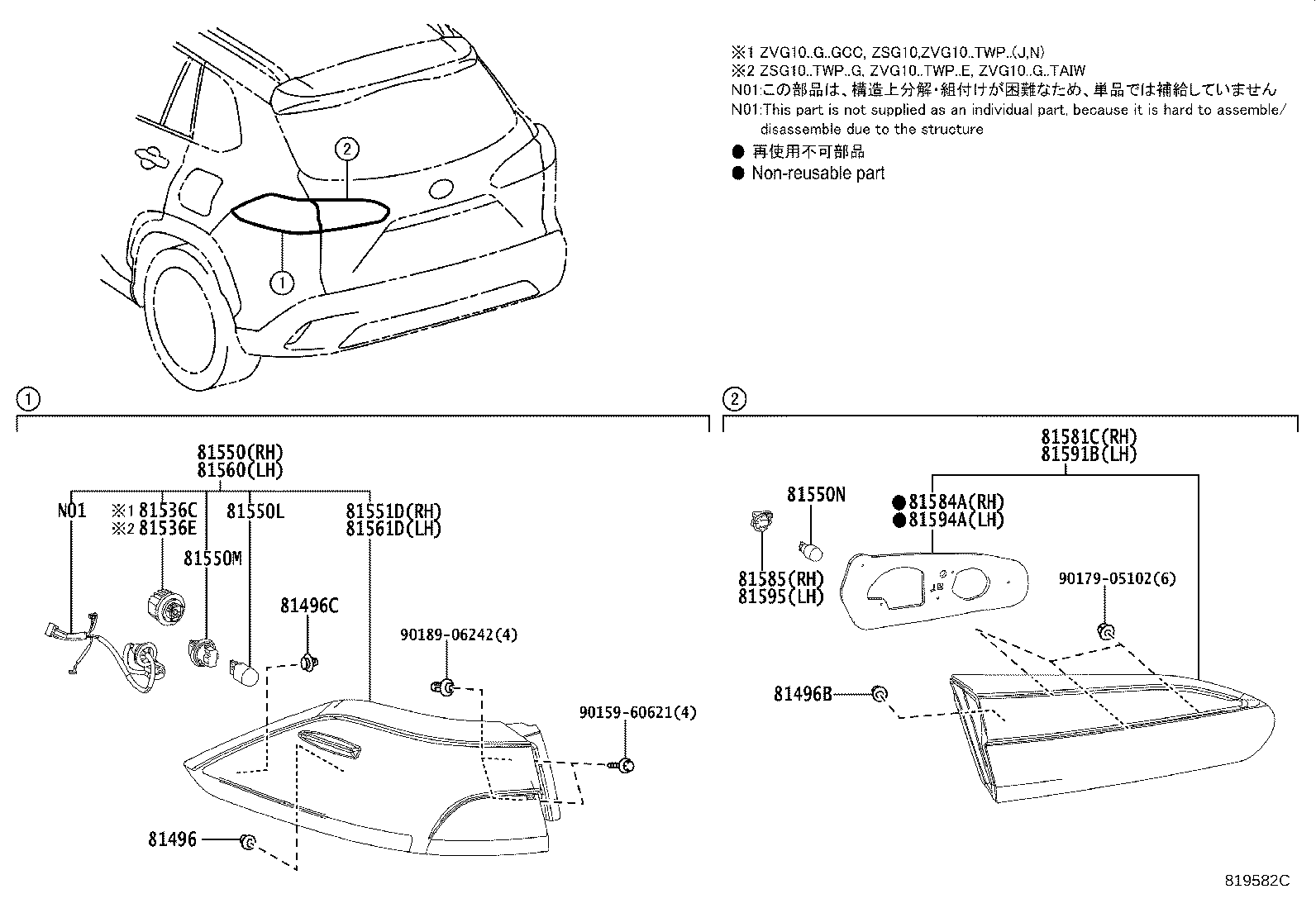

Click highlighted areas on diagram

diagram 81496 81496B 81496C 81536C 81536E 81550 81550L 81550M 81550N 81551D 81560 81561D 81581C 81584A 81585 81591B 81594A 81595 9015960621 9017905102 9018906242
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

MXGA10,ZSG10,ZVG10..BZP,TWP

 2
81496B - GUIDE, REAR LAMP
81496-52020

MXGA10,ZSG10,ZVG10..BZP,TWP

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

MXGA10,ZSG10,ZVG10

 2
81536E - LED, STOP LAMP
81536-15120

ZSG10..E;ZVG10..N..TH;ZSG10..TWP..G;ZVG10..E..GCC;ZVG10..(THP,TWP)..(E,G)..(GEN,IDN,MA,PH,TAIW,TH,VN)

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-YY030

ZSG10,ZVG10..L,M

 1
81550-0A070

ZSG10..E;ZVG10..N..TH;ZVG10..THP..(E,G)

 1
81550-0A090

ZSG10..TWP..G;ZVG10..TWP..E;ZVG10..G..TAIW

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

ZSG10,ZVG10..THP,TWP

12V 21W,AMBER

 2
81550M - SOCKET, REAR TURN SIGNAL LAMP
90075-60028

ZSG10,ZVG10..THP,TWP

 2
81550N - BULB, BACK UP LAMP
90981-11059

MXGA10,ZSG10,ZVG10

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0A090

ZSG10..TWP..G;ZVG10..TWP..E;ZVG10..G..TAIW

 1
81551-0A070

ZSG10..E;ZVG10..N..TH;ZVG10..THP..(E,G)

 1
81551-YY030

ZSG10,ZVG10..L,M

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0A070

ZSG10..E;ZVG10..N..TH;ZVG10..THP..(E,G)

 1
81560-YY030

ZSG10,ZVG10..L,M

 1
81560-0A090

ZSG10..TWP..G;ZVG10..TWP..E;ZVG10..G..TAIW

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0A070

ZSG10..E;ZVG10..N..TH;ZVG10..THP..(E,G)

 1
81561-YY030

ZSG10,ZVG10..L,M

 1
81561-0A090

ZSG10..TWP..G;ZVG10..TWP..E;ZVG10..G..TAIW

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-YY030

ZSG10,ZVG10..L,M

 1
81581-0A060

ZSG10..TWP..G;ZVG10..TWP..E;ZVG10..G..TAIW

 1
81584A - GASKET, REAR LAMP RH
81584-0A050

ZSG10,ZVG10..TWP..(E,G,J,N)

 1
81584-YY030

ZSG10,ZVG10..L,M

 1
81585 - SOCKET & WIRE, REAR LAMP
90075-99005

ZSG10,ZVG10..TWP..(E,G,J,N)

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-0A060

ZSG10..TWP..G;ZVG10..TWP..E;ZVG10..G..TAIW

 1
81591-0A030

ZSG10..E;ZVG10..N..TH;ZVG10..THP..(E,G)..(GEN,IDN,MA,TH,VN)

 1
81591-YY030

ZSG10,ZVG10..L,M

 1
81594A - GASKET, REAR LAMP LH
81594-0A050

ZSG10,ZVG10..TWP..(E,G,J,N)

 1
81584-YY030

ZSG10,ZVG10..L,M

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
90075-99005

ZSG10,ZVG10..TWP..(E,G,J,N)

 1
Common parts
90159-60621
90179-05102
90189-06242
