ZSG10L-EHXGKV (2020)
Toyota Corolla Cross

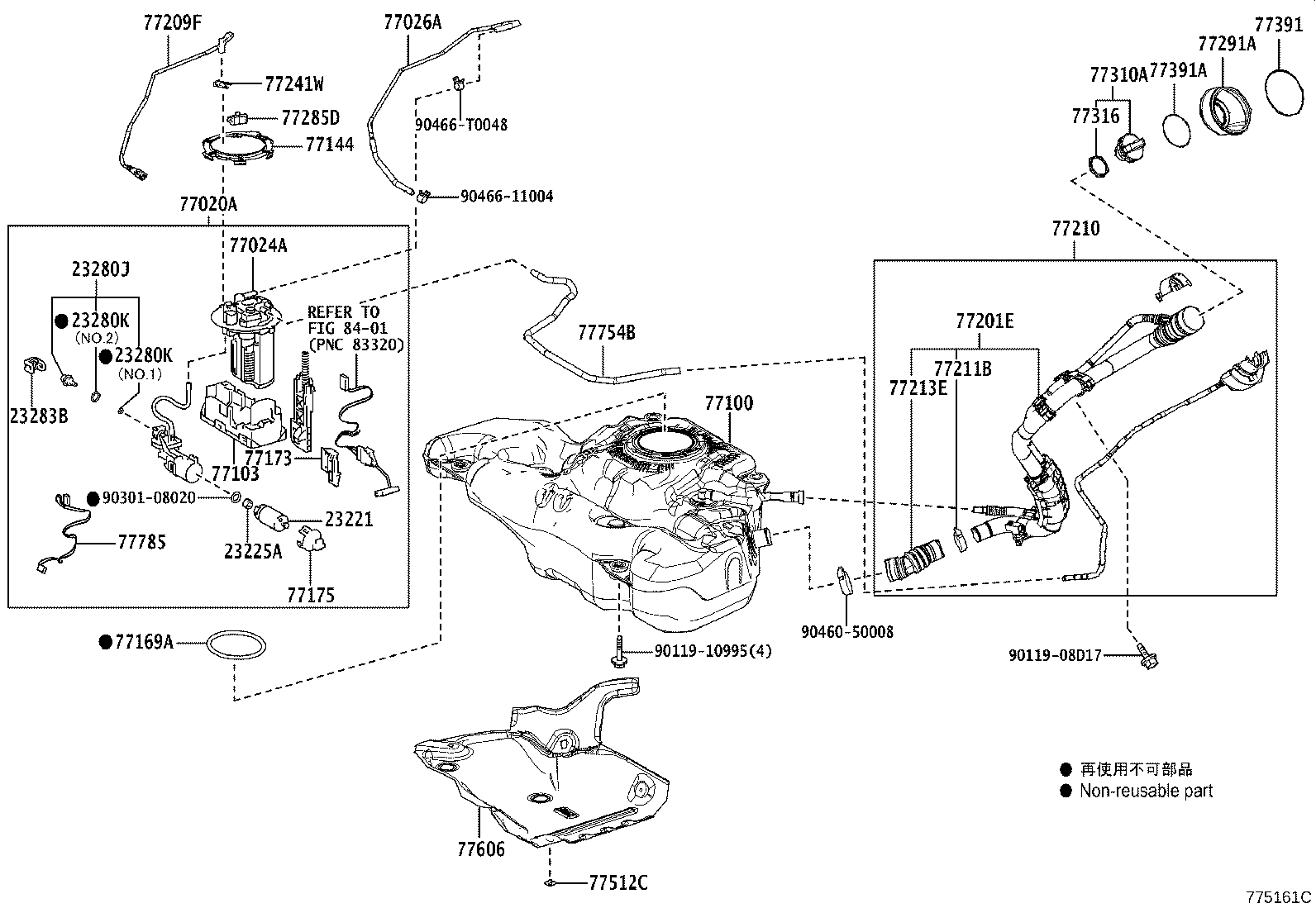

ILLUST NO. 1 OF 3(2007- )ZSG10..GCC,GEN,IDN,MA,PH,VN
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23221-37040 |
2ZRFE..ZSG10 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.2:REFER ILLUST. |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-37010 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0A070 |
ZSG10..TWP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-16010 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-0A040 |
ZSG10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0A070 |
ZSG10..GCC |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-12150 |
ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN;MXGA10,ZSG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,VN |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02160 |
ZSG10,ZVG10..TWP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,BZ,GCC,GEN) |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12020 |
MXGA10,ZSG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,VN |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-12040 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0A030 |
MXGA10,ZSG10,ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0A040 |
ZSG10..GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-0A030 |
ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN;MXGA10,ZSG10..AGT,GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
MXGA10,ZSG10,ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0A030 |
MXGA10,ZSG10,ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,GCC,GEN,TAIW) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
MXGA10,ZSG10..BZP,TWP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0A020 |
ZSG10,ZVG10..TWP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,BZ,GCC,GEN) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,BZ,GCC,GEN) |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
MXGA10,ZSG10 |
4 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0A060 |
ZSG10..TWP |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-0A040 |
ZSG10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12050 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90301-08020 | ||||
| 90460-50008 | ||||
| 90466-11004 | ||||
| 90466-T0048 | ||||
| Linked diagrams | ||||
| 8401 | ||||

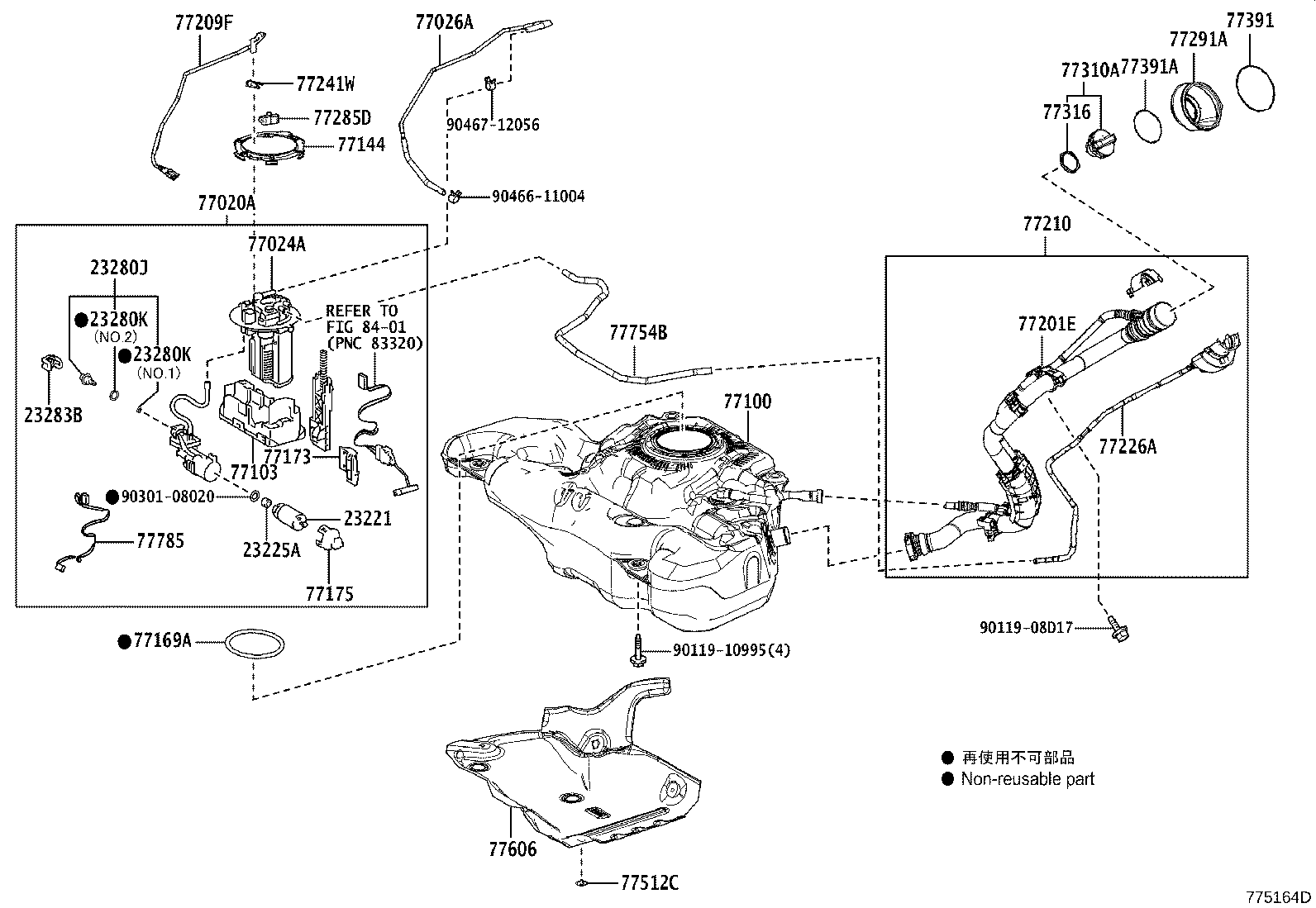

ILLUST NO. 1 OF 3(2010- )ZSG10..TWP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23221-37040 |
2ZRFE..ZSG10 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN NO.2:REFER ILLUST. |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-37010 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0A070 |
ZSG10..TWP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-16010 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-0A040 |
ZSG10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0A070 |
ZSG10..GCC |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-12150 |
ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN;MXGA10,ZSG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,VN |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02160 |
ZSG10,ZVG10..TWP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,BZ,GCC,GEN) |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12020 |
MXGA10,ZSG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,VN |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-12040 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0A030 |
MXGA10,ZSG10,ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0A040 |
ZSG10..GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-0A030 |
ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN;MXGA10,ZSG10..AGT,GCC,GEN,IDN,MA,PH,TH,VN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,GCC,GEN,TAIW) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
MXGA10,ZSG10..BZP,TWP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0A020 |
ZSG10,ZVG10..TWP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,BZ,GCC,GEN) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
MXGA10,ZSG10,ZVG10..(BZP,TWP)..(AGT,BZ,GCC,GEN) |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-0A010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
MXGA10,ZSG10 |
4 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0A060 |
ZSG10..TWP |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-0A040 |
ZSG10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12050 |
ZSG10..GCC,GEN,IDN,MA,PH,TAIW,VN;ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90301-08020 | ||||
| 90466-11004 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(2007- )ZSG10

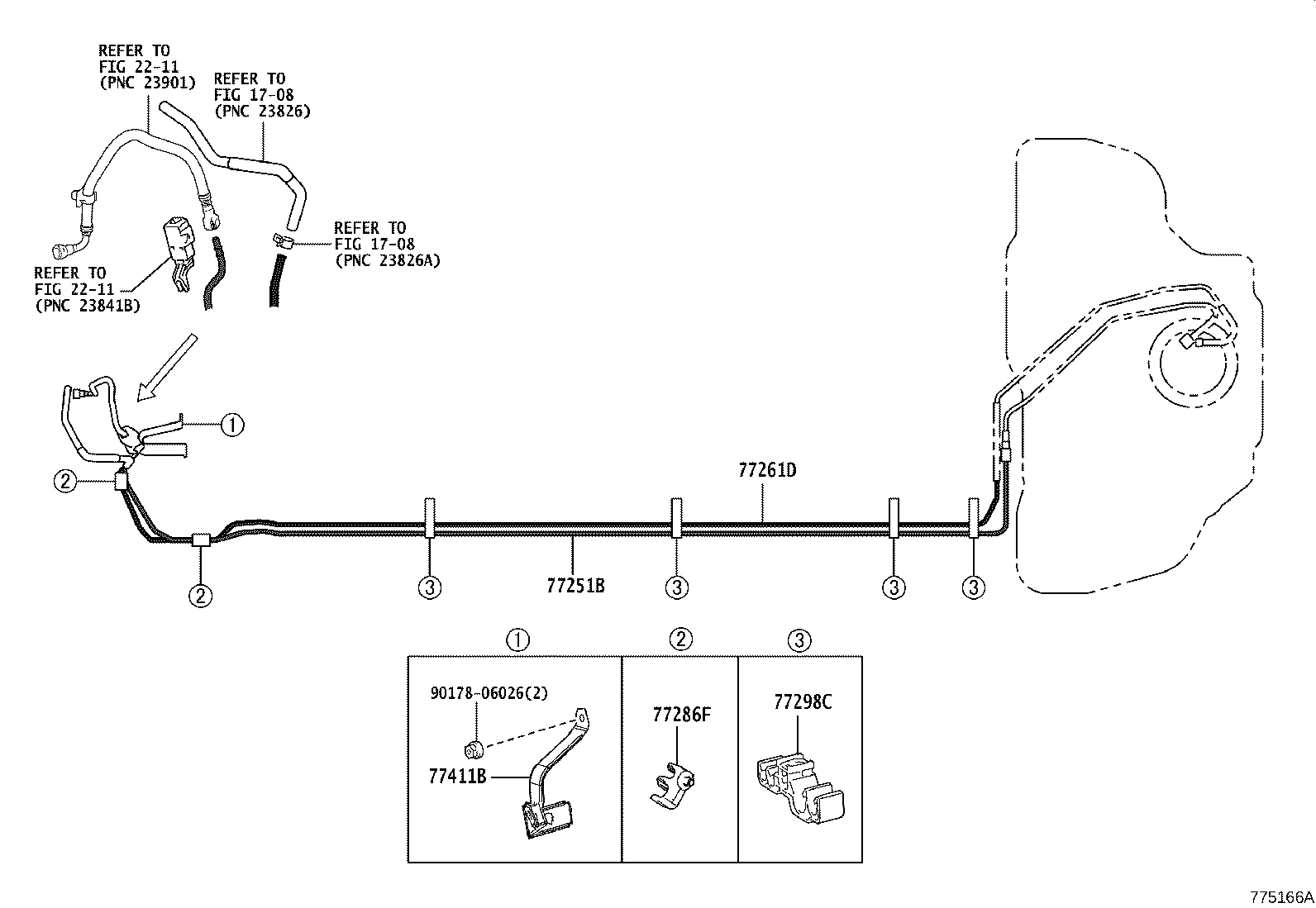

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0A090 |
ZSG10..TWP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0A090 |
ZSG10..TWP |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48100 |
ZSG10 |
2 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-10090 |
ZSG10 |
4 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-02110 |
ZSG10..TWP |
1 | ||
| Common parts | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(2007- )LHD

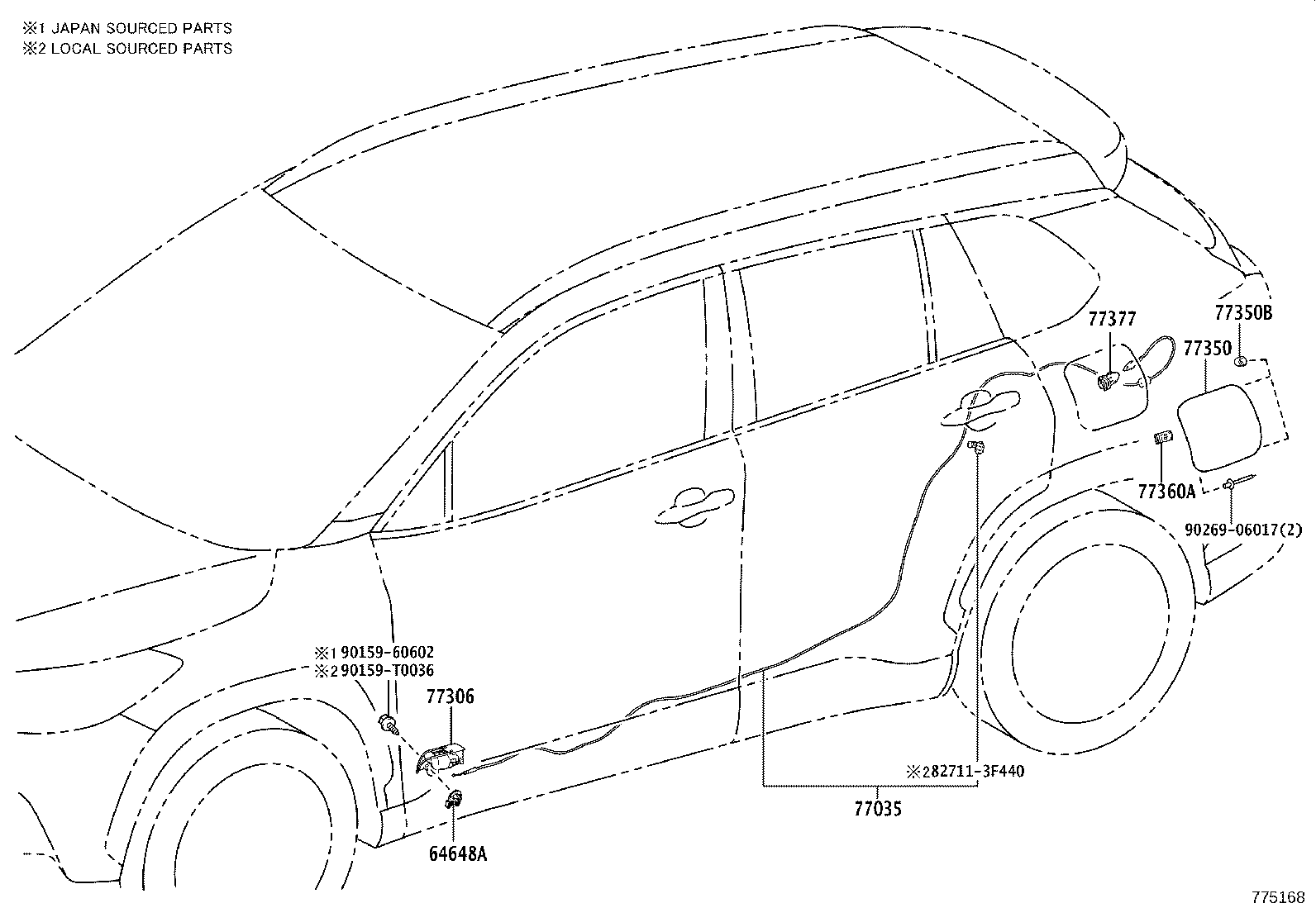

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ZSG10,ZVG10..TWP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0A050 |
ZSG10,ZVG10..TWP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0A030 |
ZSG10,ZVG10..TWP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-K1010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 77350B - CUSHION(FOR FUEL FILLER OPENING LID) | ||||
| 90541-06069 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02150 |
ZSG10,ZVG10..TWP |
1 | ||
| Common parts | ||||
| 82711-3F440 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90269-06017 | ||||
