ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )MXGA10,ZSG10

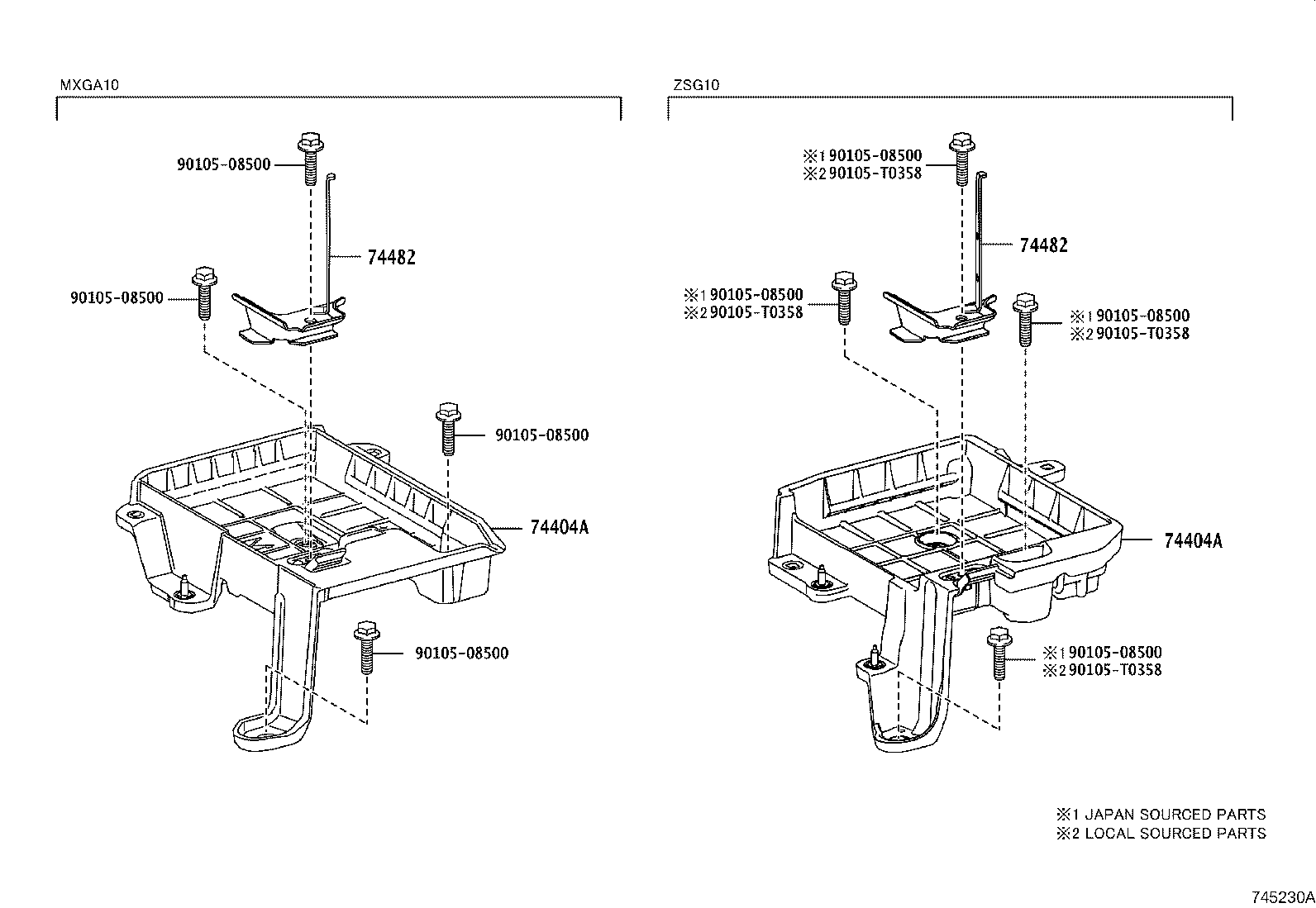

Click highlighted areas on diagram

diagram 74404A 74404A 74482 74482 9010508500 9010508500 9010508500 9010508500 9010508500 9010508500 9010508500 9010508500 90105T0358 90105T0358 90105T0358 90105T0358
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-12540

ZSG10..TWP

 1
74404A - CLAMP SUB-ASSY, BATTERY
74404-12540

ZSG10..TWP

 1
74482 - CLAMP, BATTERY, NO.2
74405-02050

ZSG10..TWP

 1
74482 - CLAMP, BATTERY, NO.2
74405-02050

ZSG10..TWP

 1
Common parts
90105-08500
90105-T0358
