ZSG10L-EHXGKV (2020)
Toyota Corolla Cross
ILLUST NO. 1 OF 2(2007- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64813B - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-50140 |
ZSG10,ZVG10..TWP L=1151 |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-0A020 |
ZSG10,ZVG10..TWP |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-0A020 |
ZSG10,ZVG10..TWP |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-0A140 |
ZVG10..N..TH;ZSG10..LHD..E;ZSG10..RHD..(E,G)..(GEN,TH);ZVG10..THP..(E,G)..(GEN,PH,VN) |
1 | ||
| 67005-0A190 |
ZSG10..(G,N)..GCC;ZVG10..(E,G)..GCC SAUDI ARABIA SPEC&BACK MONITOR-WITH(*BGM) |
1 | ||
| 67005-0A250 |
ZVG10..GCC;ZVG10..(G,N)..TAIW;ZSG10..TWP..(G,J,N) |
1 | ||
| 67005-0A190 |
ZSG10..(G,N)..GCC;ZVG10..(E,G)..GCC UAE SPEC&BACK MONITOR-WITH(*BGM) |
1 | ||
| 67005-0A200 |
ZSG10,ZVG10..GCC SAUDI ARABIA SPEC |
1 | ||
| 67005-0A200 |
ZSG10,ZVG10..GCC UAE SPEC |
1 | ||
| 67005-0A240 |
ZSG10..G..GCC;ZVG10..E..GCC BACK MONITOR-WITH(*BGM) |
1 | ||
| 67005-0A240 |
ZSG10,ZVG10..L,M |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09142 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09142 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 67837N - SEAL, BACK DOOR DUST PROOF | ||||
| 67837-0A050 |
ZSG10,ZVG10..TWP |
3 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-0A020 |
ZSG10..TWP;ZVG10..GCC;ZVG10..(G,L,M,N)..TAIW |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-0A020 |
ZSG10,ZVG10..TWP |
1 | ||
| 68105-0A030 |
ZSG10,ZVG10..GCC UAE SPEC |
1 | ||
| 68105-0A030 |
ZSG10,ZVG10..GCC SAUDI ARABIA SPEC |
1 | ||
| 68294D - DAM, BACK DOOR GLASS ADHESIVE, NO.2 | ||||
| 56117-50140 |
ZSG10,ZVG10..TWP L=20 |
2 | ||
| 68294D - DAM, BACK DOOR GLASS ADHESIVE, NO.2 | ||||
| 56117-50140 |
ZSG10,ZVG10..TWP L=20 |
2 | ||
| 68678 - PROTECTOR, BACK DOOR WINDOW | ||||
| 68678-0A010 |
ZSG10,ZVG10..GCC UAE SPEC |
2 | ||
| 68678-0A010 |
ZSG10,ZVG10..GCC SAUDI ARABIA SPEC |
2 | ||
| 68678 - PROTECTOR, BACK DOOR WINDOW | ||||
| 68678-0A010 |
ZSG10,ZVG10..GCC UAE SPEC |
2 | ||
| 68678-0A010 |
ZSG10,ZVG10..GCC SAUDI ARABIA SPEC |
2 | ||
| 68699 - SPACER, BACK DOOR WINDOW FRAME | ||||
| 68699-0A020 |
ZSG10,ZVG10..TWP |
2 | ||
| 68699 - SPACER, BACK DOOR WINDOW FRAME | ||||
| 68699-0A020 |
ZSG10,ZVG10..TWP |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-0D030 |
ZSG10,ZVG10..THP,TWP |
2 | ||
| Linked diagrams | ||||
| 8202 | ||||

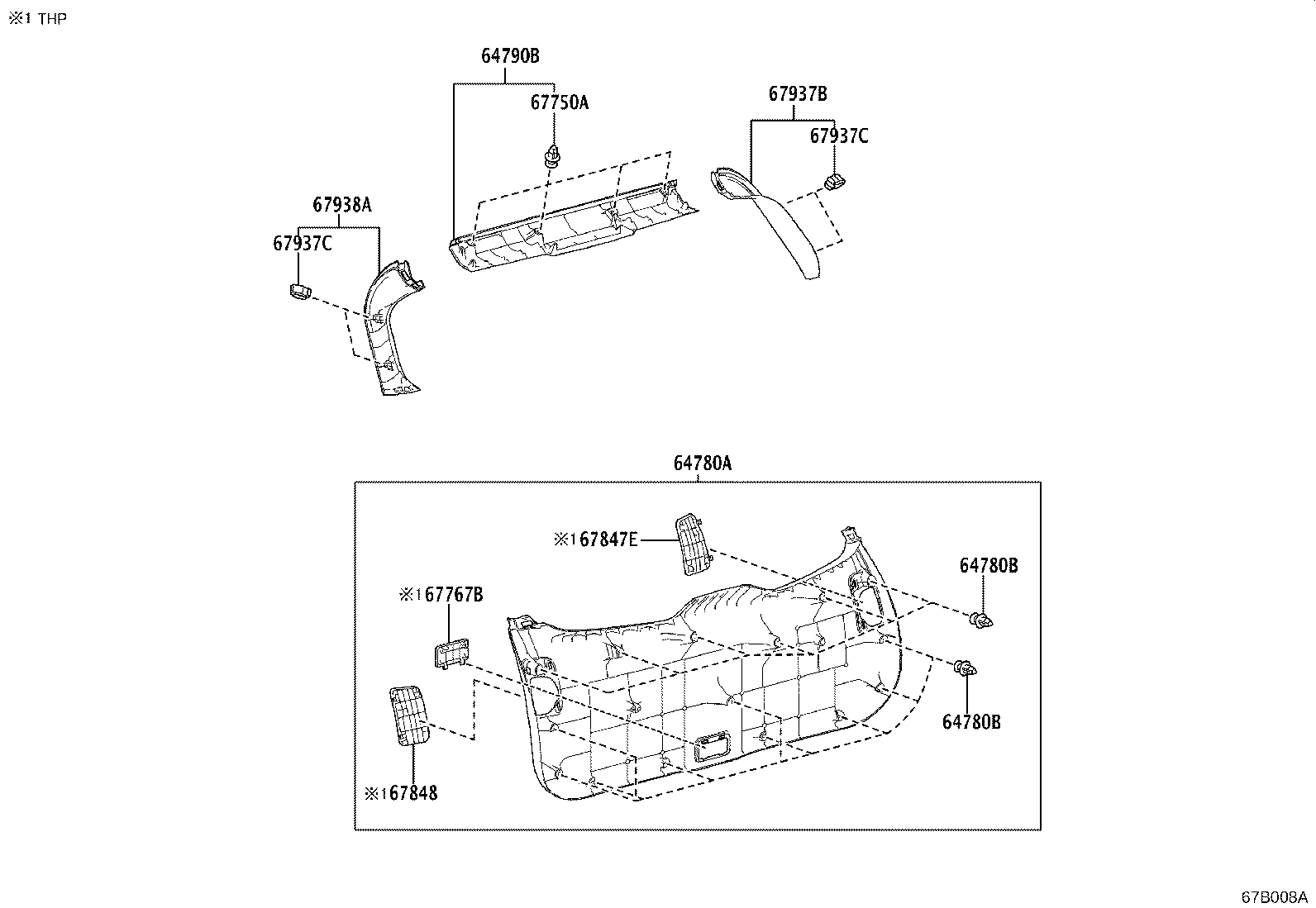

ILLUST NO. 2 OF 2(2007- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-0A080C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 64780-0A080C0 |
ZSG10..G..GCC;ZVG10..E..GCC BLACK,TRIM0#,2#,3# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-10161 |
ZSG10,ZVG10..TWP |
15 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-10161 |
ZSG10,ZVG10..TWP |
15 | ||
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-0A050C0 |
ZSG10..G..GCC;ZVG10..E..GCC BLACK,TRIM0#,2#,3# |
1 | ||
| 64790-0A050C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
ZSG10,ZVG10..TWP |
4 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-0A050C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 67937-0A050C0 |
ZSG10..G..GCC;ZVG10..E..GCC BLACK,TRIM0#,2#,3# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-09241 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-09241 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-0A050C0 |
ZSG10..G..GCC;ZVG10..E..GCC BLACK,TRIM0#,2#,3# |
1 | ||
| 67938-0A050C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
