ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

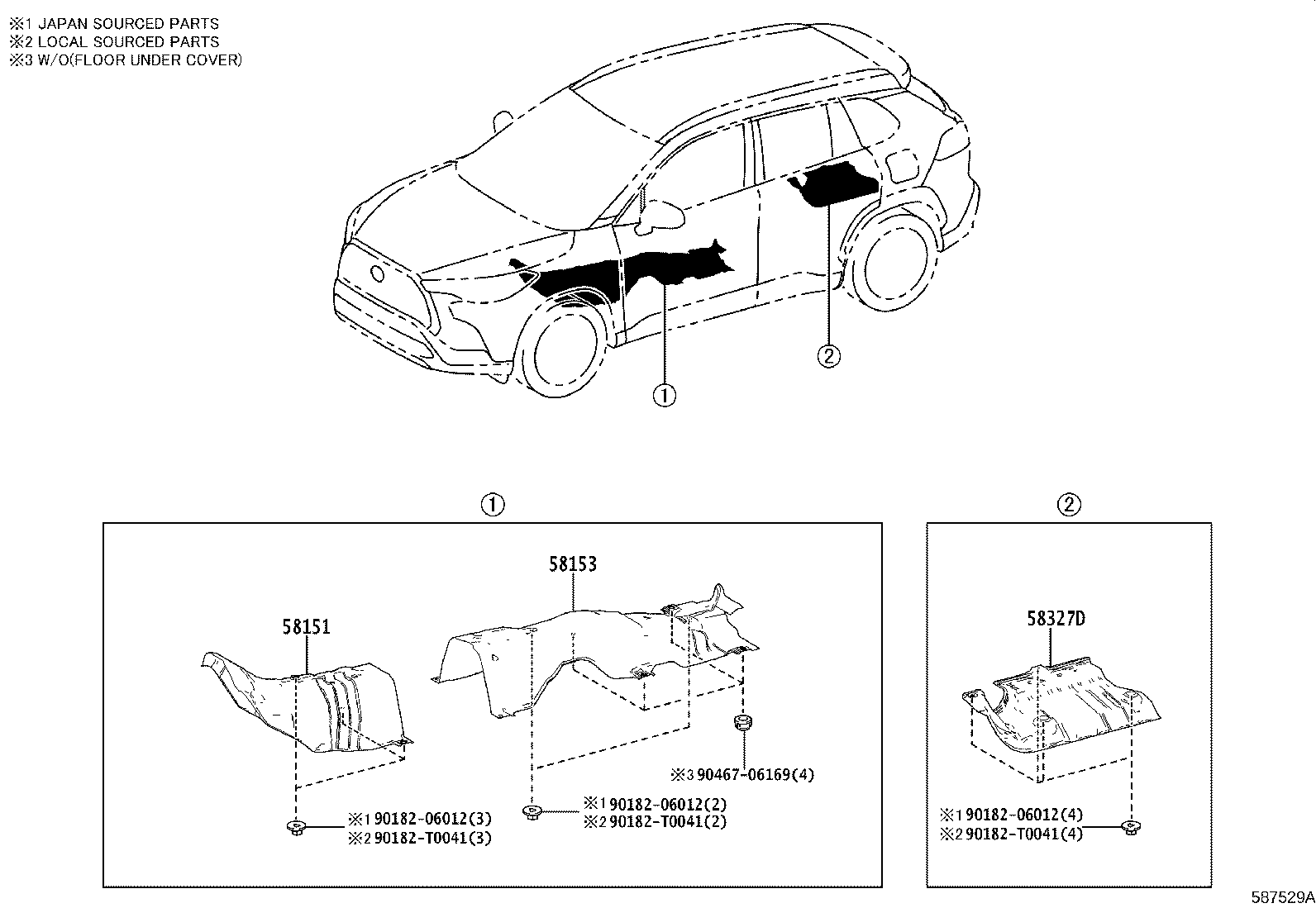

Click highlighted areas on diagram

diagram 58151 58153 58327D 9018206012 9018206012 9018206012 90182T0041 90182T0041 90182T0041 9046706169
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-02670

ZSG10..TWP

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-0A080

ZSG10,ZVG10..TWP

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-0A060

ZSG10,ZVG10..TWP

 1
Common parts
90182-06012
90182-T0041
90467-06169
