ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

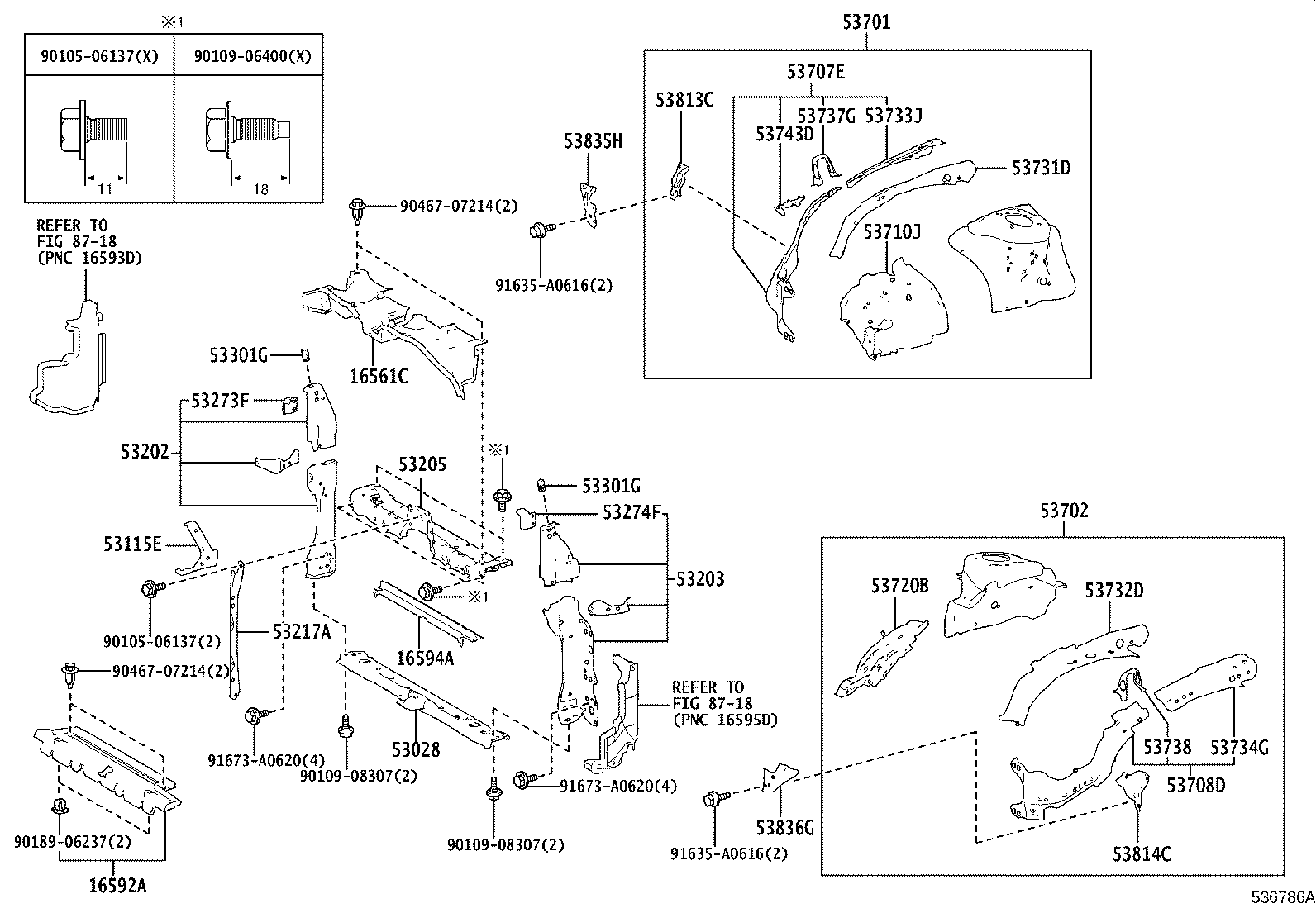

ILLUST NO. 1 OF 2(2010- )TWP

Click highlighted areas on diagram

RADIATOR SUPPORT & FENDER APRON

diagram 16561C 16592A 16594A 53028 53115E 53202 53203 53205 53217A 53273F 53274F 53301G 53301G 53701 53702 53707E 53708D 53710J 53720B 53731D 53732D 53733J 53734G 53737G 53738 53743D 53813C 53814C 53835H 53836G 8718 8718 9010506137 9010506137 9010906400 9010908307 9010908307 9018906237 9046707214 9046707214 91635A0616 91635A0616 91673A0620 91673A0620
Part # Description Qty Price
16561C - SEAL, RADIATOR TO SUPPORT, NO.1
16561-0T290

2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP

 1
16592A - GUIDE, RADIATOR AIR, NO.3
16592-0T330

2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-0T110

2ZRFE..ZSG10..TWP

 1
53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER
53028-02100

ZSG10,ZVG10..TWP

 1
53115E - BRACKET, RADIATOR GRILLE
53115-0A060

ZSG10,ZVG10..TWP

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0A902

ZSG10,ZVG10..TWP

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0A902

ZSG10,ZVG10..TWP

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-0A030

ZSG10,ZVG10..TWP

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-0A050

ZSG10,ZVG10..TWP

 1
53273F - BRACKET, FRONT BUMPER RETAINER MOUNTING, RH
53273-0A050

ZSG10,ZVG10..TWP

 1
53274F - BRACKET, FRONT BUMPER RETAINER MOUNTING, LH
53274-0A050

ZSG10,ZVG10..TWP

 1
53301G - CUSHION, HOOD BUMPER
90541-15037

MXGA10,ZSG10,ZVG10

 2
53301G - CUSHION, HOOD BUMPER
90541-15037

MXGA10,ZSG10,ZVG10

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0A060

ZSG10,ZVG10..TWP

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0A050

ZSG10,ZVG10..TWP

 1
53707E - APRON SUB-ASSY, FENDER SIDE, RH
53707-0A020

ZSG10,ZVG10..TWP

 1
53708D - APRON SUB-ASSY, FENDER SIDE, LH
53708-0A020

ZSG10,ZVG10..TWP

 1
53710J - APRON ASSY, FRONT FENDER, RH
53710-02150

ZSG10,ZVG10..TWP

 1
53720B - APRON ASSY, FRONT FENDER, LH
53720-02170

ZSG10,ZVG10..TWP

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-02140

ZSG10,ZVG10..TWP

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-02140

ZSG10,ZVG10..TWP

 1
53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH
53733-02100

ZSG10,ZVG10..TWP

 1
53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH
53734-02100

ZSG10,ZVG10..TWP

 1
53737G - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-0A050

ZSG10,ZVG10..TWP

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-0A050

ZSG10,ZVG10..TWP

 1
53743D - REINFORCEMENT, FRONT FENDER APRON FRONT EXTENSION, RH
53743-0A060

ZSG10,ZVG10..TWP

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-02200

ZSG10,ZVG10..TWP

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-02210

ZSG10,ZVG10..TWP

 1
53835H - BRACE, FRONT FENDER TO EXTENSION, RH
53835-0A050

ZSG10,ZVG10..TWP

 1
53836G - BRACE, FRONT FENDER TO EXTENSION, LH
53836-0A050

ZSG10,ZVG10..TWP

 1
Common parts
90105-06137
90109-06400
90109-08307
90189-06237
90467-07214
91635-A0616
91673-A0620
Linked diagrams
8718

ILLUST NO. 2 OF 2(2010- )TWP

Click highlighted areas on diagram

DASH PANEL

diagram 55101 55133A 55137A 55138A 55210 55210C 55223A 55223C 55241 55242 55242B 55242B 9011908C89 9011908C89 9011908C89 9011908C89 9011908C89
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-0A110

ZSG10,ZVG10..TWP

 1
55133A - REINFORCEMENT, DASH TO FLOOR, RH
55133-02080

ZSG10,ZVG10..TWP

 1
55137A - BRACE, DASH TO FRAME, RH
55137-02170

ZSG10,ZVG10..TWP

 1
55138A - BRACE, DASH TO FRAME, LH
55138-02210

ZSG10,ZVG10..TWP

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-02810

ZSG10..TWP

 1
55210C - CLIP
90467-11122

MXGA10,ZSG10,ZVG10

 4
55223A - INSULATOR, DASH PANEL, OUTER
55223-02460

ZSG10,ZVG10..TWP

 1
55223C - CLIP
90467-06197

MXGA10,ZSG10,ZVG10..BZP,TWP

 2
55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-02090

ZSG10,ZVG10..TWP

 1
55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-02080

ZSG10,ZVG10..TWP

 1
55242B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

MXGA10,ZSG10,ZVG10

 6
55242B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

MXGA10,ZSG10,ZVG10

 6
Common parts
90119-08C89
