ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )LHD

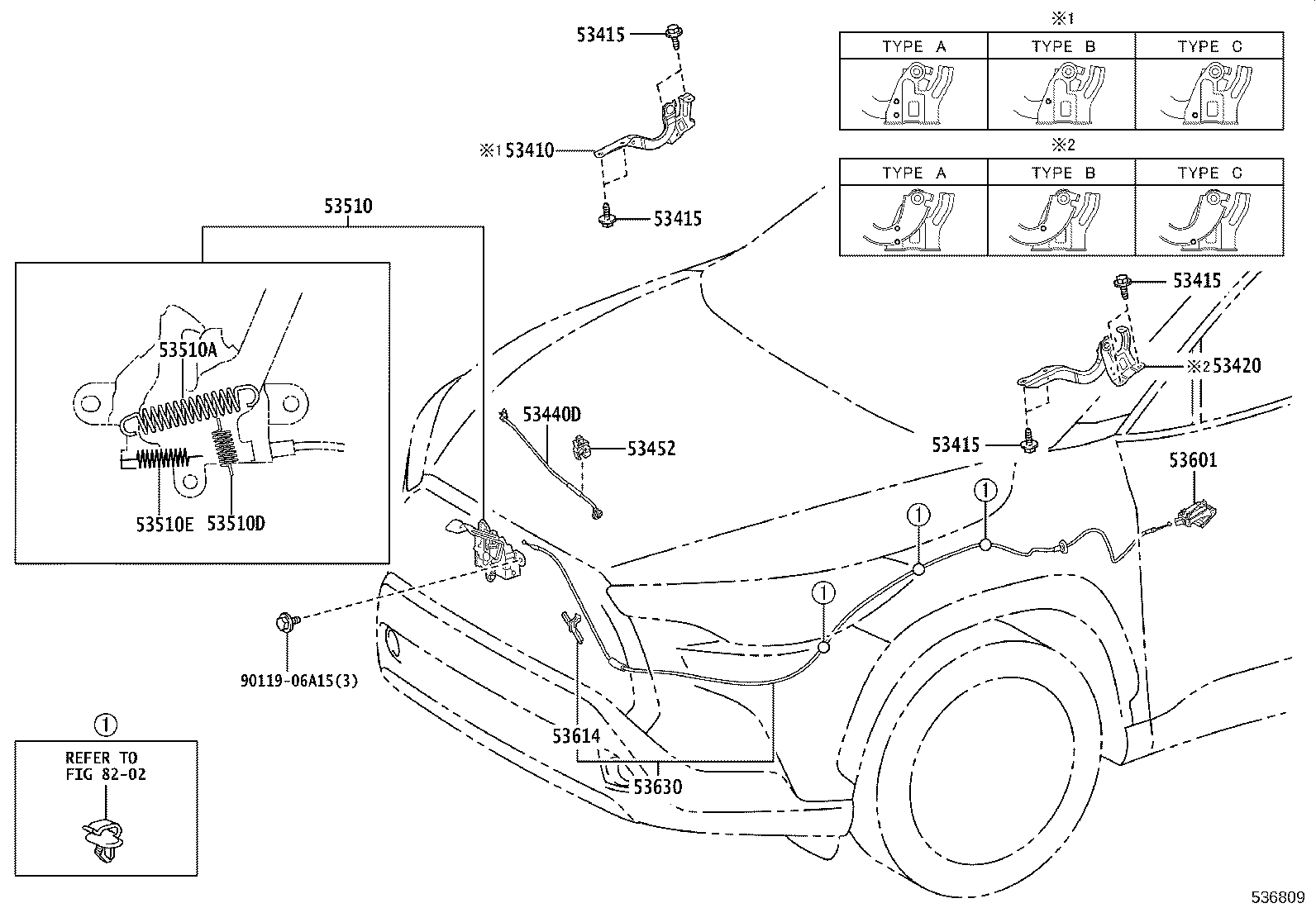

Click highlighted areas on diagram

diagram 53410 53415 53415 53415 53415 53420 53440D 53452 53510 53510A 53510D 53510E 53601 53614 53630 8202 9011906A15
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0A060

ZSG10,ZVG10..TWP

TYPE A:REFER ILLUST.

 1
53410-0A070

ZSG10,ZVG10..TWP

TYPE B:REFER ILLUST.

 1
53410-0A080

ZSG10,ZVG10..TWP

TYPE C:REFER ILLUST.

 1
53415 - BOLT, HOOD HINGE
91551-80820

MXGA10,ZSG10,ZVG10..BZP,TWP

 4
53415 - BOLT, HOOD HINGE
91551-80820

MXGA10,ZSG10,ZVG10..BZP,TWP

 4
53415 - BOLT, HOOD HINGE
91551-80820

MXGA10,ZSG10,ZVG10..BZP,TWP

 4
53415 - BOLT, HOOD HINGE
91551-80820

MXGA10,ZSG10,ZVG10..BZP,TWP

 4
53420 - HINGE ASSY, HOOD, LH
53420-0A080

ZSG10,ZVG10..TWP

TYPE C:REFER ILLUST.

 1
53420-0A070

ZSG10,ZVG10..TWP

TYPE B:REFER ILLUST.

 1
53420-0A060

ZSG10,ZVG10..TWP

TYPE A:REFER ILLUST.

 1
53440D - SUPPORT ASSY, HOOD
53440-0A020

ZSG10,ZVG10..TWP

 1
53452 - HOLDER, HOOD STAY
53452-15020

MXGA10,ZSG10,ZVG10

(J)

 1
53452-02380

ZSG10,ZVG10..TWP

(L)

 1
53510 - LOCK ASSY, HOOD
53510-0A050

ZSG10,ZVG10..GCC

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

MXGA10,ZSG10,ZVG10

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

ZSG10,ZVG10..LHD..(THP,TWP)

WD=1.8,CW=13

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-T0004

ZSG10,ZVG10..LHD..(THP,TWP)

WD=1.2,CW=8.5

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0D080C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
53601-0D080C0

ZSG10..G..GCC;ZVG10..E..GCC

BLACK,TRIM0#,2#,3#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
53614-16020

MXGA10,ZSG10,ZVG10..LHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0A050

ZSG10,ZVG10..TWP

 1
Common parts
90119-06A15
Linked diagrams
8202
