ZSG10L-EHXGKV (2020)
Toyota Corolla Cross
Production
Oct 2020
-
Sep 9999
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )ZSG10..TWP

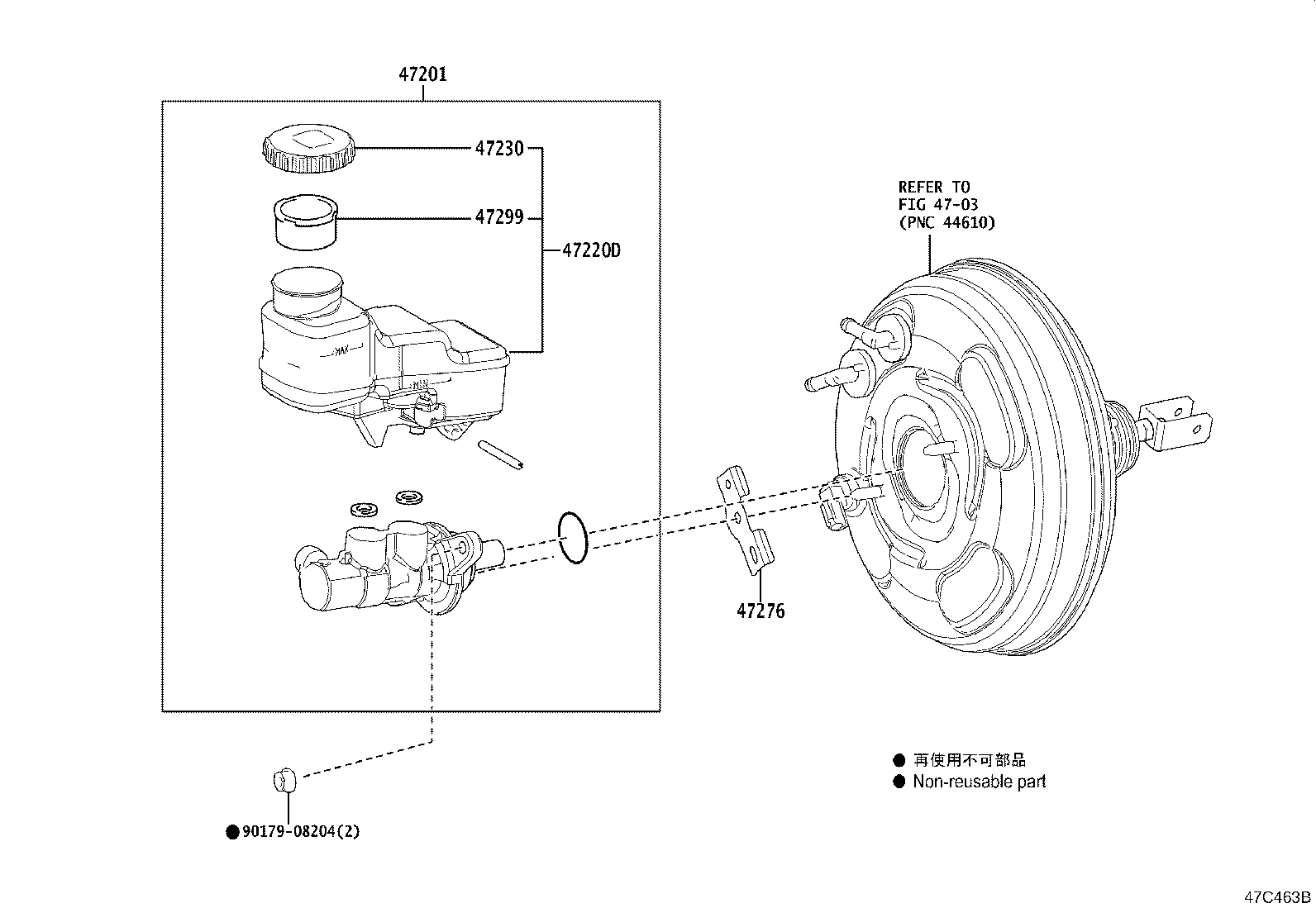

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-0A090 |
ZSG10..TWP |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-02430 |
ZSG10..TWP |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
MXGA10,ZSG10 |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-02020 |
ZSG10..TWP |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
ZSG10 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
