ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )ZSG10..LHD

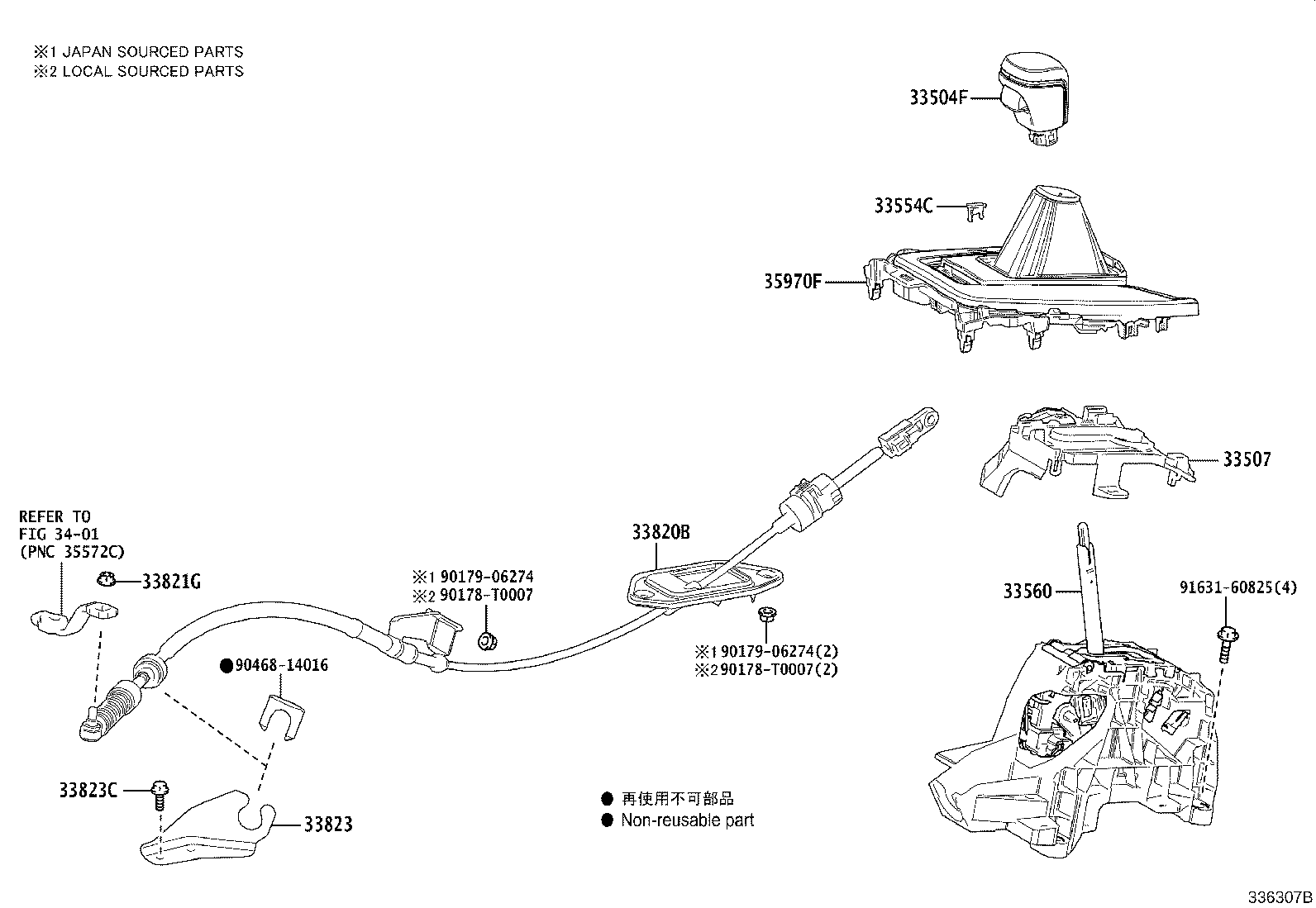

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33820B 33821G 33823 33823C 3401 35970F 90178T0007 90178T0007 9017906274 9017906274 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02860C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
33504-02860C0

ZSG10..G..GCC;ZVG10..E..GCC

BLACK,TRIM0#,2#,3#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02050

ZSG10,ZVG10..TWP

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33502-02170

ZSG10,ZVG10..TWP

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-02550

ZSG10..TWP..(G,M,N)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0A090

ZSG10..TWP

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-T0019

ZSG10,ZVG10..BZP,TWP

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-02360

ZSG10..TWP

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-T0102

MXGA10,ZSG10,ZVG10..BZP,TWP

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02360C1

ZSG10..G..GCC

BLACK/SILVER,TRIM0#,2#,3#

 1
Common parts
90178-T0007
90179-06274
90468-14016
91631-60825
Linked diagrams
3401
