ZSG10L-EHXGKV (2020)
Toyota Corolla Cross

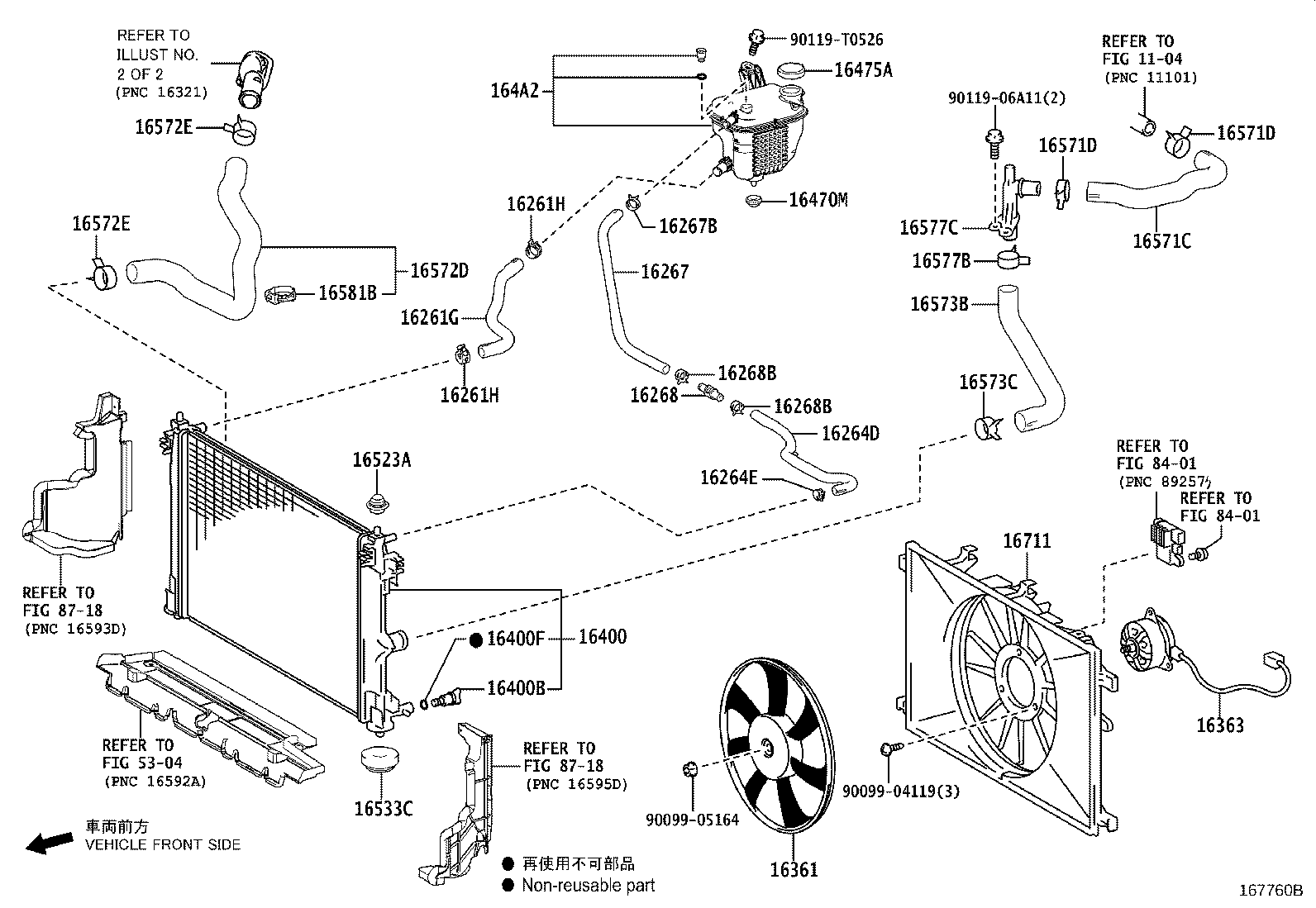

ILLUST NO. 1 OF 2(2010- )2ZRFE..TWP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0T340 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96138-42501 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..BZP,TWP |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96138-42501 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..BZP,TWP |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0T300 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T270 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42101 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-F2080 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96136-41901 |
2ZRFBE,2ZRFE..ZSG10 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96136-41901 |
2ZRFBE,2ZRFE..ZSG10 |
2 | ||
| 16361 - FAN | ||||
| 16361-0T320 |
2ZRFE..ZSG10..GCC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-37130 |
2ZRFE..ZSG10..GCC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0T460 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
2ZRFXE..ZVG10..TWP;2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 164A2 - TANK, RESERVE SEALED W/O CAP | ||||
| 164A2-0T070 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T120 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
2ZR#..ZSG10,ZVG10 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T370 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2ZRFBE,2ZRFE..ZSG10 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2ZRFBE,2ZRFE..ZSG10 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T300 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T210 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 96136-43901 |
2ZR#..ZSG10,ZVG10..THP,TWP |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0T200 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-36030 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0T240 |
2ZRFE..ZSG10..TWP |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06A11 | ||||
| 90119-T0526 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 5304 | ||||
| 8401 | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(2010- )2ZRFE..TWP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12512C - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-37010 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-37180 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96136-52201 |
2ZRFE..ZSG10..TWP TYPE B |
3 | ||
| 96136-42201 |
2ZRFE..ZSG10..TWP TYPE A |
3 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96136-52201 |
2ZRFE..ZSG10..TWP TYPE B |
3 | ||
| 96136-42201 |
2ZRFE..ZSG10..TWP TYPE A |
3 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96136-52201 |
2ZRFE..ZSG10..TWP TYPE B |
3 | ||
| 96136-42201 |
2ZRFE..ZSG10..TWP TYPE A |
3 | ||
| 16260B - PIPE ASSY, WATER BY-PASS | ||||
| 16260-0T180 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0T260 |
2ZRFBE,2ZRFE..ZSG10 (L) |
1 | ||
| 16261-37200 |
2ZRFBE,2ZRFE..ZSG10 (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0059 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 96137-41501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0059 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 96137-41501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2ZRFBE,2ZRFE..ZSG10 (J),NO.2 |
1 | ||
| 96138-42501 |
2ZRFBE,2ZRFE..ZSG10 NO.1 |
1 | ||
| 90466-T0020 |
2ZRFBE,2ZRFE..ZSG10 (L),NO.2 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2ZRFBE,2ZRFE..ZSG10 (J),NO.2 |
1 | ||
| 96138-42501 |
2ZRFBE,2ZRFE..ZSG10 NO.1 |
1 | ||
| 90466-T0020 |
2ZRFBE,2ZRFE..ZSG10 (L),NO.2 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37210 |
2ZRFBE,2ZRFE..ZSG10 (J) |
1 | ||
| 16264-0T210 |
2ZRFBE,2ZRFE..ZSG10 (L) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0059 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0059 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0020 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0020 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T040 |
2ZRFBE,2ZRFE..ZSG10 (L) |
1 | ||
| 16267-37010 |
2ZRFBE,2ZRFE..ZSG10 (J) |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-37021 |
2ZRFBE,2ZRFE..ZSG10 (J) |
1 | ||
| 16268-0T130 |
2ZRFBE,2ZRFE..ZSG10 (L) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0T060 |
2ZRFBE,2ZRFE..ZSG10 (L) |
1 | ||
| 16321-37010 |
2ZRFBE,2ZRFE..ZSG10 (J) |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0T100 |
2ZRFBE,2ZRFE..ZSG10 (L),MADE IN THAILAND |
1 | ||
| 16323-37040 |
2ZRFBE,2ZRFE..ZSG10 (J) |
1 | ||
| 16323-0T090 |
2ZRFBE,2ZRFE..ZSG10 (L),MADE IN EUROPE |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0H020 |
2ZRFBE,2ZRFE..ZSG10 MADE IN THAILAND |
1 | ||
| 16325-28010 |
2ZRFBE,2ZRFE..ZSG10 MADE IN JAPAN |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37030 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03151 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90949-01C99 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-0T060 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37130 |
2ZRFE..ZSG10..TWP |
1 | ||
| 16581W - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
2ZRFE..ZSG10..TWP |
1 | ||
| 87245W - HOSE, WATER | ||||
| 87245-02S30 |
ZSG10..TWP |
1 | ||
| 87246J - CLAMP(FOR WATER HOSE) | ||||
| 96138-42501 |
ZSG10 |
1 | ||
| 87248R - PIPE, WATER | ||||
| 87248-12330 |
ZSG10 |
1 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 91551-80625 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3401 | ||||
| 8716 | ||||
