ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZRFBE,2ZRFE

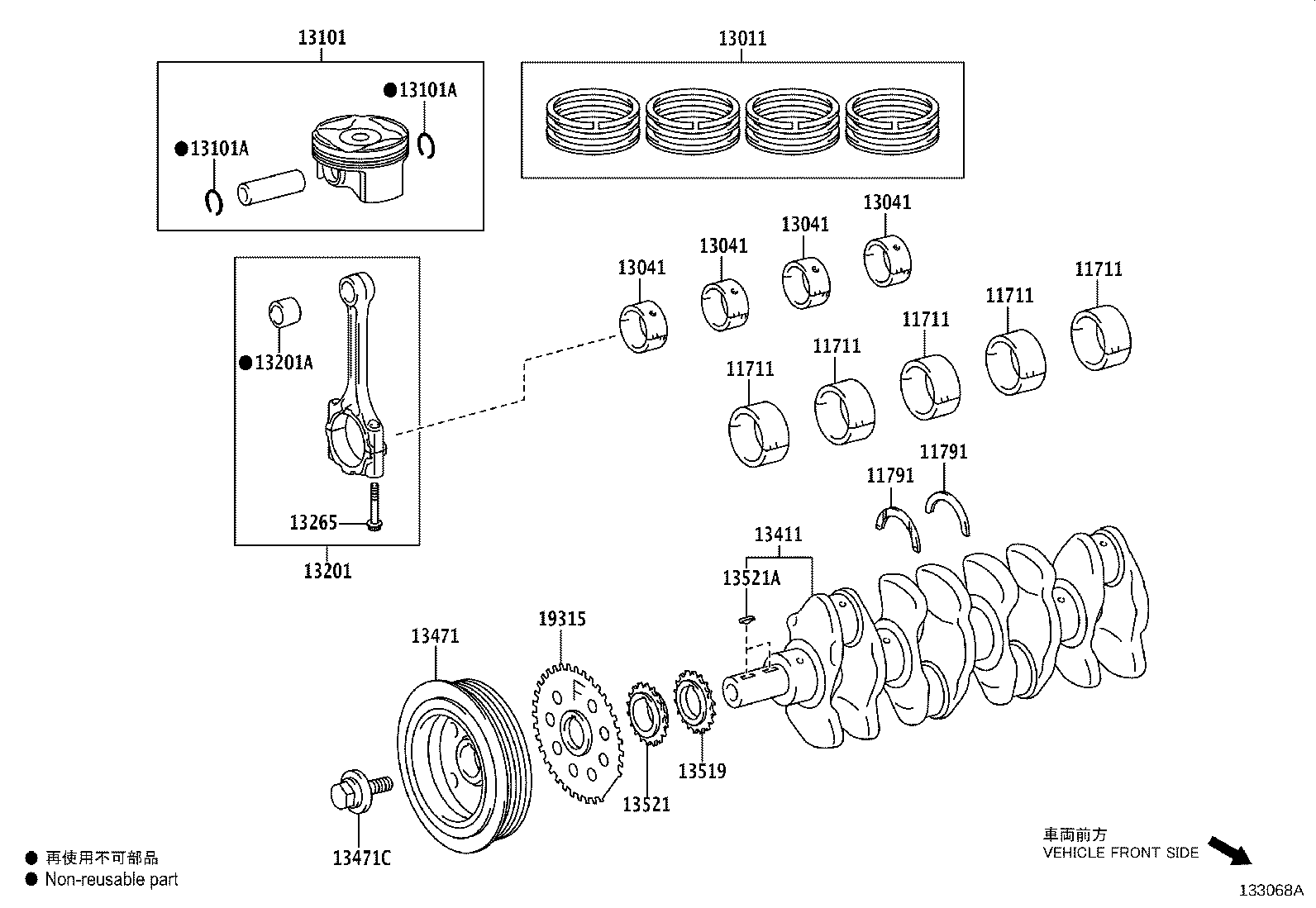

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13411 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-0T04102

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 5
11701-3702101

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 5
11701-0T04103

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 5
11701-3702102

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 5
11701-3702103

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 5
11701-3702104

2ZRFBE,2ZRFE..ZSG10

MARK4,(J),REFER R/M

 5
11701-0T04101

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 5
11701-0T04104

2ZRFBE,2ZRFE..ZSG10

MARK4,(L),REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-0T04102

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 5
11701-3702101

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 5
11701-0T04103

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 5
11701-3702102

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 5
11701-3702103

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 5
11701-3702104

2ZRFBE,2ZRFE..ZSG10

MARK4,(J),REFER R/M

 5
11701-0T04101

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 5
11701-0T04104

2ZRFBE,2ZRFE..ZSG10

MARK4,(L),REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-0T04102

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 5
11701-3702101

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 5
11701-0T04103

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 5
11701-3702102

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 5
11701-3702103

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 5
11701-3702104

2ZRFBE,2ZRFE..ZSG10

MARK4,(J),REFER R/M

 5
11701-0T04101

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 5
11701-0T04104

2ZRFBE,2ZRFE..ZSG10

MARK4,(L),REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-0T04102

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 5
11701-3702101

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 5
11701-0T04103

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 5
11701-3702102

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 5
11701-3702103

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 5
11701-3702104

2ZRFBE,2ZRFE..ZSG10

MARK4,(J),REFER R/M

 5
11701-0T04101

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 5
11701-0T04104

2ZRFBE,2ZRFE..ZSG10

MARK4,(L),REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-0T04102

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 5
11701-3702101

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 5
11701-0T04103

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 5
11701-3702102

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 5
11701-3702103

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 5
11701-3702104

2ZRFBE,2ZRFE..ZSG10

MARK4,(J),REFER R/M

 5
11701-0T04101

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 5
11701-0T04104

2ZRFBE,2ZRFE..ZSG10

MARK4,(L),REFER R/M

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-0M020

2ZRFBE,2ZRFE..ZSG10

STD,(L)

 2
11791-22020

2ZRFBE,2ZRFE..ZSG10

STD,(J)

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-0M020

2ZRFBE,2ZRFE..ZSG10

STD,(L)

 2
11791-22020

2ZRFBE,2ZRFE..ZSG10

STD,(J)

 2
13011 - RING SET, PISTON
13011-0T180

2ZRFBE,2ZRFE..ZSG10..GCC,GEN,PH,TH

STD,MADE IN INDONESIA

 1
13011-37290

2ZRFBE,2ZRFE..ZSG10..GCC,GEN,PH,TH

STD,MADE IN JAPAN

 1
13041 - BEARING, CONNECTING ROD
13041-0T05002

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 4
13041-0T05001

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 4
13041-3701002

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 4
13041-0T05003

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 4
13041-3701003

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 4
13041-3701001

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0T05002

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 4
13041-0T05001

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 4
13041-3701002

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 4
13041-0T05003

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 4
13041-3701003

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 4
13041-3701001

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0T05002

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 4
13041-0T05001

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 4
13041-3701002

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 4
13041-0T05003

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 4
13041-3701003

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 4
13041-3701001

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0T05002

2ZRFBE,2ZRFE..ZSG10

MARK2,(L),REFER R/M

 4
13041-0T05001

2ZRFBE,2ZRFE..ZSG10

MARK1,(L),REFER R/M

 4
13041-3701002

2ZRFBE,2ZRFE..ZSG10

MARK2,(J),REFER R/M

 4
13041-0T05003

2ZRFBE,2ZRFE..ZSG10

MARK3,(L),REFER R/M

 4
13041-3701003

2ZRFBE,2ZRFE..ZSG10

MARK3,(J),REFER R/M

 4
13041-3701001

2ZRFBE,2ZRFE..ZSG10

MARK1,(J),REFER R/M

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-0T151

2ZRFBE,2ZRFE..ZSG10..GCC,GEN,PH,TH

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZR#..ZSG10,ZVG10

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZR#..ZSG10,ZVG10

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-09B40

2ZRFBE,2ZRFE..ZSG10

(L)

 4
13201-39185

2ZRFBE,2ZRFE..ZSG10

(J)

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

2ZR#..ZSG10,ZVG10

 4
13265 - BOLT, CONNECTING ROD
13265-22040

2ZR#..ZSG10,ZVG10

 8
13411 - CRANKSHAFT
13401-0T071

2ZR#..ZSG10,ZVG10..THP,TWP

(L)

 1
13401-37021

2ZR#..ZSG10,ZVG10

(J)

 1
13471 - PULLEY, CRANKSHAFT
13470-0T050

2ZRFBE,2ZRFE..ZSG10

(L)

 1
13470-37042

2ZRFBE,2ZRFE..ZSG10

(J)

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-T0444

2ZR#..ZSG10,ZVG10..THP,TWP

(L)

 1
90119-14106

2ZR#..ZSG10,ZVG10..THP,TWP

(J)

 1
13519 - GEAR, OIL PUMP DRIVE
13519-0T020

2ZR#..ZSG10,ZVG10..THP,TWP

(L)

 1
13519-37010

2ZR#..ZSG10,ZVG10..THP,TWP

(J)

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-0T050

2ZR#..ZSG10,ZVG10..THP,TWP

(L)

 1
13521-37011

2ZR#..ZSG10,ZVG10..THP,TWP

(J)

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

2ZR#..ZSG10,ZVG10

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-0T040

2ZR#..ZSG10,ZVG10..THP,TWP

(L)

 1
19315-37020

2ZR#..ZSG10,ZVG10..THP,TWP

(J)

 1
