ZSG10L-EHXGKV (2020)

Toyota Corolla Cross

Production Oct 2020 - Sep 9999
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZRFBE,2ZRFE

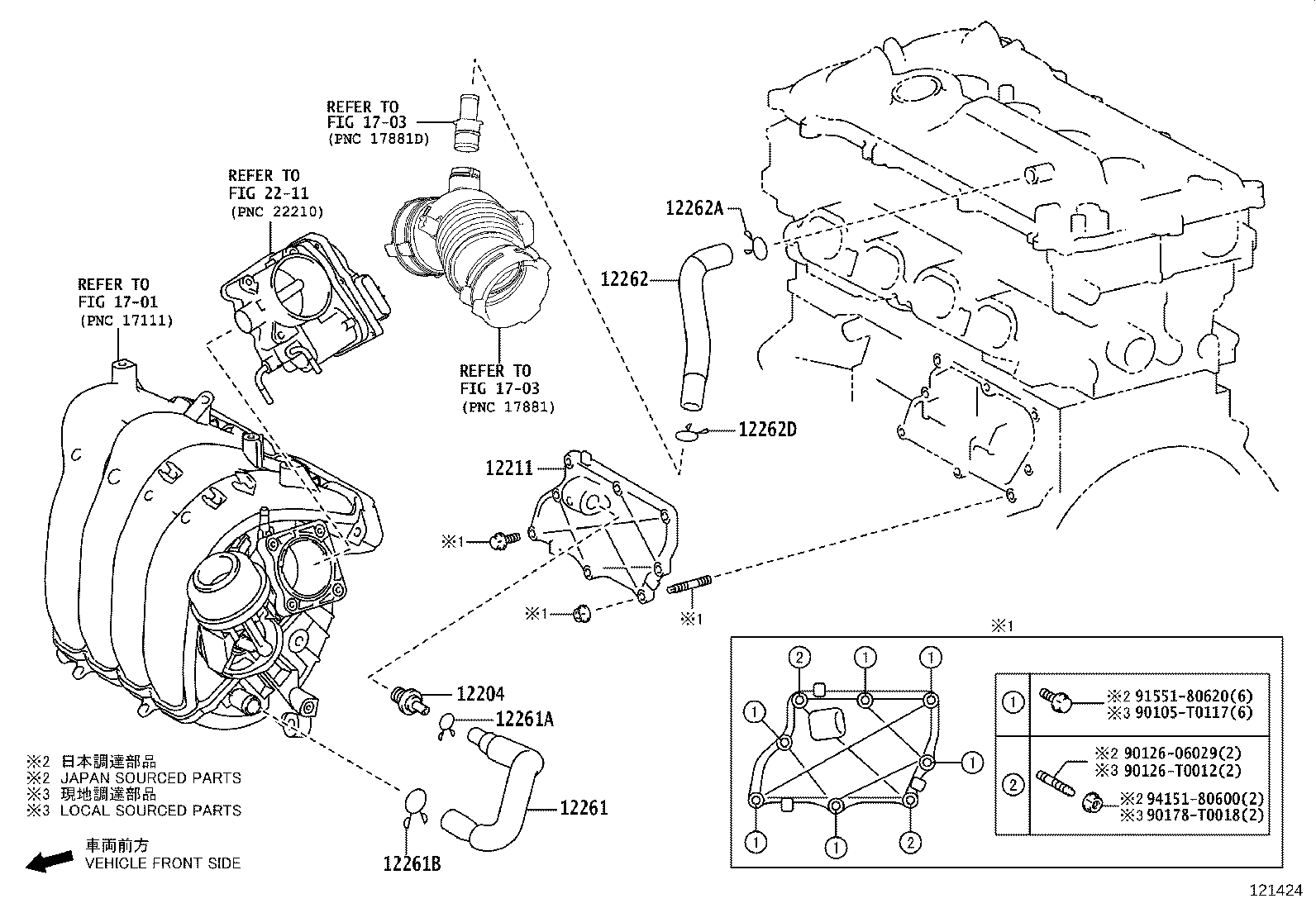

Click highlighted areas on diagram

diagram 12204 12211 12261 12261A 12261B 12262 12262A 12262D 1701 1703 1703 2211 90105T0117 9012606029 90126T0012 90178T0018 9155180620 9415180600
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-37040

2ZRFBE,2ZRFE..ZSG10..GCC,GEN,PH,TH

 1
12211 - CASE, VENTILATION, NO.1
12211-0T040

2ZR#..ZSG10,ZVG10..THP,TWP

(L)

 1
12211-37010

2ZR#..ZSG10,ZVG10..THP,TWP

(J)

 1
12261 - HOSE, VENTILATION
12261-37090

2ZRFBE,2ZRFE..ZSG10

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2ZR#..ZSG10,ZVG10

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90466-T0032

2ZRFBE,2ZRFE..ZSG10

(L)

 1
90467-23002

2ZRFBE,2ZRFE..ZSG10

(J)

 1
12262 - HOSE, VENTILATION, NO.2
12262-37070

2ZRFBE,2ZRFE..ZSG10

 1
12262-37071

2ZRFBE,2ZRFE..ZSG10

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-T0027

2ZR#..ZSG10,ZVG10..THP,TWP

(L)

 1
90467-21004

2ZR#..ZSG10,ZVG10..THP,TWP

(J)

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90466-T0027

2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP

(L)

 1
90467-21004

2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP

(J)

 1
Common parts
90105-T0117
90126-06029
90126-T0012
90178-T0018
91551-80620
94151-80600
Linked diagrams
1701
1703
2211
