ZSG10L-EHXGKV (2020)
Toyota Corolla Cross
Production
Oct 2020
-
Sep 9999
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2010- )2ZRFE..TWP

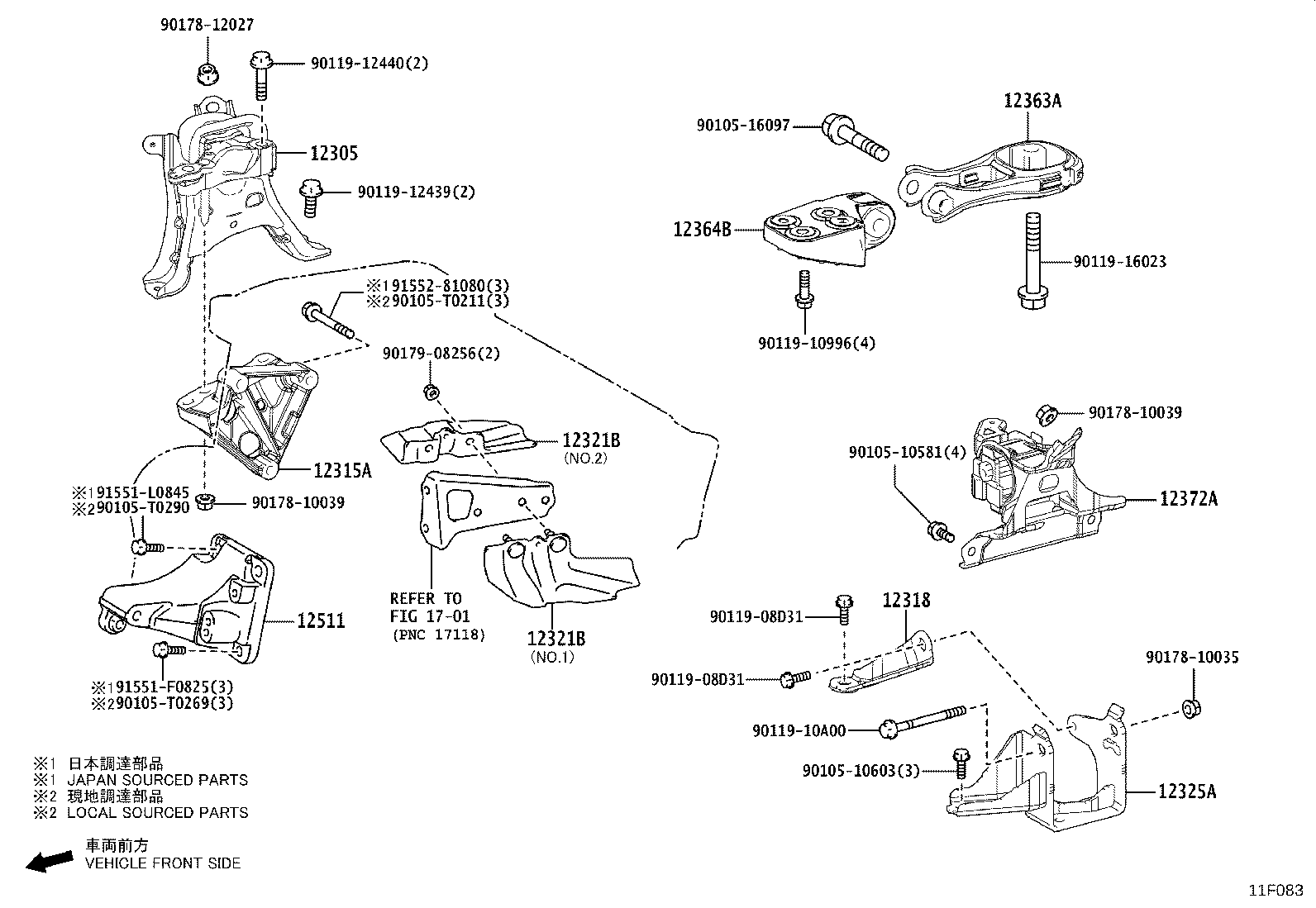

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T430 |
2ZRFE..ZSG10..TWP |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37060 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-0T060 |
2ZRFE..ZSG10..TWP |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-02200 |
2ZRFE..ZSG10..TWP NO.2 |
1 | ||
| 43409-02110 |
2ZRFE..ZSG10..TWP NO.1 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-02200 |
2ZRFE..ZSG10..TWP NO.2 |
1 | ||
| 43409-02110 |
2ZRFE..ZSG10..TWP NO.1 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T540 |
2ZRFE..ZSG10..TWP |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0T110 |
2ZRFE..ZSG10..TWP |
1 | ||
| 12364B - ROD, ENGINE MOVING CONTROL, NO.2 | ||||
| 12364-0T150 |
2ZRFE,2ZRFXE..ZSG10,ZVG10..TWP |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T630 |
2ZRFBE,2ZRFE..ZSG10 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-0T020 |
2ZRFBE,2ZRFE..ZSG10 (L) |
1 | ||
| 12501-37020 |
2ZRFBE,2ZRFE..ZSG10 (J) |
1 | ||
| Common parts | ||||
| 90105-10581 | ||||
| 90105-10603 | ||||
| 90105-16097 | ||||
| 90105-T0211 | ||||
| 90105-T0269 | ||||
| 90105-T0290 | ||||
| 90119-08D31 | ||||
| 90119-10996 | ||||
| 90119-10A00 | ||||
| 90119-12439 | ||||
| 90119-12440 | ||||
| 90119-16023 | ||||
| 90178-10035 | ||||
| 90178-10039 | ||||
| 90178-12027 | ||||
| 90179-08256 | ||||
| 91551-F0825 | ||||
| 91551-L0845 | ||||
| 91552-81080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
