MXGA10L-GHXGHH (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine M20AFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

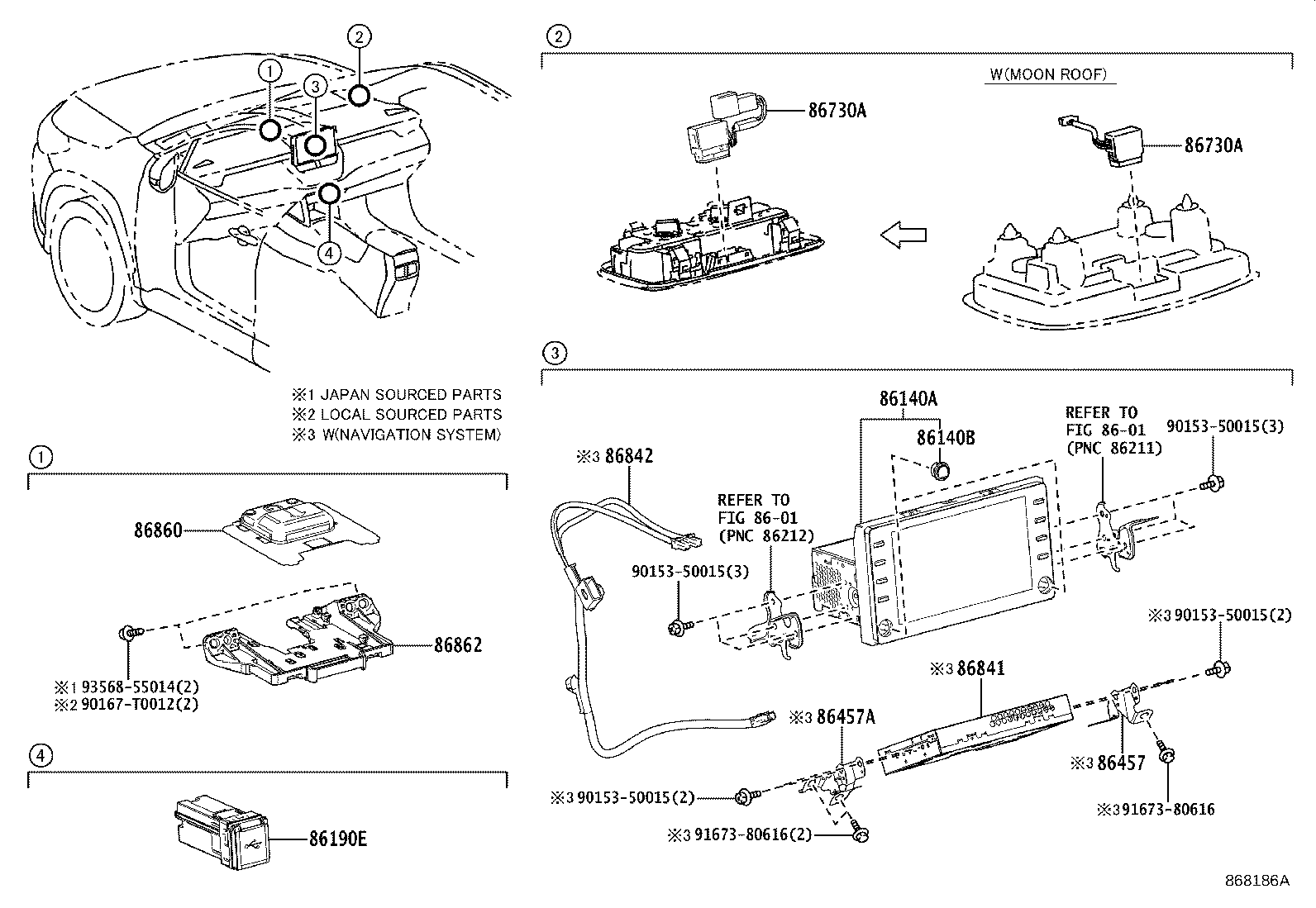

Click highlighted areas on diagram

diagram 8601 8601 86140A 86140B 86190E 86457 86457A 86730A 86730A 86841 86842 86860 86862 9015350015 9015350015 9015350015 9015350015 90167T0012 9167380616 9167380616 9356855014
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-0A100

ZVG10..AGT;MXGA10..E..AGT

PIONEER

 1
86140-0A070

MXGA10,ZVG10..BZ

PIONEER

 1
86140-0A090

MXGA10..G..AGT;MXGA10..E..GEN;ZVG10..BZP..GEN

PIONEER

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22129

ZVG10..BZP;MXGA10..AGT,BZ;MXGA10..E..GEN

 2
86190E - ADAPTER ASSY, STEREO JACK
86190-52070

MXGA10..G..(AGT,BZ);MXGA10..E..(BZ,GEN);ZVG10..BZP..(BZ,GEN)

 1
86190-12061

ZVG10..AGT;MXGA10..E..AGT

 1
86457 - BRACKET, MULTI-MEDIA MODULE NO.1
86457-02070

ZVG10..AGT;MXGA10..E..AGT

 1
86457A - BRACKET, MULTI-MEDIA MODULE NO.2
86457-02080

ZVG10..AGT;MXGA10..E..AGT

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-52020

ZVG10..AGT;MXGA10..E..(BZ,GEN);MXGA10..G..(AGT,BZ);ZSG10..RHD..(G,N)..GEN;ZVG10..(G,N)..(BZ,GEN)

 1
86730-47040

MXGA10..E..AGT;ZSG10,ZVG10..LHD..E..(BZ,GEN)

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-52020

ZVG10..AGT;MXGA10..E..(BZ,GEN);MXGA10..G..(AGT,BZ);ZSG10..RHD..(G,N)..GEN;ZVG10..(G,N)..(BZ,GEN)

 1
86730-47040

MXGA10..E..AGT;ZSG10,ZVG10..LHD..E..(BZ,GEN)

 1
86841 - COMPUTER, NAVIGATION
86840-02031

ZVG10..AGT;MXGA10..E..AGT

 1
86842 - WIRE, NAVIGATION, NO.1
86842-12030

ZVG10..AGT;MXGA10..E..AGT

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-78010

ZVG10..BZP;MXGA10..AGT,BZ;MXGA10..E..GEN

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-42010

MXGA10..AGT,BZ;MXGA10..E..GEN;ZSG10,ZVG10..(E,G)..(AGT,BZ,GEN,PH)

 1
Common parts
90153-50015
90167-T0012
91673-80616
93568-55014
Linked diagrams
8601
